Description

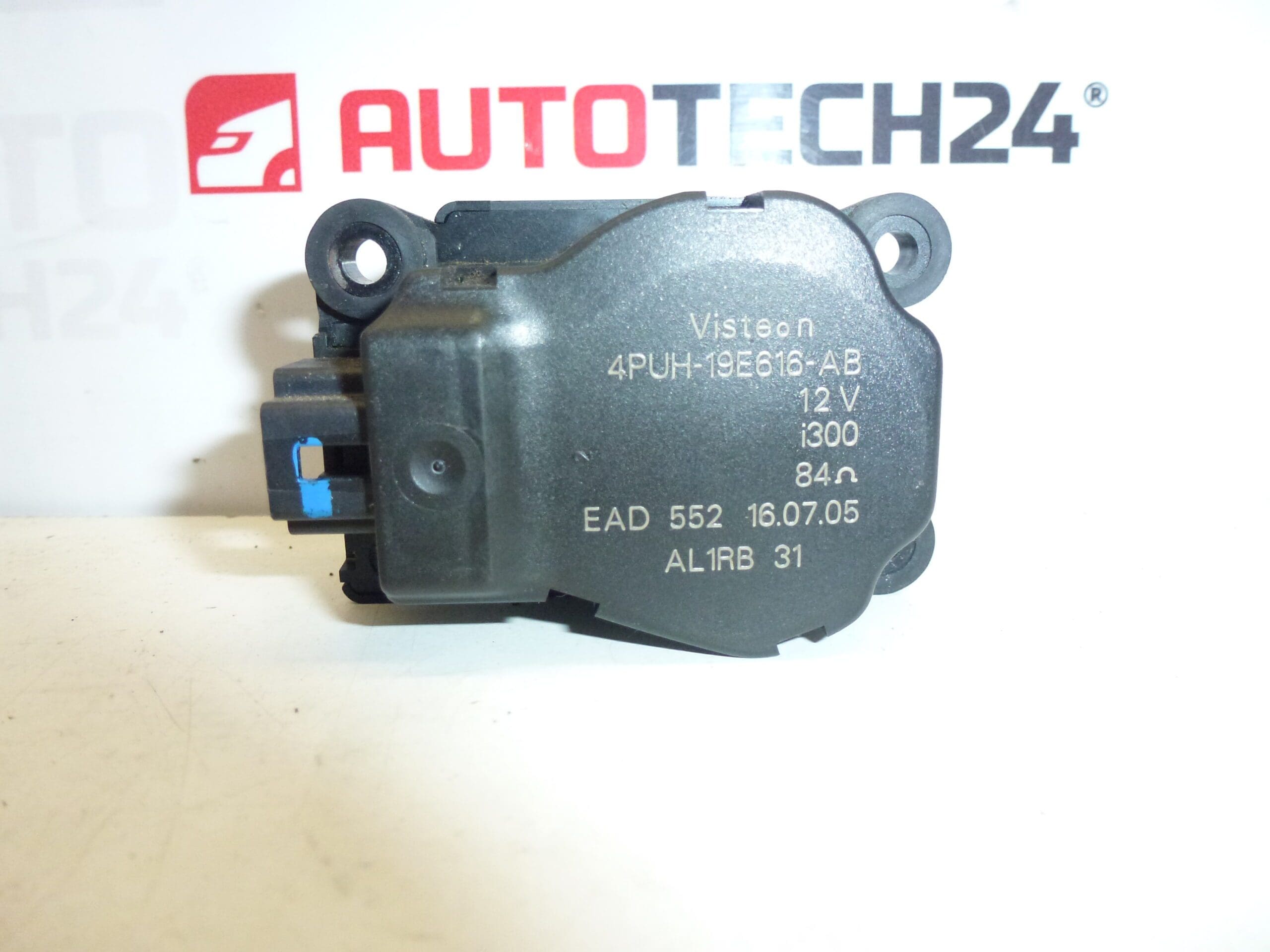

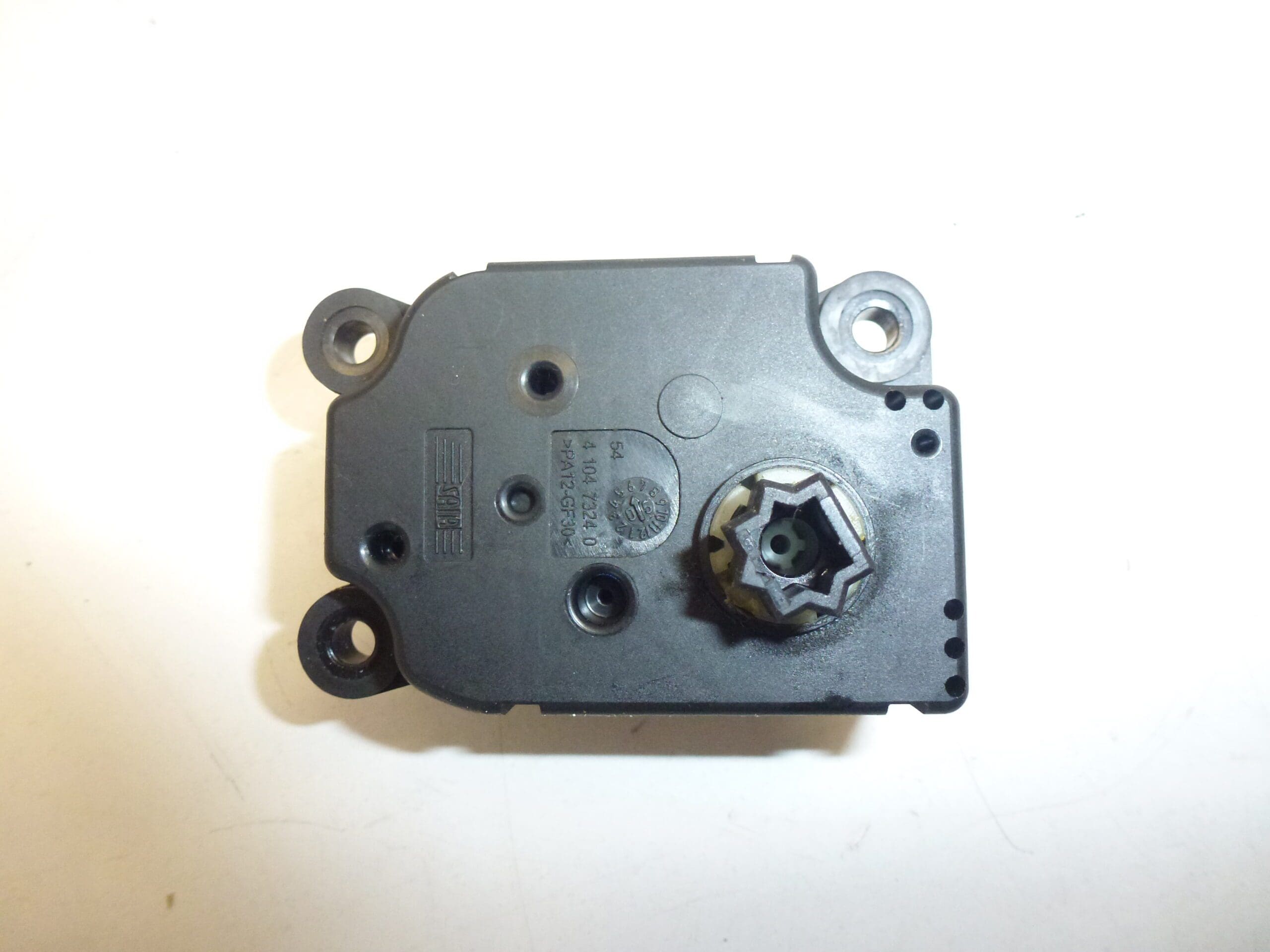

Heater servo motor CITROËN C5 C6 PEUGEOT 407 607
This heater servo motor is a direct-fit climate control actuator designed for Citroën C5 (II), C6 and Peugeot 407, 607 models. Frequently searched by part numbers such as 4puh-19e616-ab, 4puh-19e616-ac, EAD 552 or 6447RJ, this unit controls airflow distribution and blend door positioning inside the HVAC box. Ideal for professional workshops and experienced DIYers who need a reliable replacement part to restore correct heating and ventilation functions.
Function And Application
The servo motor operates the blend/air distribution flaps in the heater box, allowing the HVAC system to direct air to the windshield, face vents or footwell and to mix hot and cold air for temperature control. A faulty actuator typically causes incorrect airflow routing, inability to change temperature, or audible clicking/struggling noises from the dashboard. This unit is compatible with many Stellantis HVAC systems fitted to Citroën C5 II, C6 and Peugeot 407, 607 vehicles; customers often search by the part code for quick identification.
Replacement Procedure
- Access: In most cases the actuator is mounted on the heater box behind the glovebox or lower dash. Remove the glovebox or relevant lower trim panels to reach the unit.
- Disconnect: Before starting, isolate the vehicle electrical system. Disconnect the battery negative terminal to prevent short circuits during work.
- Unplug and Remove: Unplug the electrical connector, remove retaining screws and detach the servo from the heater box. Note the position of the actuator and any indexing tabs.
- Fitment: Install the replacement unit in the same orientation, secure with screws and reconnect the wiring harness.
- Test: Reconnect the battery, cycle the HVAC system through all modes to verify smooth flap movement and correct temperature distribution. Listen for abnormal noise and check for any dashboard HVAC fault codes.
Technical Information
- Manufacturer: Stellantis (Citroën / Peugeot)
- Model: Citroën C5 II, Citroën C6, Peugeot 407, Peugeot 607
- Product Codes: 4puh-19e616-ab, 4puh-19e616-ac
- Other Numbers: EAD 552, 6447RJ
Installation Recommendations
- Disconnect the battery before starting work to avoid electrical damage and accidental short circuits.
- Handle the actuator gears and flap linkage gently; many HVAC components use plastic gears that can be damaged by force.
- Before full reassembly, test the actuator operation and HVAC cycle to ensure correct movement and eliminate the need for repeated disassembly.
- Inspect connector pins and wiring for corrosion or damage. A poor electrical connection can mimic actuator failure.
- If uncertain about access or calibration, consider installation by a workshop with experience on Citroën/Peugeot HVAC systems.
Why This Part Fails Most Often
Common failure modes include worn or stripped plastic gears in the actuator gearbox, motor wear after prolonged service, and contamination from moisture or dust that leads to seizure or increased mechanical resistance. Electrical issues such as corroded connectors or intermittent wiring can also prevent correct operation. Symptoms usually include continuous clicking noises from the dash, inability to change airflow direction or temperature, and inconsistent climate control behavior.
Notes For Professionals And DIYers
Technicians and experienced DIYers will appreciate that these actuators are commonly identified by the part numbers listed above, which speeds up sourcing and diagnostics. When diagnosing HVAC faults, always check fuses, wiring and mechanical linkage in addition to the actuator itself to avoid unnecessary replacement.
