Description

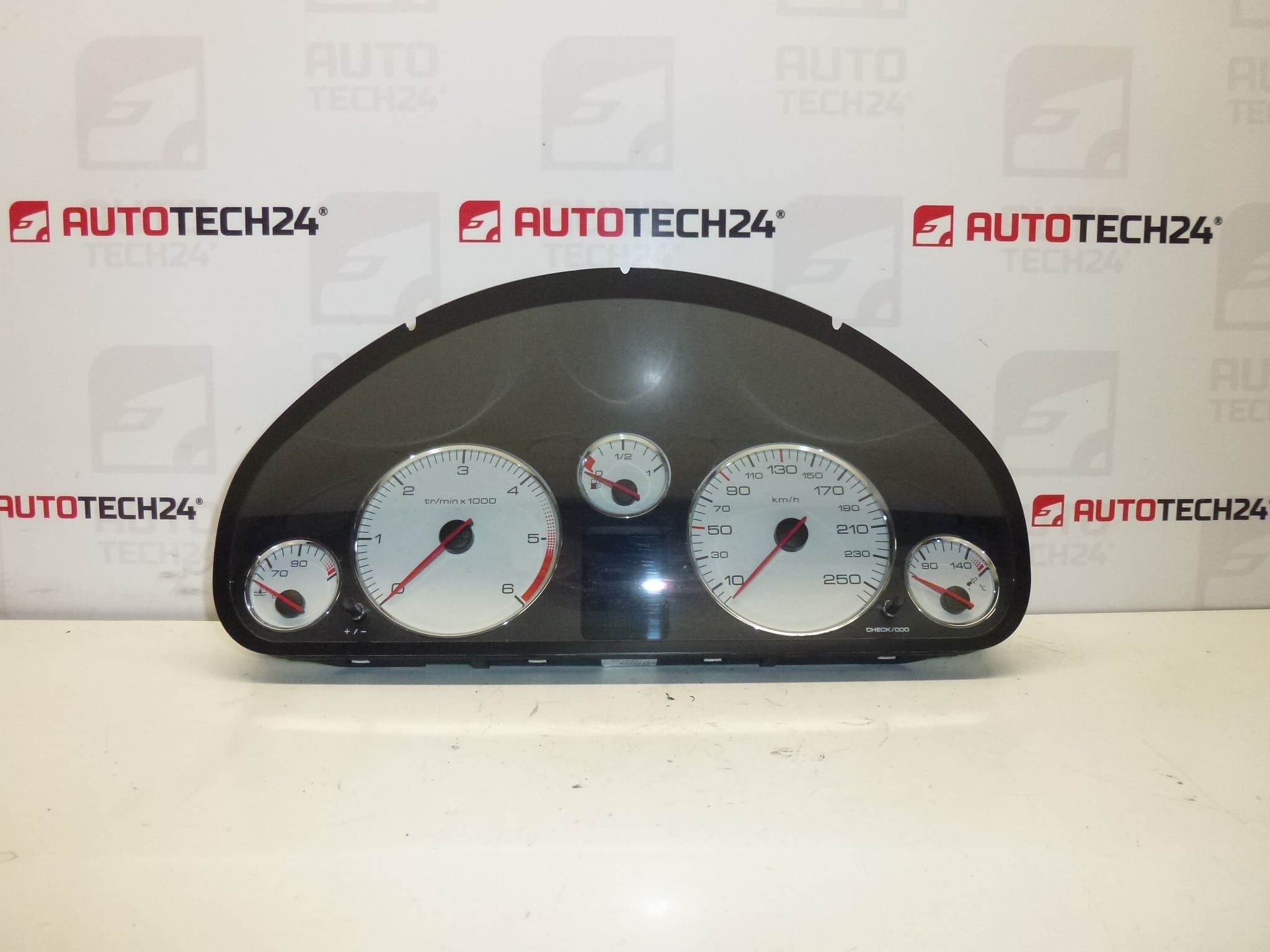

Speedometer, Instrument Cluster, Dashboard For PEUGEOT 407 2.0 HDi 2007. Mileage Approx. 250,000 km. Display Functions OK.
This used speedometer instrument cluster is a direct-fit unit for Peugeot 407 2.0 HDi (2007) and is listed under common OEM references. It delivers clear analogue gauges with a functioning display and is ideal for professional workshops and experienced DIY mechanics who need a reliable replacement part. Keywords: Peugeot 407 speedometer, instrument cluster, 9658138580, 610395, 6106W8, 610396.
Technical Information
- Manufacturer: Stellantis (Citroën / Peugeot)
- Model: Peugeot 407 2.0 HDi (2007)
- Product Codes: 9658138580, 610395
- Additional Numbers: 6106W8, 610396
- Condition Notes: Used Unit — Mileage Approximately 250,000 km
- Display: Functions OK
Fitment
Designed for Peugeot 407 with 2.0 HDi engine, year 2007. Ensure the part numbers match the vehicle’s instrument cluster reference before installation.
Function And Purpose
The instrument cluster provides essential driver information: vehicle speed, engine RPM, fuel level, coolant temperature, warning lamps and a multifunction display for trip and odometer data. A fully functioning cluster is critical for safe vehicle operation and accurate mileage recording.
How To Replace
- Prepare Tools: Trim tools, Torx/Phillips screwdrivers and a diagnostic interface if coding is required.
- Safety First: Disconnect the negative battery terminal to prevent electrical shorts and preserve vehicle electronics.
- Remove Trim: Carefully pry off the instrument hood and surrounding trim panels to access mounting screws.
- Unscrew Cluster: Remove the retaining screws, pull the cluster forward and disconnect the electrical connectors.
- Install Unit: Plug in the replacement cluster, secure with screws, reassemble trim and reconnect the battery.
- Final Steps: Verify gauge operation and warning lights. Some vehicles may require instrument coding or synchronization with vehicle electronics using a diagnostic tool to ensure correct immobilizer and trip data.
Installation Recommendations
- Perform Removal On A Stable Surface: Work in dry, well-lit conditions to avoid damaging fragile plastic trim or display lenses.
- Protect Electrical Connectors: Inspect and clean connector pins before installation to ensure good contact.
- Use Proper Tools: Plastic trim tools reduce the risk of scratching dash surfaces. Avoid excessive force when disengaging clips.
- Consider Professional Coding: If instrument messages, immobilizer or mileage functions are not correct after fitment, have the cluster coded by a qualified technician using dealer-level or compatible diagnostic equipment.
Why This Part Commonly Fails
Instrument clusters often develop faults due to a combination of age, mileage and environmental factors. Common failure causes include worn stepper motors for analogue needles, fading or pixel loss in LCD elements, backlight degradation, solder joint cracks from thermal cycling, moisture ingress and corroded electrical connectors. High mileage units (such as ~250,000 km) are more likely to show wear in mechanical and electronic components.
Expected Lifespan And Maintenance
Lifespan Depends On Usage And Environment. Instrument clusters can remain serviceable for many years but are more prone to issues after 150,000–300,000 km. To maximize longevity, keep the cabin dry, avoid prolonged electrical surges, and ensure the vehicle’s charging system is healthy to prevent voltage irregularities that stress electronic components.
Order this instrument cluster if you need a direct replacement for Peugeot 407 2.0 HDi (2007) with the listed part numbers. The unit is ready for installation by experienced mechanics or competent DIY enthusiasts with appropriate tools and diagnostic access where required.
