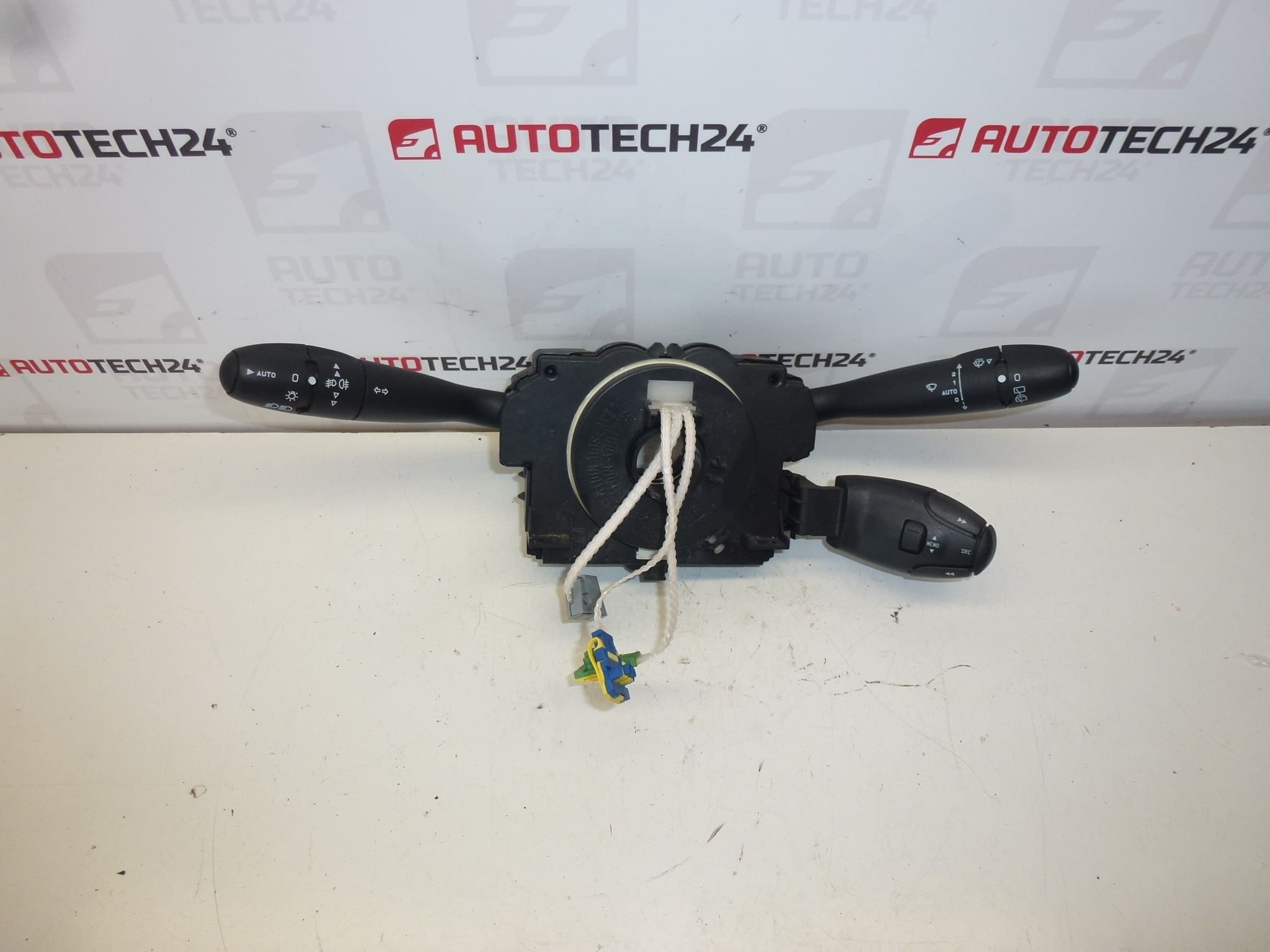

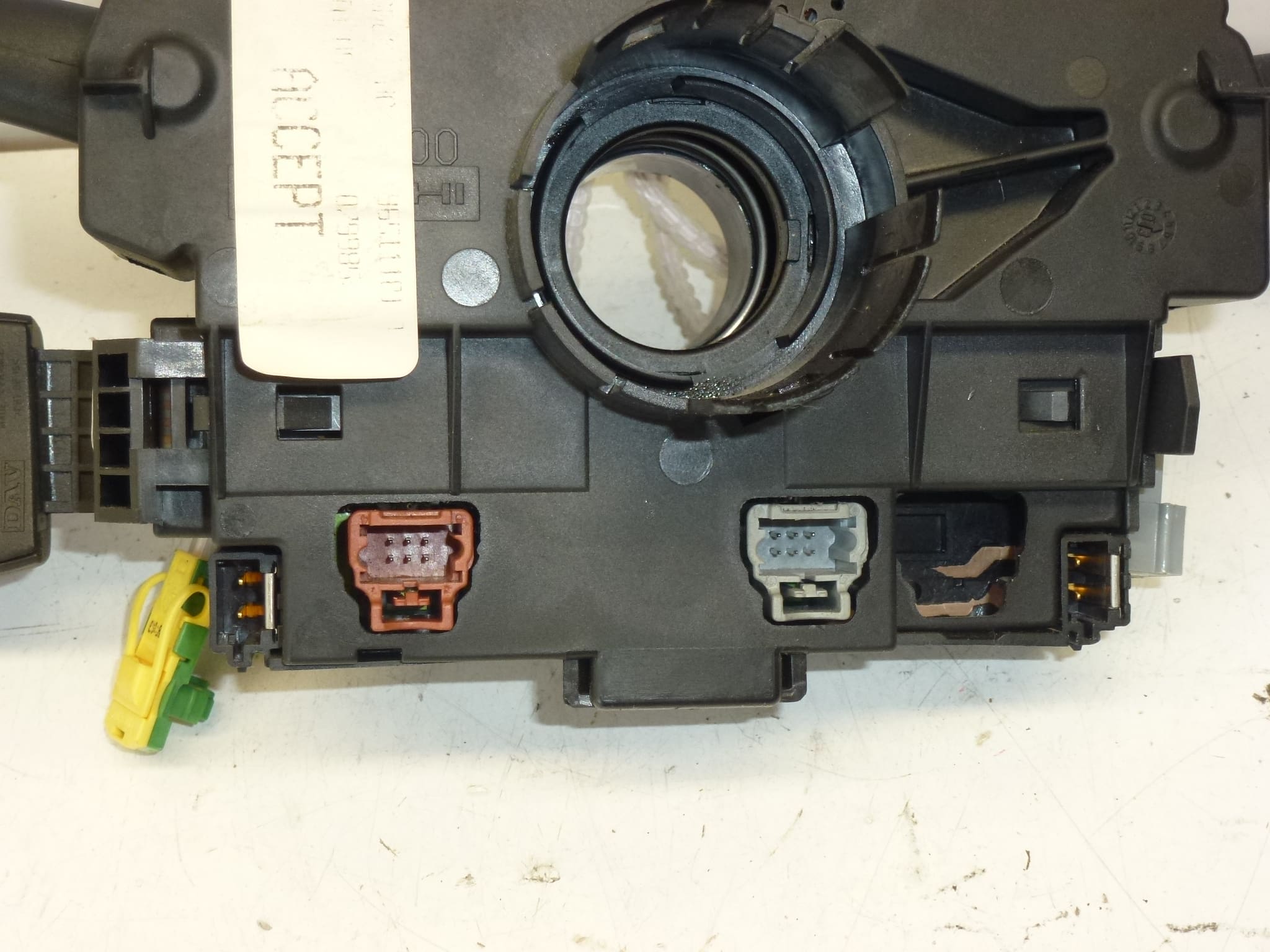

Steering Column Stalk Switches Citroën Peugeot 96511181XT 624265

Description

Delphi COM 2000 steering column stalk switches for PEUGEOT 206 vehicles. Multifunction control stalk block. Controls headlights, fog lights, cruise control and car radio (radio control unit must be supplied or transferred), front and rear wipers, and horn.

Product Description

Multifunction steering column stalk block designed for Peugeot 206 with Delphi COM2000 architecture. This compact assembly combines multiple vehicle controls into a single module: lighting (dipped/main beam), indicators, front and rear wipers (including intermittent functions), fog lights, horn and cruise control activation. Unit Is Sought By Mechanics And DIY Enthusiasts Under Various Part Numbers, So Including Correct Product Codes Improves Searchability And Fitment Confidence.

Benefits And Application

• All-In-One Design: Replaces several individual switches with a single multifunction unit for faster repairs.
• OEM Compatibility: Designed For PSA/Peugeot Electrical Systems Using Delphi COM2000 Interface.
• Time Saving For Workshops: Common spare in service bays for Peugeot 206 repairs; easy lookup by part number.
• Improved Driving Comfort: Restores proper operation of lights, wipers, horn and cruise control for safe and legal operation.

Technical Information

• Manufacturer: Delphi / Stellantis Compatible
• Model: Peugeot 206 (Compatible With Some PSA Models Using Delphi COM2000)
• Product Codes: 96511181XT, 96595073XT, 96477524XT, 96533567XT, 96605637XT
• Other Numbers: 624265, 6242E9, 6239Y3, 96446871ZL

Replacement Procedure (Overview)

Replacement Of The Steering Column Stalk Block Requires Caution With Airbag And Electrical Systems. Follow These General Steps:

1. Disconnect Battery: Always Disconnect The Negative Battery Terminal And Wait At Least 2 Minutes To Allow Airbag Systems To De-Energize.
2. Remove Steering Column Covers: Unscrew And Separate Upper And Lower Shrouds To Access The Stalk Assembly.
3. Airbag/Steering Wheel Removal (If Required): On Some Vehicles The Steering Wheel Must Be Removed To Access Retaining Fasteners. Follow Manufacturer Procedure For Airbag Removal And Safe Handling.
4. Unplug Electrical Connectors: Carefully Release All Retainer Clips And Unplug The Multiway Connectors From The Stalk Block.
5. Remove Fasteners: Unscrew Retaining Screws Or Release Clips Holding The Stalk Block To The Column.
6. Install New Unit: Fit The Replacement Unit, Reconnect Connectors, Reassemble Covers And Reconnect The Battery. Verify All Functions (Lights, Wipers, Indicators, Horn, Cruise Controls) Before Completing Reassembly.

Installation Recommendations

• Follow Manufacturer Torque And Safety Instructions When Removing Airbag Or Steering Components.
• Handle Connectors Carefully To Avoid Bent Pins; Use Correct Locking Clips.
• If Cruise Or Radio Controls Require A Separate Sub-Module, Transfer The Sub-Assembly From The Old Stalk Or Fit The Required Control Unit.
• Test All Functions Before Final Reassembly; Verify Indicator Cancel, Wiper Park, And Lighting Modes.
• When In Doubt Or When Airbag Work Is Involved, Use A Qualified Technician With Proper Tools.

Why This Part Commonly Fails

Stalk Switch Blocks Are Subject To Mechanical Wear And Electrical Contact Degradation. Common Failure Modes Include:

• Worn Or Pitted Contact Surfaces Causing Intermittent Or Non-Working Functions.
• Plastic Wear Or Broken Levers From Frequent Use Or Impact.
• Ingress Of Moisture Or Dirt Causing Corrosion On Connector Pins And Internal Contacts.
• Faulty Internal Microswitches Leading To Non-Responsive Wipers, Indicators Or Horn.
• Incorrect Handling During Airbag Or Steering Wheel Service Causing Damage To Connectors Or Internal Mounts.

Service Life And Symptoms

Typical Service Life Varies With Usage And Environment; Many Units Last Over A Decade Under Normal Use, While High Mileage Or Heavy Use Can Accelerate Wear. Symptoms Of A Failing Unit Include Intermittent Lights Or Wipers, Indicators That Don’t Cancel, Non-Functional Horn, Or Loss Of Cruise Control Activation.

Fitment And Part Number Notes

This Unit Is Frequently Identified By The Part Numbers Listed Above. When Searching For Replacements, Include Both PSA And Delphi Numbers To Improve Search Results. Some Variants May Differ In Connector Layout Or Feature Set — Ensure The Unit Matches The Required Functions (Cruise, Radio Controls, Rear Wiper) For The Vehicle.

Additional Tips For Workshops

• Keep Common Stalk Variants In Stock For Faster Turnaround On Peugeot 206 Jobs.
• Document The Original Unit’s Part Number And Any Sub-Modules That Must Be Transferred.
• Inspect Wiring Harness And Connector For Corrosion When Replacing Unit To Avoid Repeat Failures.
