Description
Heating, air conditioning, radio and navigation controls for Citroën C4 B7. Tested – functional.

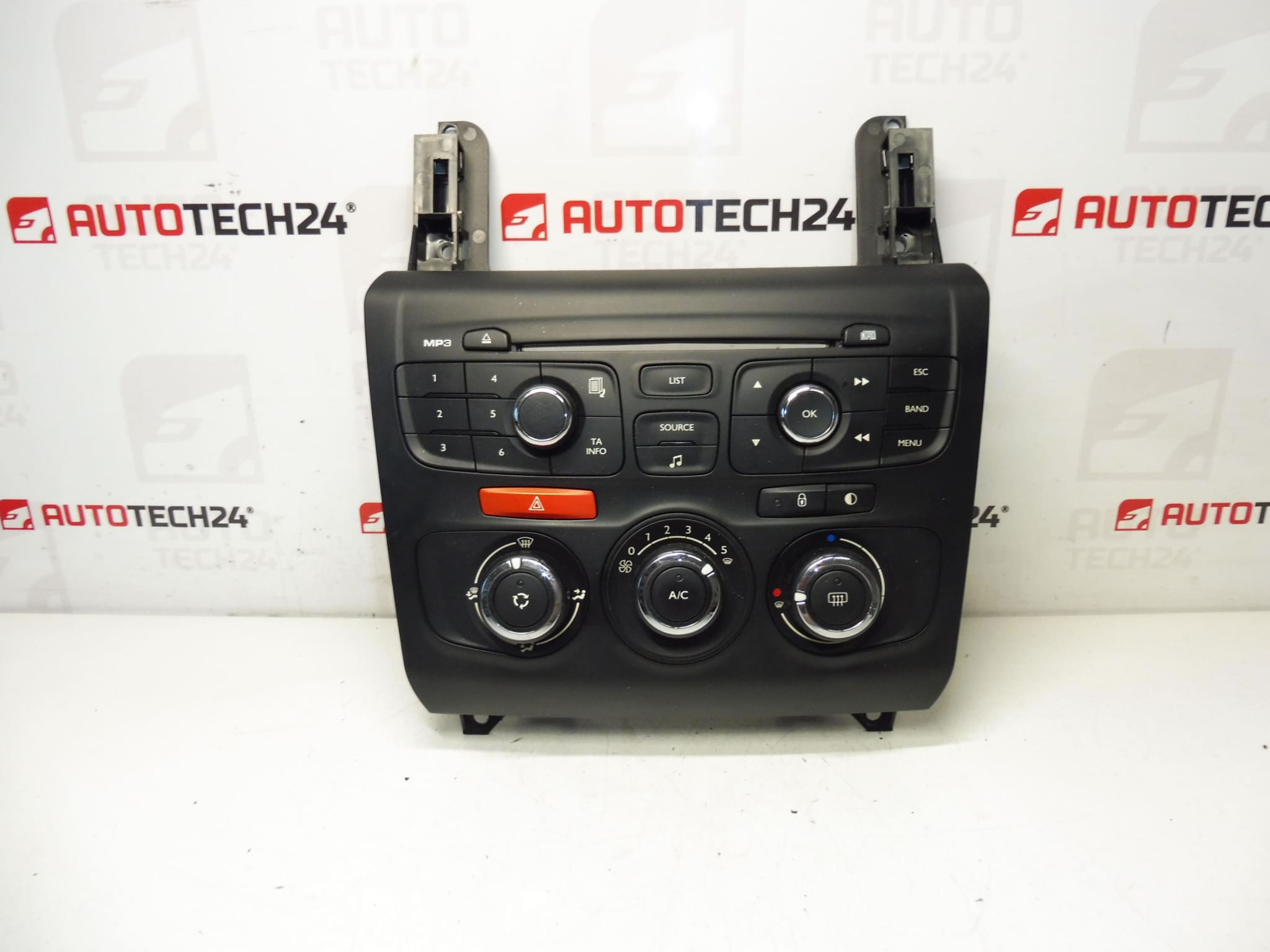

This multifunction control panel is a direct-fit HVAC and infotainment interface designed for Citroën C4 II vehicles. It combines climate control, radio and navigation command functions into one unit, restoring original ergonomics and operation to the dashboard. Ideal for professional workshops and DIY mechanics who need a reliable replacement part that uses original mounting points and electrical connectors.
How It Works And Typical Symptoms
The panel controls heater settings, fan speeds, air distribution, A/C engagement and basic radio/navigation inputs via switches, knobs and a printed circuit board. Common symptoms indicating a failing unit include unresponsive buttons or knobs, intermittent fan control, loss of backlight or display, incorrect temperature regulation and interrupted radio/navigation control. Because this module interfaces with vehicle electronics, faults can present as erratic behavior rather than total failure.
Installation Recommendations
Before installation, disconnect the vehicle battery to prevent short circuits and lock the steering if applicable. Remove the surrounding trim using plastic trim tools to avoid damage, then unscrew and carefully extract the old control panel. Unplug all electrical connectors by releasing their locking tabs—do not pull on wiring. Fit the replacement panel by reconnecting the harnesses and securing the unit with the original fasteners. Reinstall trim, reconnect the battery and verify all functions: fan speeds, temperature control, A/C clutch engagement, radio and navigation inputs. If any functions remain inoperative, check fuses and connector continuity before assuming the new unit is faulty.
Common Failure Causes
Failures are most often caused by wear of mechanical switches and potentiometers, degraded contacts, moisture ingress, thermal stress on solder joints and PCB components, or connector corrosion. Electrical surges or shorts elsewhere in the vehicle can also damage the control board. Regular exposure to high humidity and repeated heavy use of controls accelerates wear.
Technical Information
- Manufacturer: Stellantis / Citroën / Peugeot
- Model: Citroën C4 II (B7)
- Product Codes: 9666395977
- Additional Numbers: 98040763ZD, 6155HR
This unit is well suited for mechanics who value OEM fit and function. When replacing the panel, ensure connectors are fully seated and test all HVAC and radio/navigation features before completing reassembly to avoid repeat removal.
