Description
Air connection to the 1.5 HDI turbo for CITROEN PEUGEOT OPEL FIAT TOYOTA cars
Product description

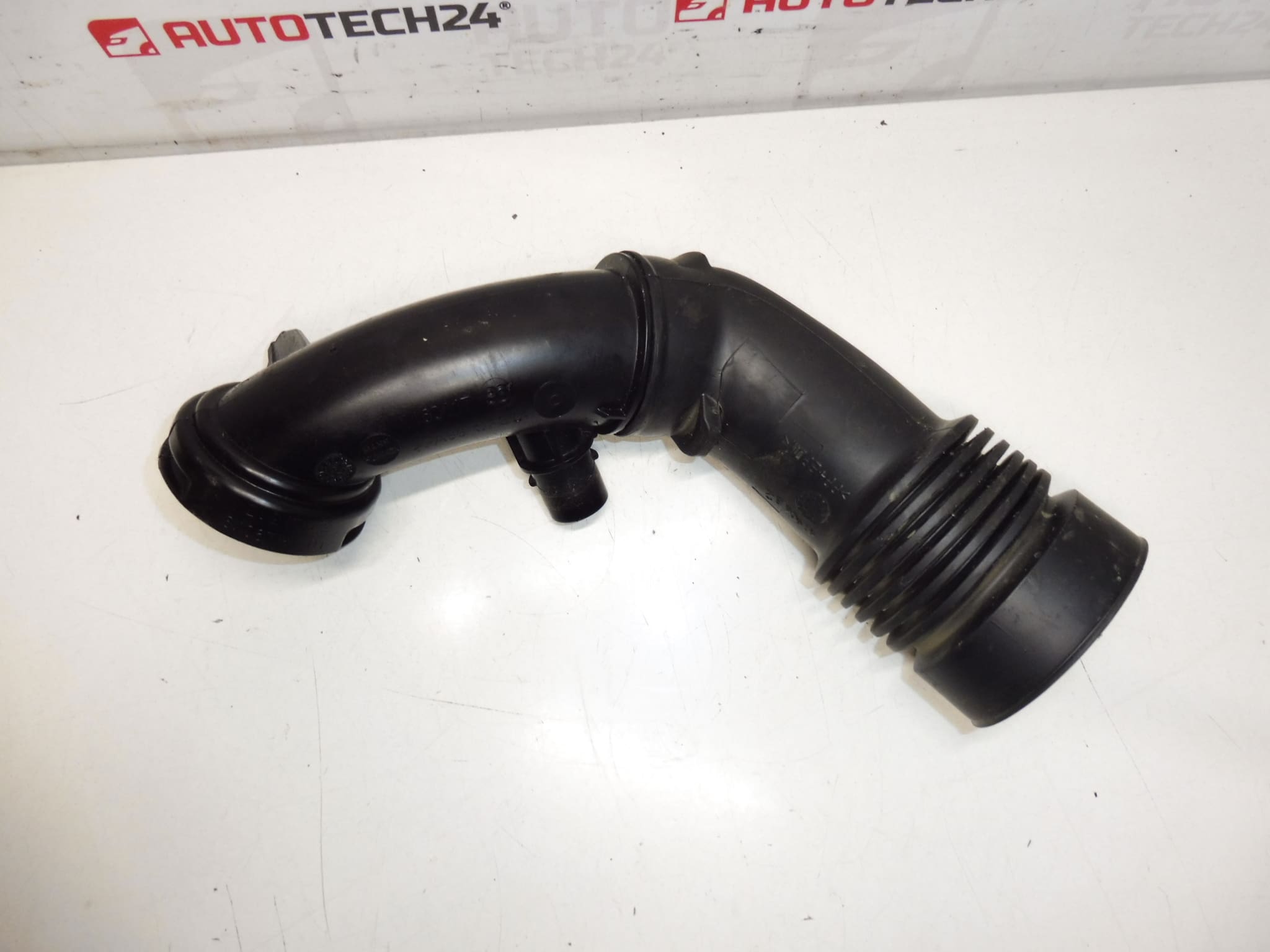

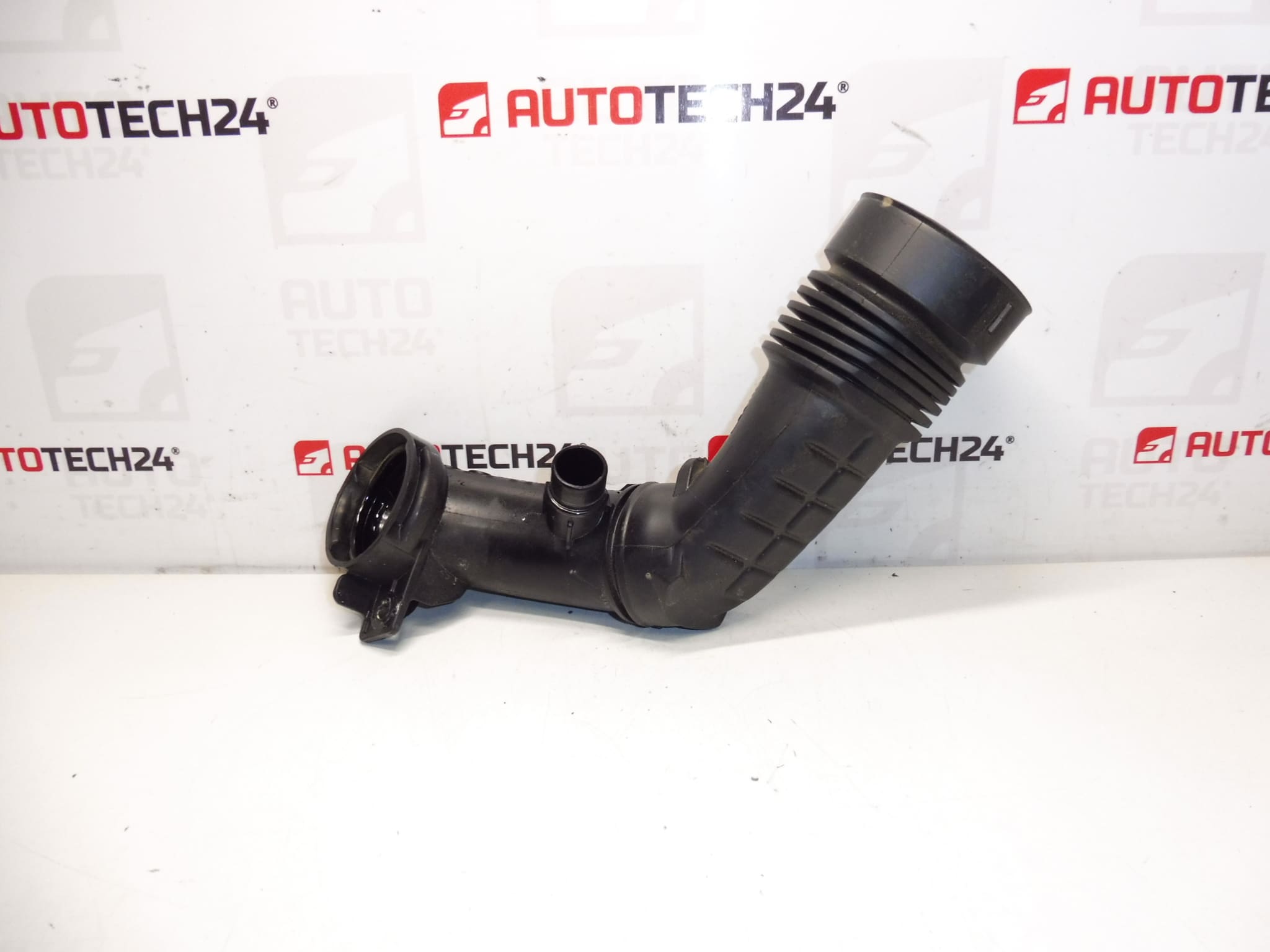

Air connection to turbocharger for 1.5 HDi/BlueHDi (DV5) engines. This is an original solution with quick couplings that leads clean intake air from the filter to the turbo intake. Used, carefully inspected part – ideal replacement if the original intake hose/pipe is cracked, swollen or leaking.
Key benefits
– Direct replacement according to OE number: PSA 9810921180
– Correct geometry and diameters for DV5 1.5 HDi/BlueHDi – no modifications required
– Tight quick couplings minimize false suction and pressure leakage
– Durable plastic/elastomer for long life and stability during temperature changes
Compatibility
– Citroën: Berlingo III (K9), C4 II and others with 1.5 BlueHDi engine
– Peugeot: 308 T9, Rifter (K9) and other 1.5 BlueHDi
– Opel: Combo E (K9) 1.5 Diesel
– Toyota: ProAce City 1.5 Diesel
– Fiat: Doblò III 1.5/1.6 Diesel according to the specific intake variant
Note: Actual compatibility is always governed by the OE part number and specific intake design. Before ordering, verify the match by VIN and number 9810921180.
Technical information
– Function: supply of intake air from the airbox to the turbocharger (inlet)
– Location: engine compartment, turbo intake side
– Engine: 1.5 HDi/BlueHDi (DV5 – DV5RE, DV5RD, DV5RC etc., Euro 6/6.2)
– Design: plastic/tubular section with rubber cuffs and quick couplings
– Typical accessories: quick coupler clips/locks (supplied only if shown in photos)
When to change this part
– Cracks or micro-cracks in the hose, grease around the joints
– Intake whistling, power drop, increased consumption
– Fault codes related to air metering/boost (eg P0101)
– Smoke when accelerating, uneven running
Assembly tips
– Check and clean the mating surfaces and O-rings of the quick couplings
– Lightly coat the sealing rings with silicone oil before snapping
– Check the condition of the intake filter and airbox hold, you will prevent future leaks
– After assembly, perform a visual inspection and a short test drive
Part identification
– OE/OEM: PSA 9810921180
– Designation in practice: air connection, intake hose, intake pipe to turbo, air intake hose/inlet 1.5 HDi
Condition and origin
– Used part from Citroën/Peugeot (PSA) and related models on the K9 platform
– Fully functional, condition according to photo; minor cosmetic signs of use may occur
Tip for quick verification
If your old connection bears the number 9810921180, or has the same shape and quick couplings, it is the correct replacement. In case of confusion, send the VIN – we will verify compatibility.
