Description

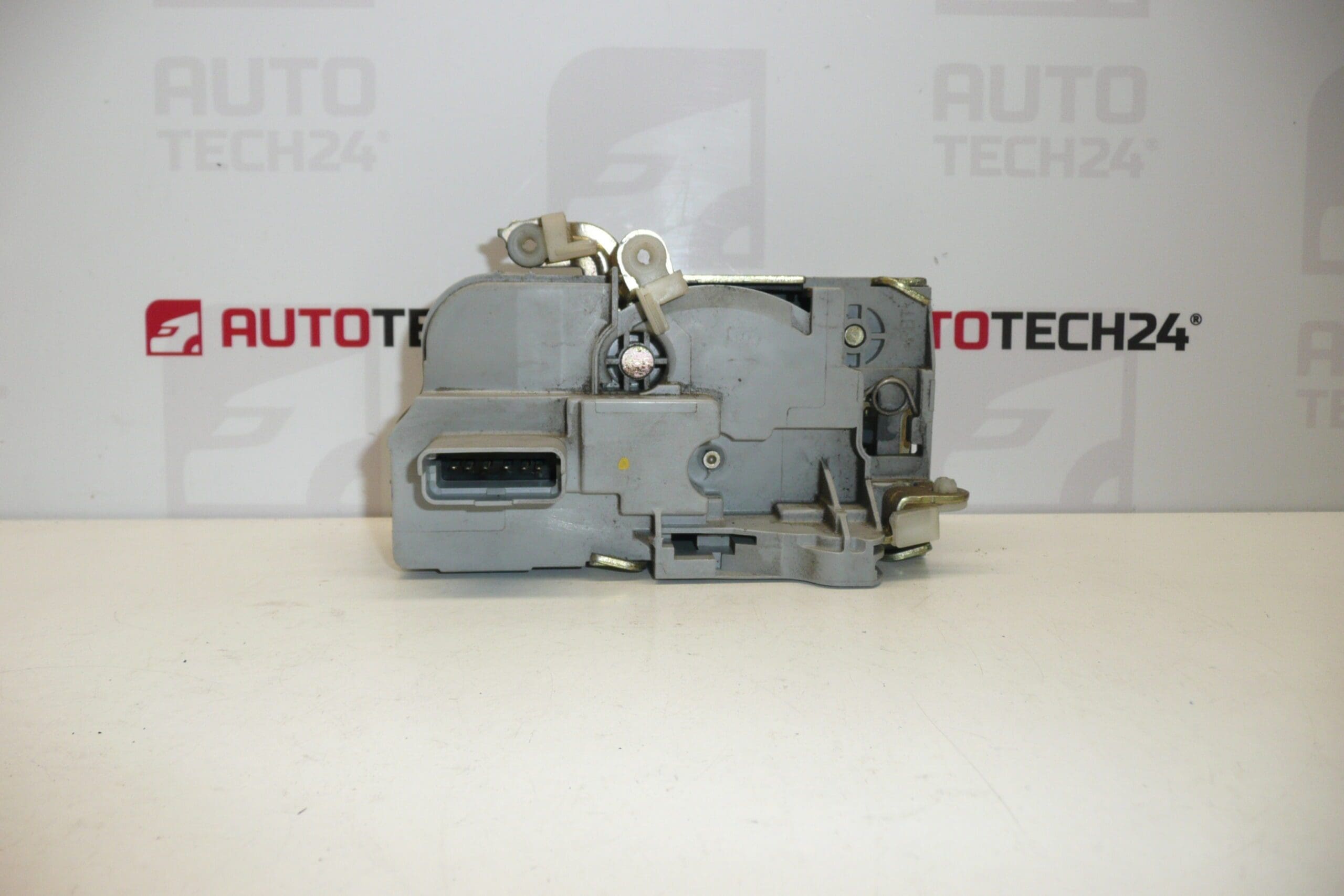

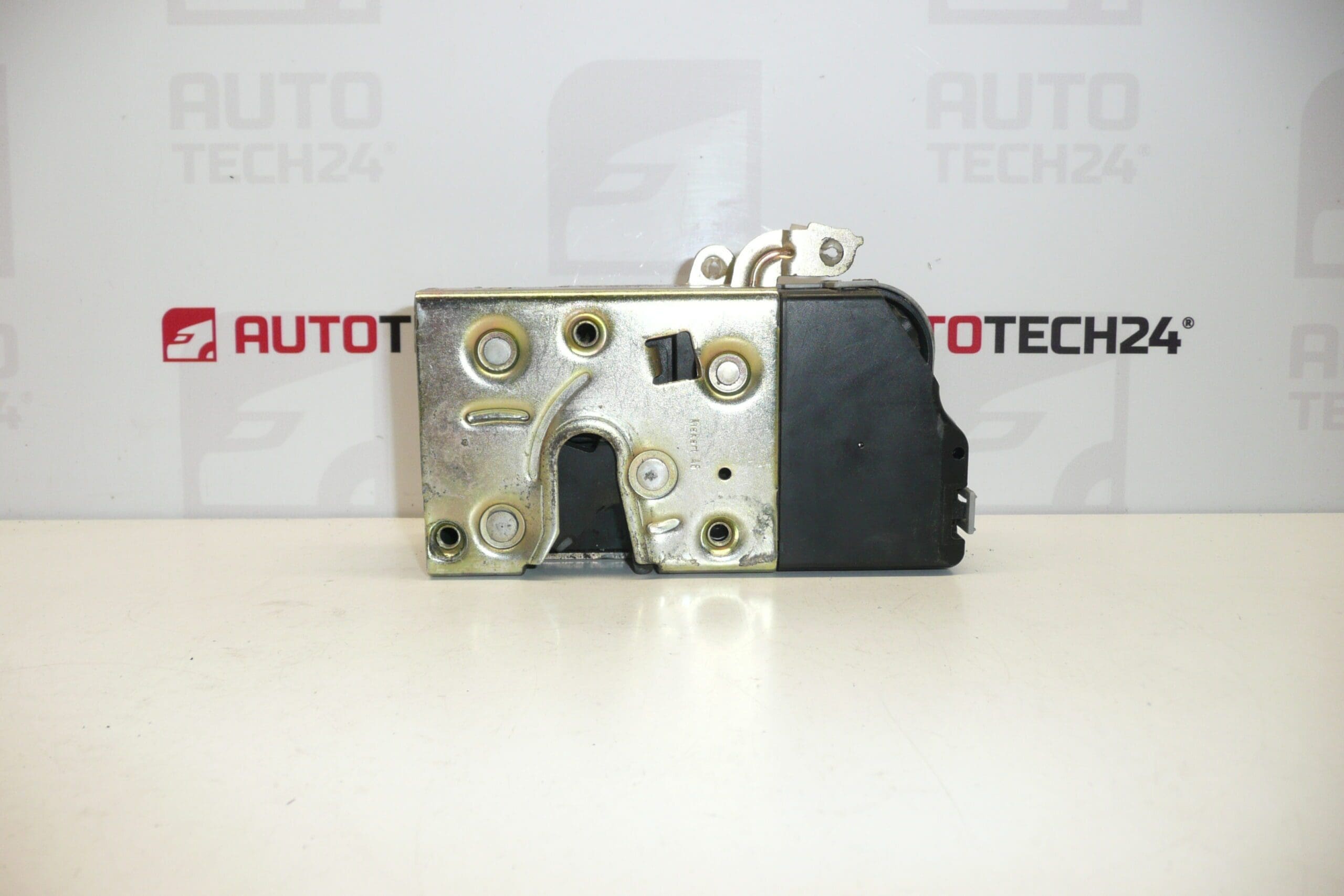

Electric central locking latch for the left front door for Citroën C5 I and II. Used part supplied with a functionality guarantee.
This electric door lock assembly is designed for the left front door of Citroën C5 first and second generation vehicles and is a practical replacement for worn or failed central locking latches. The part is commonly searched under the code 9135J1, which makes it easy to find and order for fast repairs. Intended for mechanics and experienced DIY enthusiasts, this unit restores secure door locking and reliable central locking operation without the cost of a new original equipment part.
Function And Benefits
The assembly controls locking and unlocking of the left front door via the central locking system. It houses the actuator mechanism and latch that engage with the striker on the body, plus electrical contacts that report lock status to the vehicle’s control module. Replacing a faulty unit eliminates problems such as intermittent locking, inability to lock/unlock from remote or switches, and doors that do not remain securely closed.
Technical Information
- Manufacturer: Stellantis (Citroën / Peugeot)
- Model: Citroën C5 I and C5 II
- Product Codes: 9135J1
- Other Numbers: NFP
Installation Recommendations
- Disconnect The Negative Battery Terminal Before Starting To Prevent Short Circuits And Avoid Unintended Airbag Or Central-Locking Signals.
- Remove The Inner Door Trim Carefully Using Trim Tools To Avoid Breaking Clips; Start By Removing Any Switch Panels And Fasteners.
- Peel Back The Moisture Barrier Gently To Gain Access To The Lock Mechanism.
- Unplug The Electrical Connector And Detach Any Linkages Or Rods From The Lock (Note The Exact Orientation For Reassembly).
- Remove The Fixing Screws/Bolts Holding The Lock Unit, Replace With The Supplied Unit, And Reassemble In Reverse Order.
- Check Operation Before Reinstalling The Door Trim: Cycle The Central Locking With Key, Remote, And Interior Switches; Lubricate Moving Parts With Suitable Grease Or Spray As Needed.
- Use Common Hand Tools And Basic Electrical Test Equipment; If In Doubt, Follow Factory Repair Manual Steps For This Door And Vehicle Generation.
Most Common Reasons For Failure
- Moisture Ingress And Corrosion Causing Electrical Contacts Or Motor To Fail.
- Wear Or Breakage Of Internal Plastic Gears And Mechanical Components After Years Of Use.
- Seized Or Sticky Latch Mechanism Due To Lack Of Lubrication Or Dirt Accumulation.
- Damaged Or Corroded Electrical Connector Or Wiring Resulting In Intermittent Operation.
- Impact Or Force On Door Hardware Causing Misalignment Or Mechanical Damage.
Replacement Of The Left Front Door Lock Is A Common Repair On C5 Vehicles—especially in older cars or those exposed to wet climates. The unit offered here is a used component supplied with a functionality guarantee, making it a cost-effective choice for workshops and DIYers seeking a reliable repair. Search Using The Part Number 9135J1 To Locate This Specific Item Quickly.
