Description

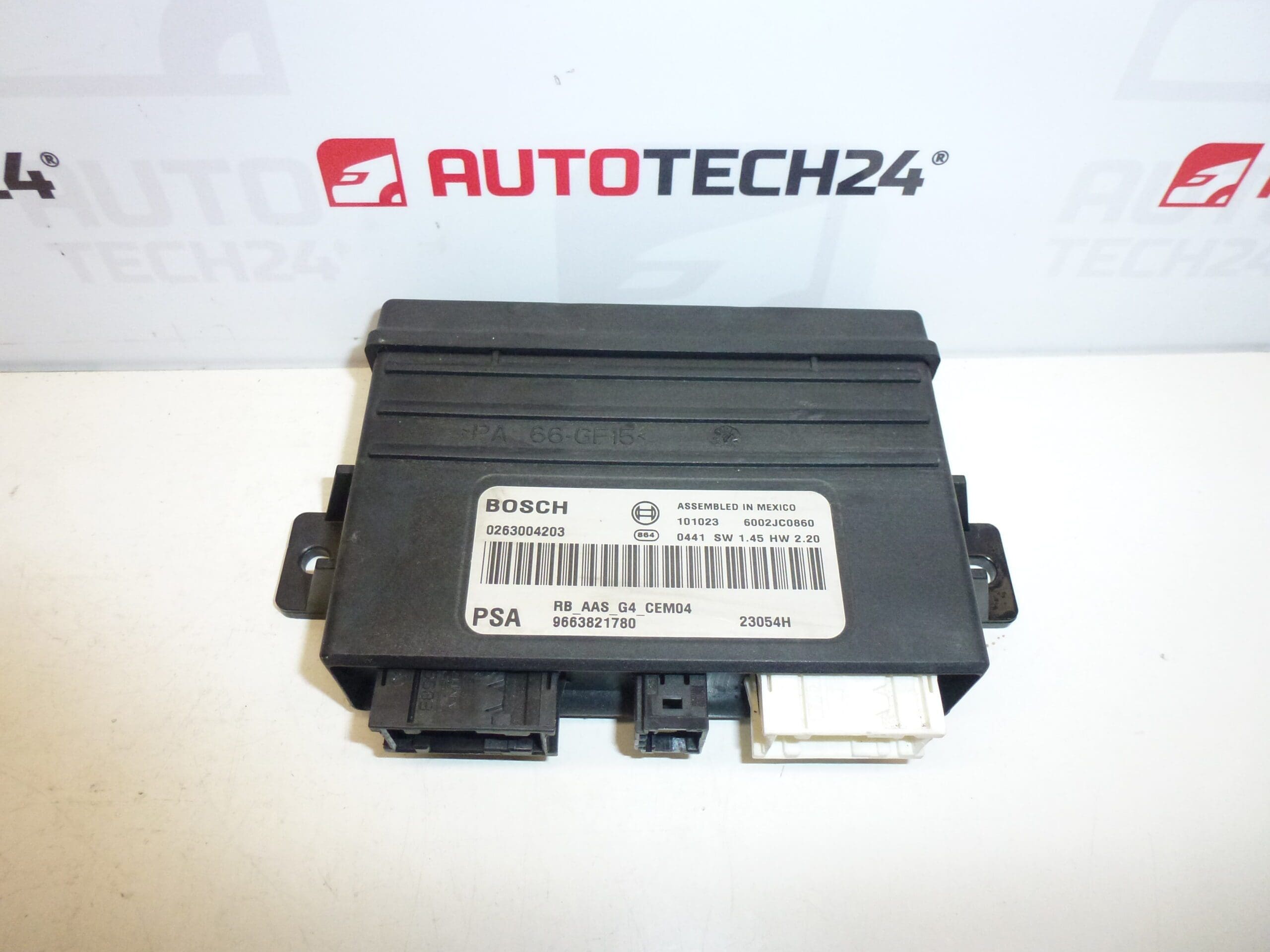

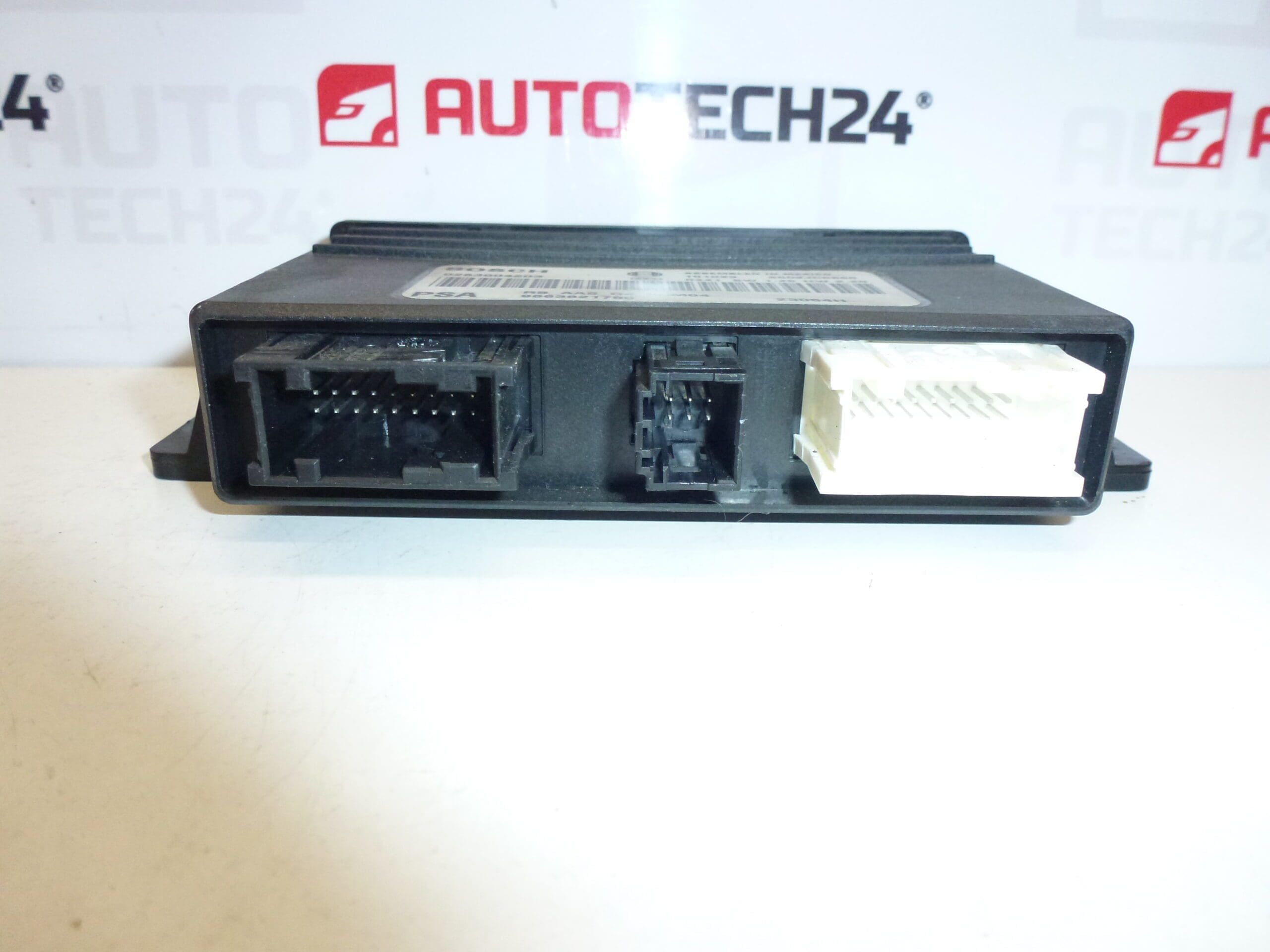

Bosch Parking Assist Control Unit For Citroën And Peugeot Vehicles. Front And Rear Sensors.
High-quality Bosch parking assist ECU designed for Citroën and Peugeot applications. This control unit processes input from front and rear ultrasonic sensors to deliver reliable audible and visual parking guidance. Ideal for workshop professionals and experienced DIY mechanics who search by product code (e.g. 9663821780, 0263004203, 6590EC) when sourcing replacement electronics. The unit is compatible with common Stellantis platforms and helps restore full parking sensor functionality after sensor or wiring repairs.
Compatibility And Application
Fits selected Citroën and Peugeot models equipped with Bosch parking sensor systems. Typical compatible vehicle examples include:
- Citroën C4 Picasso
- Citroën C5 (X7)
- Peugeot 407
How It Works
The module receives signals from ultrasonic sensors mounted in the bumpers, interprets obstacle distance and relative speed, and outputs warnings through the vehicle’s audio/visual interface. It also supervises sensor diagnostics and may trigger dashboard fault messages if faults are present. Proper operation depends on intact sensor elements, wiring, grounding and correct coding/calibration to the vehicle.
How To Replace
Replacement requires careful work and basic electrical skills. Typical replacement steps:
- Disconnect the negative battery terminal before starting to avoid electrical damage or error codes.
- Remove interior trims or bumper panels as required to access the parking assist control unit (location varies by model).
- Unplug the ECU connectors and remove any mounting fasteners.
- Install the new unit, secure connectors and fastenings, then reassemble trims.
- Perform required calibration/coding with a suitable diagnostic tool so the ECU recognizes sensor positions and vehicle configuration.
Installation Recommendations
- Always Disconnect Battery: Before demounting or mounting the unit, disconnect the battery to prevent short circuits and protect sensitive electronics.
- Protect Connectors: Inspect and clean connectors; ensure pins are undamaged and contacts are corrosion-free.
- Use Proper Diagnostic Equipment: Calibration or coding may be necessary after replacement. Use PSA-compatible diagnostic tools (e.g., DiagBox) or an equivalent unit capable of parking sensor adaptation.
- Follow Manufacturer Procedures: Respect torque values and clip locations when reassembling panels to avoid vibration or water ingress.
Most Common Failure Causes
- Water Ingress And Corrosion: Moisture entry at connectors or along wiring often leads to intermittent faults or permanent ECU damage.
- Physical Impact: Bumper collisions can damage sensors or shock the control unit.
- Faulty Sensors Or Wiring: A shorted sensor or damaged harness may overload or confuse the ECU and create faults.
- Electrical Surges Or Poor Grounding: Voltage spikes, poor grounding or blown fuses can impair module function.
- Connector Damage: Bent pins or corroded terminals prevent proper communication between sensors and the ECU.
Technical Information
- Manufacturer: Bosch
- Model: Citroën C4 Picasso; Citroën C5 X7; Peugeot 407
- Product Codes: 9663821780; 0263004203; 6590EC
- Other Numbers: 6590EE; 6590CZ; 6590EA; 6590GN; 6590GP
Why Replace This Unit
Replacing a faulty parking assist control unit restores reliable obstacle detection and prevents misleading warnings or loss of parking guidance. Addressing the root cause—damaged sensors, wiring faults or moisture—at the same time reduces the chance of repeat failures.
Notes On Coding And Calibration
After physical installation the unit may require coding and sensor calibration to match the vehicle’s configuration. Calibration ensures accurate distance readings and consistent alerts. If you do not have access to appropriate diagnostic tools, consider professional service for final coding and testing.
