Description
Display – Tachometer for Citroën C4 vehicles up to 2008

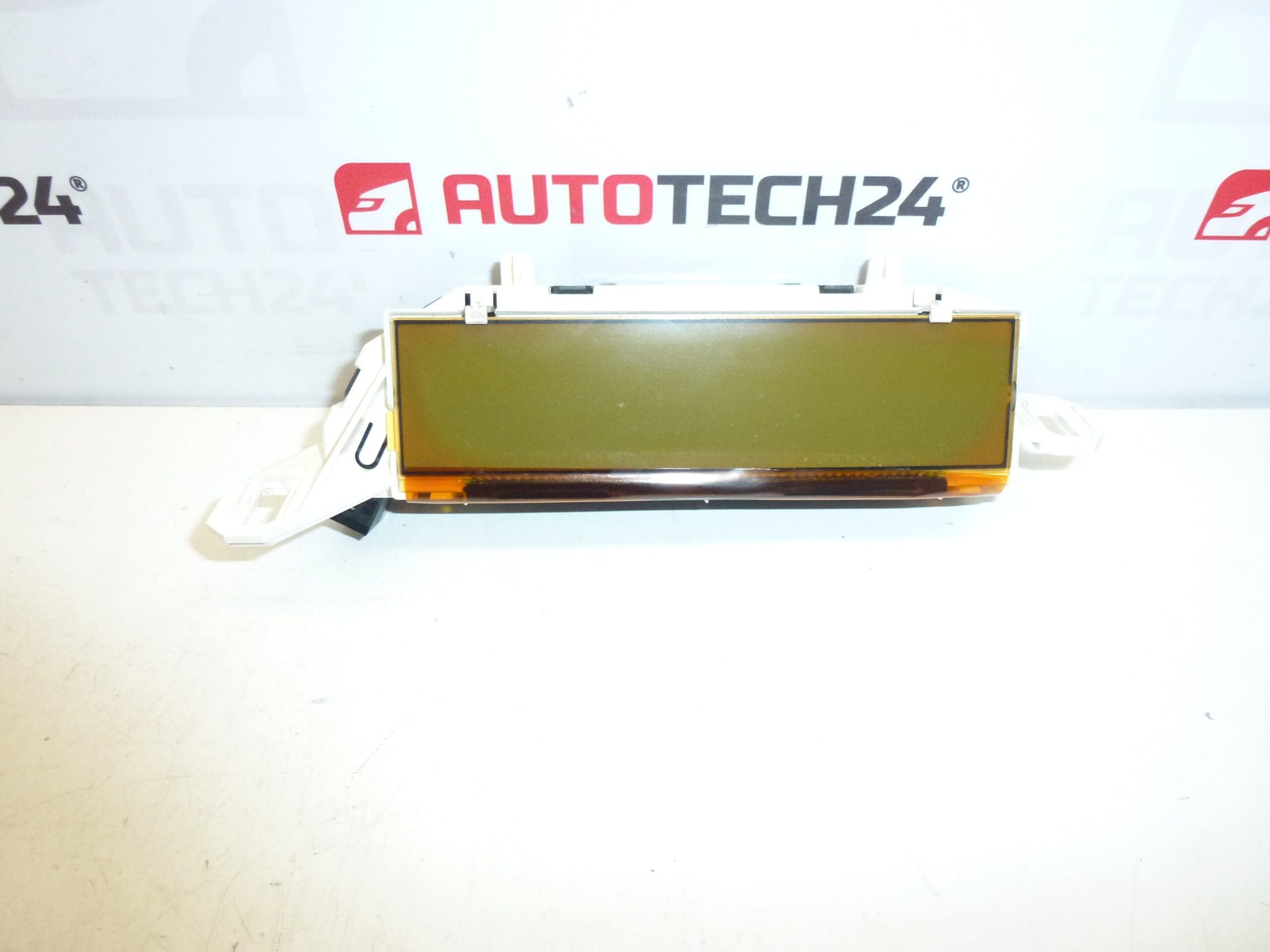

Used instrument cluster display (tachometer) suitable for Citroën C4 I (first generation) models produced until 2008. This replacement unit carries OEM reference numbers often searched by mechanics and DIY enthusiasts: 9654149280, 6106E1, 6106E0, NFP. The module restores clear RPM readout and needle response, improving drivability and diagnostic visibility when the original display shows missing segments, no backlight or unstable pointer movement.
This part is aimed at professional garages and competent DIY mechanics who perform instrument cluster replacements. Because many technicians search by part number, we list all known references to make identifying the correct unit quick and reliable. The tachometer displays engine revolutions per minute and works together with the vehicle electronic systems to present accurate RPM information to the driver.
Technical Information
- Manufacturer: Stellantis / Citroën
- Model: Citroën C4 I (up to 2008)
- Product Codes: 9654149280, 6106E1
- Additional Numbers: 6106E0, NFP
Installation Recommendations
- Disconnect the vehicle battery before any work on the instrument cluster to avoid short circuits or damage to electronic modules.
- Remove trim panels carefully to access the cluster. Retaining screws are commonly Torx or Phillips—keep the correct bits to hand.
- Unscrew and pull the cluster forward slowly; note the connector locking tabs and release them gently to unplug the wiring harnesses.
- Swap the display/cluster and reconnect all plugs ensuring secure seating and locked tabs. Refit screws and trim in reverse order.
- After installation, perform a basic functional check: ignition on, verify backlight, RPM needle response, and warning lights. Correct seating of connectors is the most common cause of post-fit faults.
- Observe anti-static precautions and avoid touching exposed circuit paths or pins on connectors to prevent damage.
Most Common Failure Reasons
- Backlight or LCD failure due to aging, thermal stress, or degraded LEDs resulting in dim or non-visible display.
- Stepper motor wear or internal friction causing inaccurate or stuck RPM needle.
- Moisture ingress or condensation leading to corrosion of contacts and shorted traces.
- Solder joint cracks or damaged surface-mounted components from vibration and thermal cycling.
- Connector contact oxidation or poorly seated plugs after previous repairs.
When replacing the tachometer display, use proper tools and follow manufacturer removal procedures. For experienced mechanics this is typically a straightforward cluster swap; careful handling and connector checks significantly reduce the risk of repeat faults. The listed part numbers are provided to help you match the correct unit quickly when ordering or searching in catalogs.
