Description

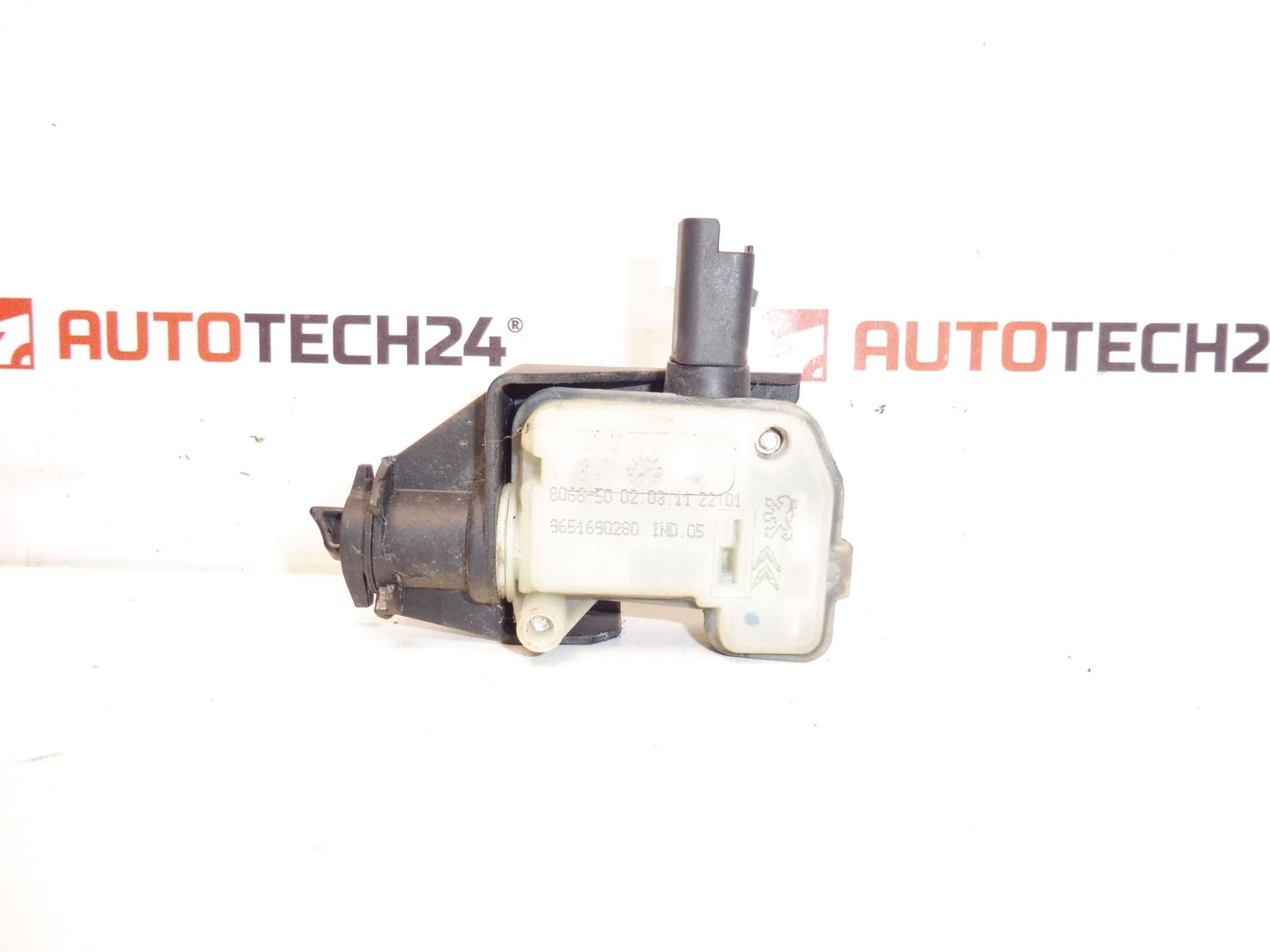

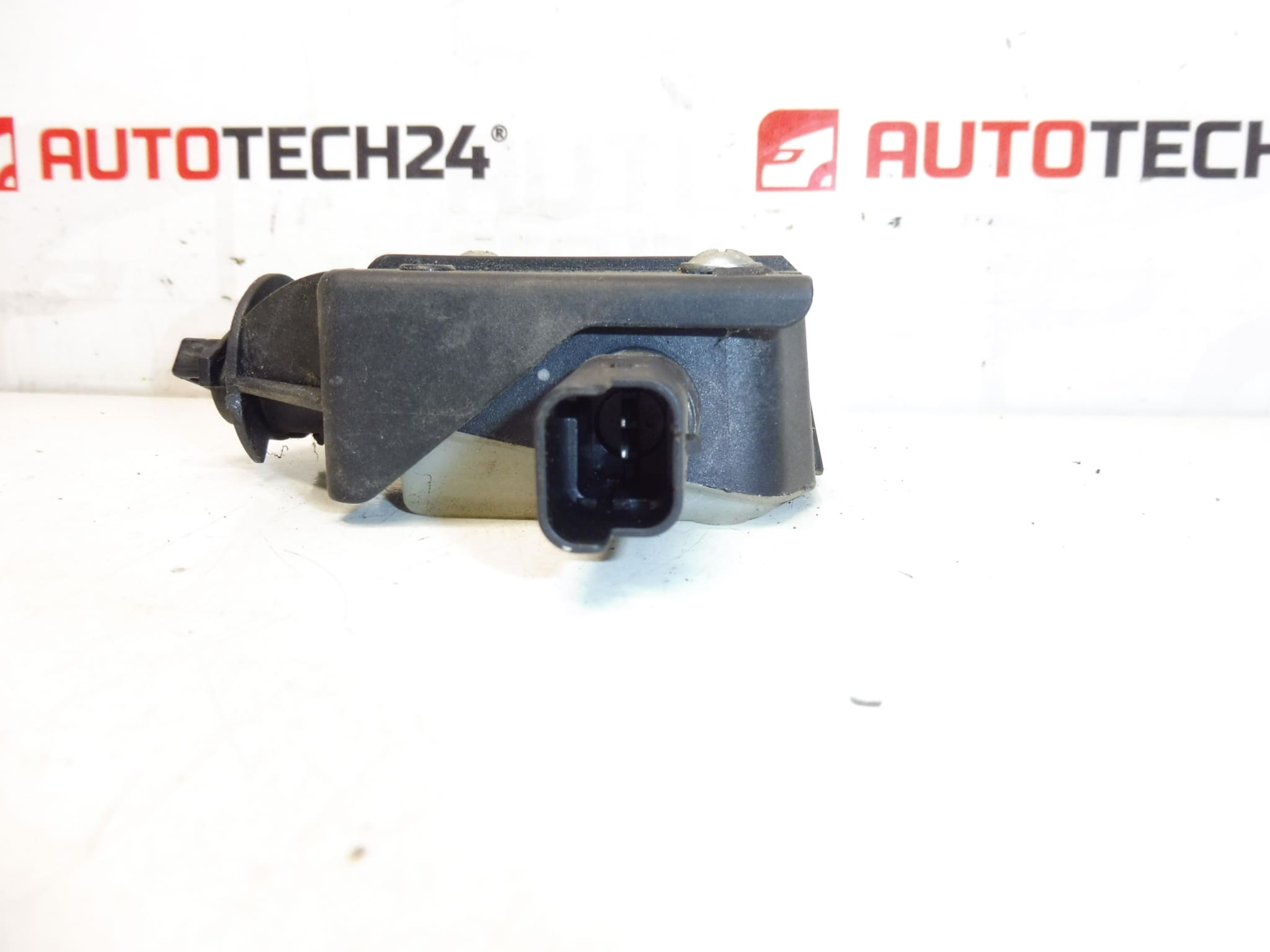

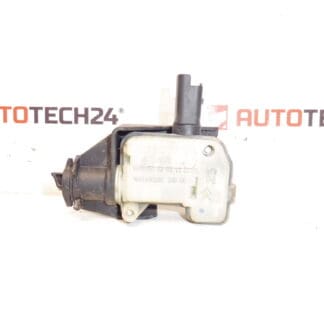

Fuel filler flap actuator for Citroën and Peugeot vehicles.
This replacement fuel filler flap actuator is designed for Citroën and Peugeot vehicles and is commonly referenced by part numbers 9651690280 and 661535. Ideal for professional workshops and experienced DIYers, this actuator restores reliable opening and locking of the fuel flap, integrates with central locking systems, and eliminates common faults such as a stuck or non-responsive fuel flap. Often searched by OE numbers, the unit makes compatibility checks quick for technicians who work with Stellantis platforms.
Key Features
- Direct-fit replacement for vehicles using OE code 9651690280 / 661535.
- Electric actuator mechanism for automatic fuel flap locking and release.
- Durable construction designed for external mounting conditions at the fuel filler.
- Suits workshop repairs and independent vehicle owners familiar with door/filler lock replacements.
Function And Typical Symptoms
The actuator operates the locking latch of the fuel filler flap: it receives a locking/unlocking command from the vehicle’s central locking system and drives the latch to open or secure the flap. Common symptoms of a failing actuator include a fuel flap that does not open with remote unlocking, a flap that stays locked or partially open, audible motor/noise from the filler area, or intermittent operation. Faults can be electrical (motor or wiring) or mechanical (worn gears, seized latch).
Replacement Procedure
Suitable for trained technicians and competent DIY mechanics. Typical replacement steps:
- Open the trunk and remove the trunk trim panel to access the fuel filler lock mechanism (procedure varies by model).
- Disconnect the electrical connector to the actuator and unclip any retaining clips or fasteners.
- Remove the mounting screws or rivets securing the actuator and withdraw the unit from the filler housing.
- Install the new actuator in reverse order: secure mounting, connect the electrical plug and test function before reassembling trim.
Exact access points and fastener types vary by model—follow model-specific workshop manuals when available.
Technical Information
- Manufacturer: Stellantis (Citroën/Peugeot)
- Model: Citroën C4 II
- Product Codes: 9651690280
- Additional Numbers: 661535
Installation Recommendations
Before starting the job, ensure the vehicle is parked safely and ignition is off. Disconnect the negative battery terminal to avoid short circuits when unplugging electrical connectors. Handle wiring plugs carefully to avoid damaging terminals and protect plastic clips during removal. After fitting, perform a functional test of the fuel flap operation via the central locking and manual release if available. If any fault codes remain, diagnose electrical supply and grounding at the connector and check the central locking signals.
Why This Part Fails Most Often
Failures are usually caused by water ingress and corrosion, mechanical wear of internal gears, or motor burnout after repeated cycles. Dirt and debris around the filler area accelerate wear. Electrical faults such as damaged wiring, poor connector contacts, or intermittent supply from central locking control can also lead to malfunction. Regular visual inspection and keeping the filler area clean reduce the risk of premature failure.
