Description

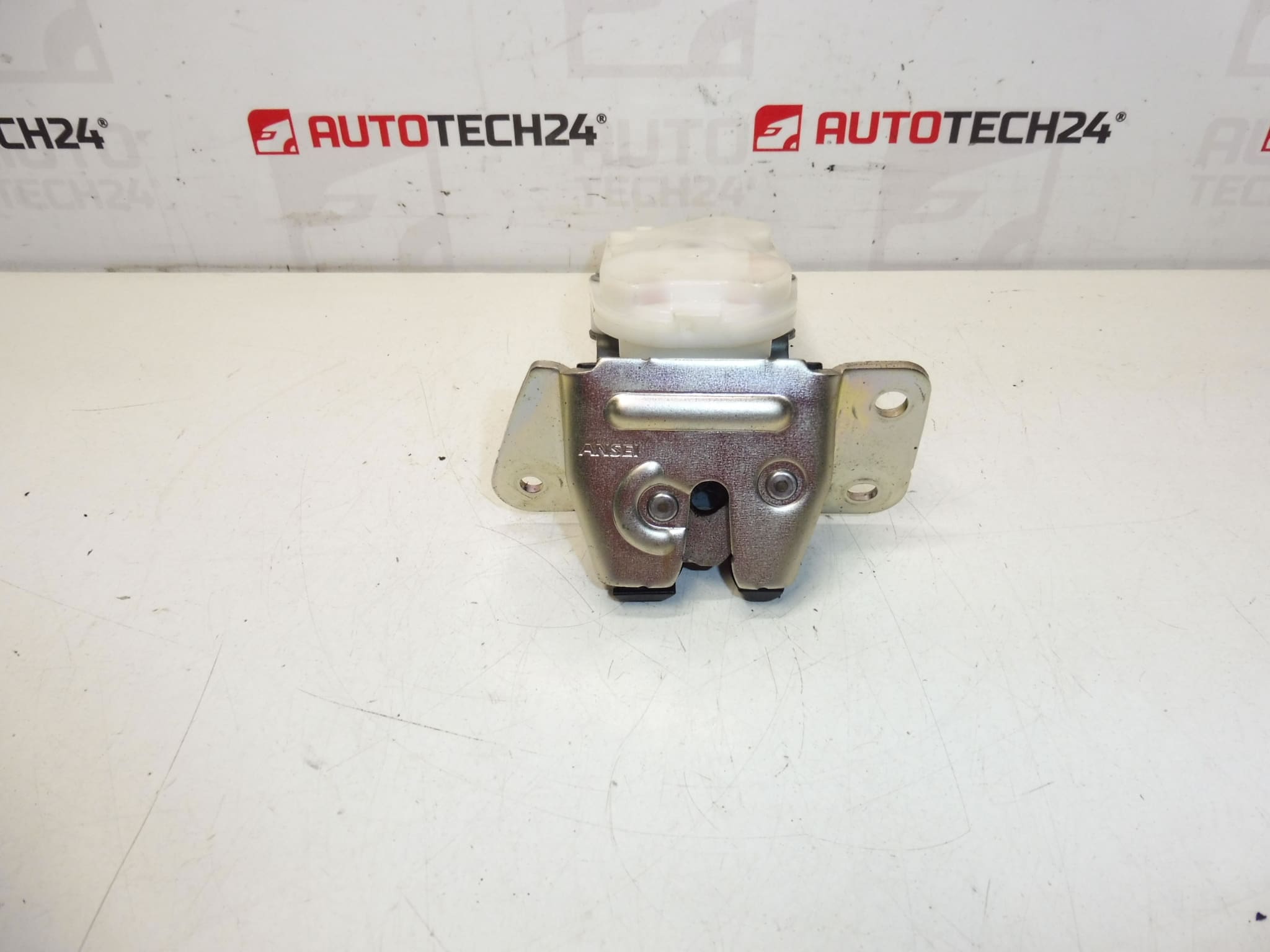

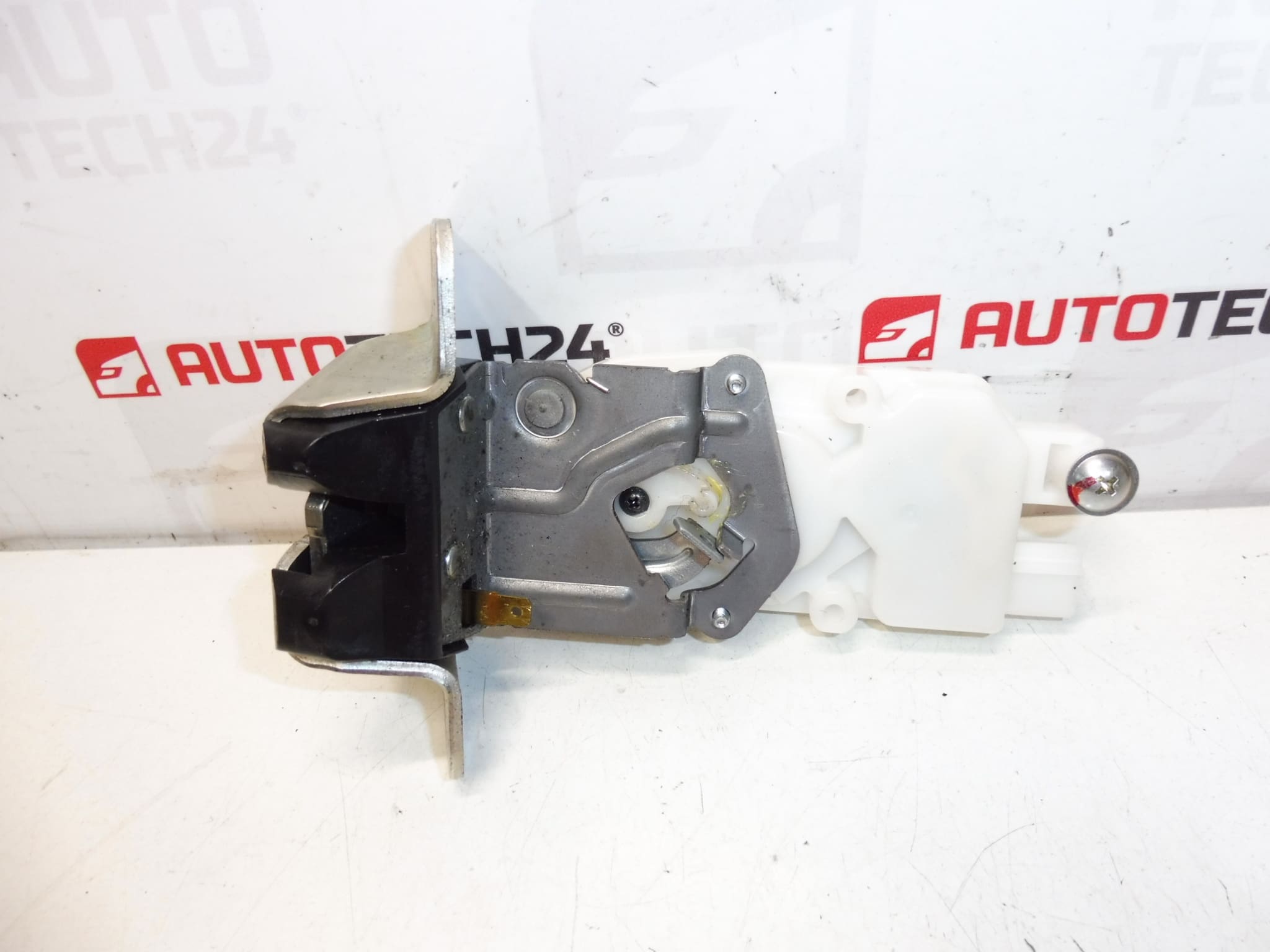

Electric Lock of the rear tilt doors for Citroën C-Crosser Peugeot 4007
Electric rear lid lock (fifth door) for Citroën C -Crosser and Peugeot 4007. The part ensures locking and unlocking the upper hinged doors through central locking and the integrated micro -board gives the control unit information about closing the lid. Suitable as a direct replacement for the original part of the dog with codes 8719H3 / 1619251880.
This lock is most often solved in the case of such types: The suitcase cannot be opened/locked, the lock just clicks without any reinsurance, the on -board computer reports the “open fifth door”, the interior lighting remains lit or the rear windows are not working due to the open lid detection. This is due to the wear of the electric motor/actuator, tired microswitch, moisture entering into the mechanism or damage to the cabling in the doorway.
Compatibility: Citroën C -Crosser (approx. 2007–2012) and Peugeot 4007 (approx. 2007–2012). It is a lock of the upper hinged doors (not any lower folding parts), dimensional and electrically corresponding to the original – without the need for modifications.
Installation is straightforward and managed in the workshop and at home. Recommended procedure: Disconnect the battery, remove the inner plastic lid lining, disconnect the electrical connector of the lock, release the fastening screws (usually Torx), raise the rod/control cable and remove the lock. Sit the new piece in its original position, connect the connector and pull, tighten the screws. Before deploying the lining, make a trial closing and check the function of the central locking and proper closing. If necessary, fine -tune the latch position/firing pin to the door to close smoothly and without a wound.
For a long life, check the status of the rubber seal around the lid and the cable bundle in the bushage – the water intrusion and the correct clearance of the cabling significantly reduce the risk of repeated defects.
technical information
- Manufacturer: PSA (Citroën/Peugeot)
- Model: Citroën C -Crosser (2007–2012), Peugeot 4007 (2007–2012)
- product codes: 8719H3, 8719.h3, 1619251880
- Other numbers: 8719 H3, 16 192 518 80, 1619 251 880
Keywords for quick search: Fifth door lock, rear lid lock, trunk lock, lid electrical lock, Citroën C -Crosser, Peugeot 4007, 8719H3, 1619251880.
