Description
Car radio CONTINENTAL RD4 RD4N1M-03 CD CITROEN BERLINGO III C2 C3 C4 PEUGEOT 207 307 PARTNER III
The radio must be added to the car with diagnostics

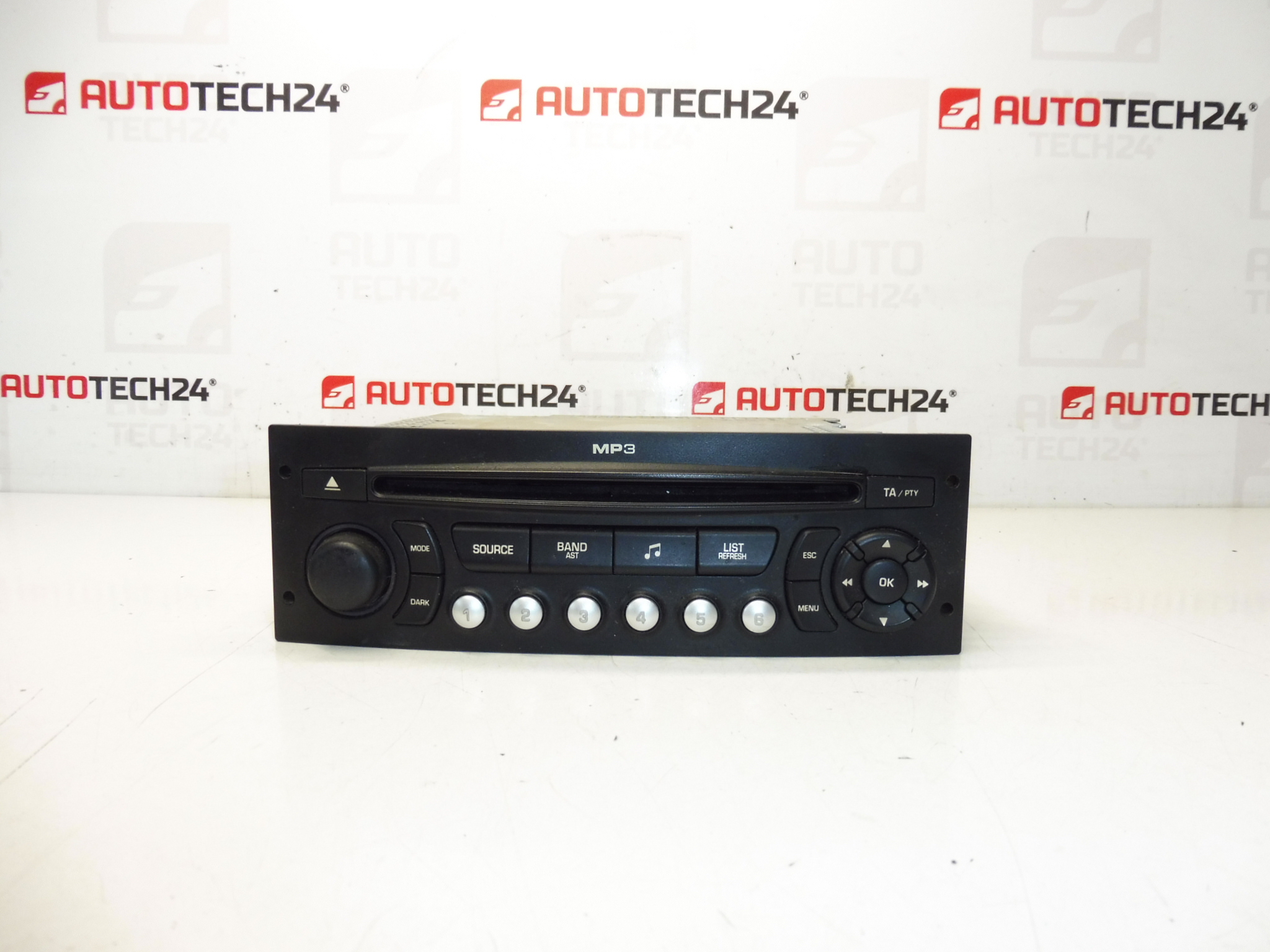

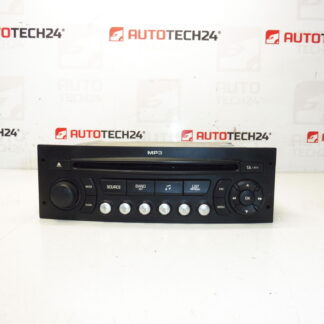

CD Continental RD4N1M-03 Citroën Peugeot 96662669XT car radio is an original part from the PSA concern, suitable for a wide range of Citroën and Peugeot models. It is an ideal choice for repairing cars after an accident, replacing a broken unit or returning to the original audio system after an unsatisfactory installation of a non-original radio.
This type of radio RD4N1M-03 supports CD playback and is integrated into the car’s on-board electronics, so it works well with the original controls under the steering wheel and on-board computer (according to the equipment of the specific car). Thanks to the original design, it fits perfectly into the instrument panel without the need to modify plastics or wiring.
Technical information:
Manufacturer: Continental / PSA
Model: RD4 / RD4N1M-03
Part Type: Car Radio CD, OEM Unit
Main product codes: 96662669XT, 6574PW, 6574PX, 16077504XT
Other numbers: may vary by production series and SW version, but basic compatibility is based on the above codes
Typical uses:
Citroën Berlingo III
Citroën C2
Citroën C3 (I)
Citroën C4
Peugeot 207
Peugeot 307 (II)
Peugeot Partner III
and other cars of the PSA concern equipped with the RD4 system in the respective years
Advantages of the original car radio RD4N1M-03:
– original appearance and mounting in the dashboard
– compatibility with the original control on the steering wheel (if the car is equipped with it)
– correct function with on-board computer display unit
– simple electrical connection – no need for additional reduction as with non-original radios
Important Notice:
The radio must be added to the car through diagnostics. Without proper BSI mapping, limited functionality, error messages or the radio not playing at all can occur.
Assembly advice and recommendations:
– Always disconnect the minus terminal of the battery and wait a few minutes before disassembling the old car radio for safety and protection of the electronics.
– Use the correct extraction keys for the car radio so as not to damage the mount or faceplate.

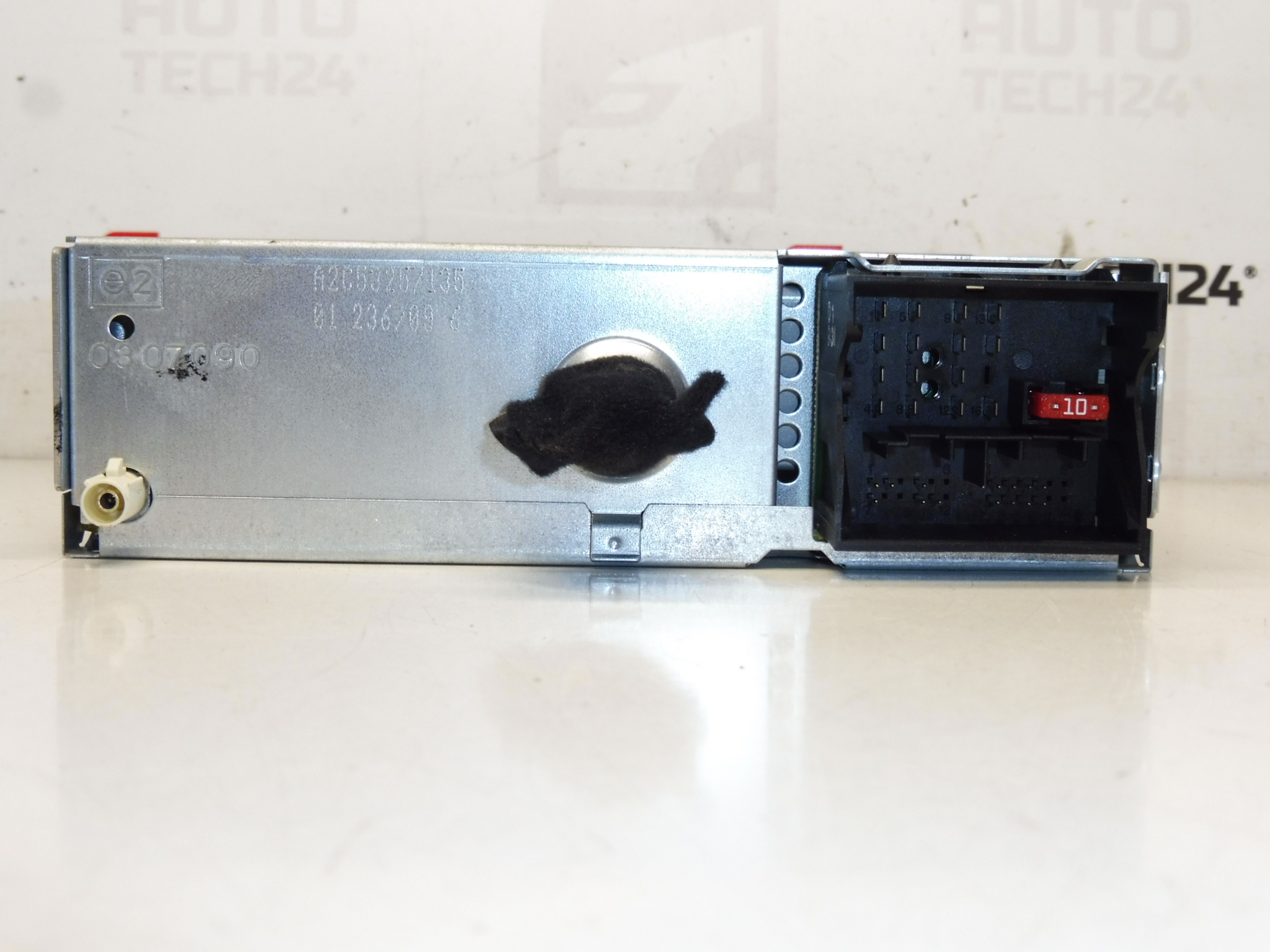

– Check the condition of the ISO/Quadlock connectors – there must be no broken pins, pulled contacts or signs of overheating.
– During installation, ensure that the radio is firmly seated in the shaft, so that there are no hums and vibrations while driving.
– After the mechanical assembly, connect the battery and perform the transfer (pairing) of the radio with the vehicle using diagnostics (eg DiagBox, Lexia, PP2000 or compatible diagnostics for PSA).
– After completing the diagnostic assignment, test:
– turning the radio on and off
– switching stations and sources (FM/CD)
– control under the steering wheel (if it is in the car)
– communication with the display (showing the station, volume, etc.)
– Be careful of voltage surges – during diagnostics do not change the battery connections, do not disconnect the connectors of the radio or other control units.
– If you are transferring a radio from another PSA car, it is advisable to first “decode” (deregister) the radio in the original car and then register it in the new one – this will facilitate the proper functioning of all systems.
This part is especially suitable for auto mechanics and experienced home repairers who are looking for a specific car radio according to the OEM number, and who want to preserve the original functionality and appearance of the interior of a Citroën or Peugeot. When looking for a replacement, we recommend following the listed codes 96662669XT, 6574PW, 6574PX, 16077504XT and the designation RD4N1M-03.
