Description
Carbon, active carbon for Citroen Peugeot

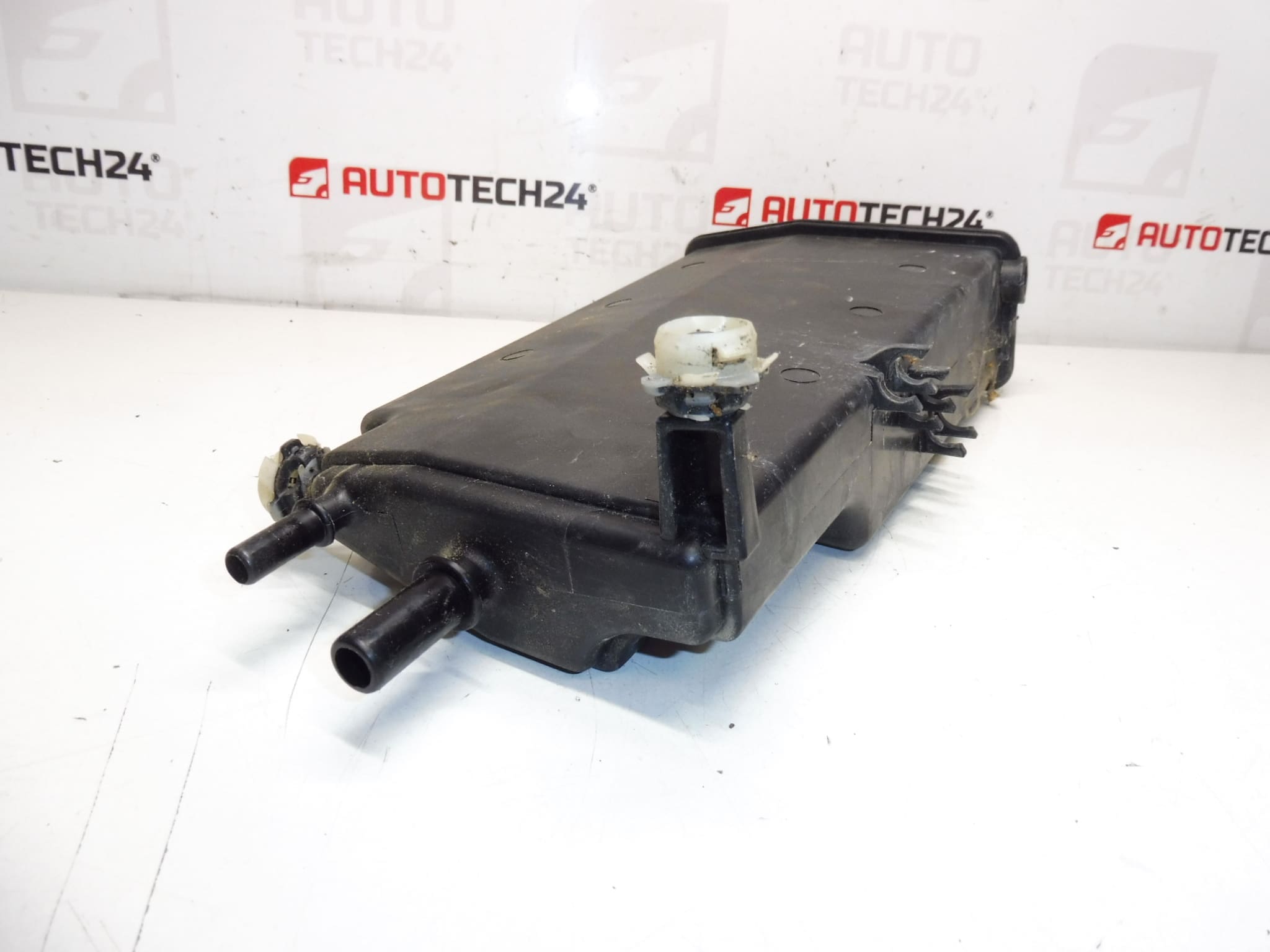

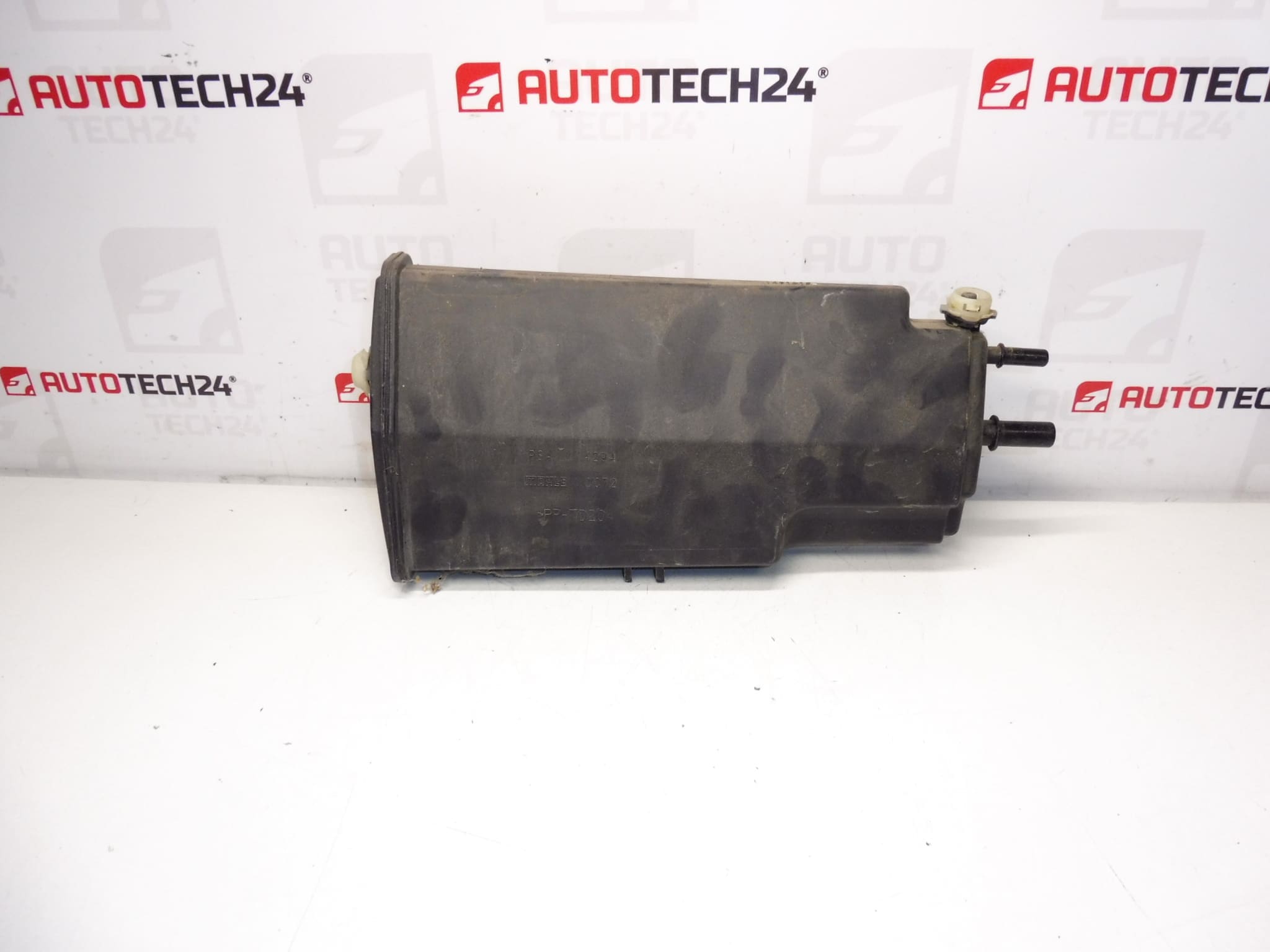

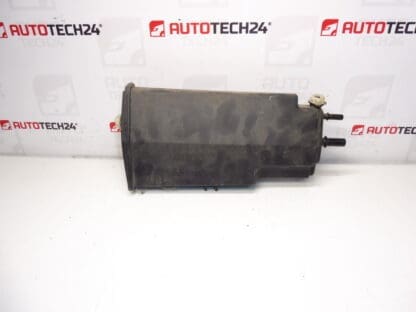

Original fuel vapor tank with active carbon for dogs PSA. This episode (EVAP Charcoal Canister) captures petrol fumes from the fuel tank and burns them via the ventilation valve. It helps reduce emissions, prevent fuel odor around the car and stabilize the pressure in the tank. Suitable solution for service repairs and home workshop, especially where the priority is a match with the original construction.
Typical manifestations of defects are the odor of gasoline around the car or in the garage, difficult refueling (blasting of the gun), hissing when opening the lid of the tank or EVAP error codes (eg P0441, P0443, P0446). Damage occurs most often due to age and soaked moisture, mechanical cracking of the body of the tank or frequent “refilling after click” when refueling, when active coal easily overlap.
The replacement is usually straightforward: the tank is located near the fuel tank, usually at the rear axle. It is necessary to lift the vehicle safely, release the bracket, disconnect quick couplings and vacuum/ventilation hose and replace the piece by piece. It is recommended to check the condition of the hoses, the seal and the valve function at the same time. After assembly, fry any error codes and check the EVAP tightness tightness. The part is designed for petrol versions where the tank ventilation system with activated carbon is used.
It is an original part of a PSA with product number 1502H6, which is kept as NFP (finished production). It is all the more important to verify the conformity by the part number – the compatibility is best confirmed by comparison with the original components or via VIN.
technical information
- Manufacturer: PSA (Citroën/Peugeot)
- Model: Citroën C4 II; Peugeot 308
- product codes: 1502H6; 1502.H6
- additional numbers: 1502 h6; NFP (discontinued production in a dog)
For trouble -free installation, pay attention to the correct hoses and the locking clips. After replacement, avoid turning the tank that shortens the life of activated carbon. If you are unsure of compatibility, compare the part number 1: 1 with the one on your original magazine, or use VIN verification.
