Description
BSI E01-00 HG SIEMENS CITROEN PEUGEOT 9649627780

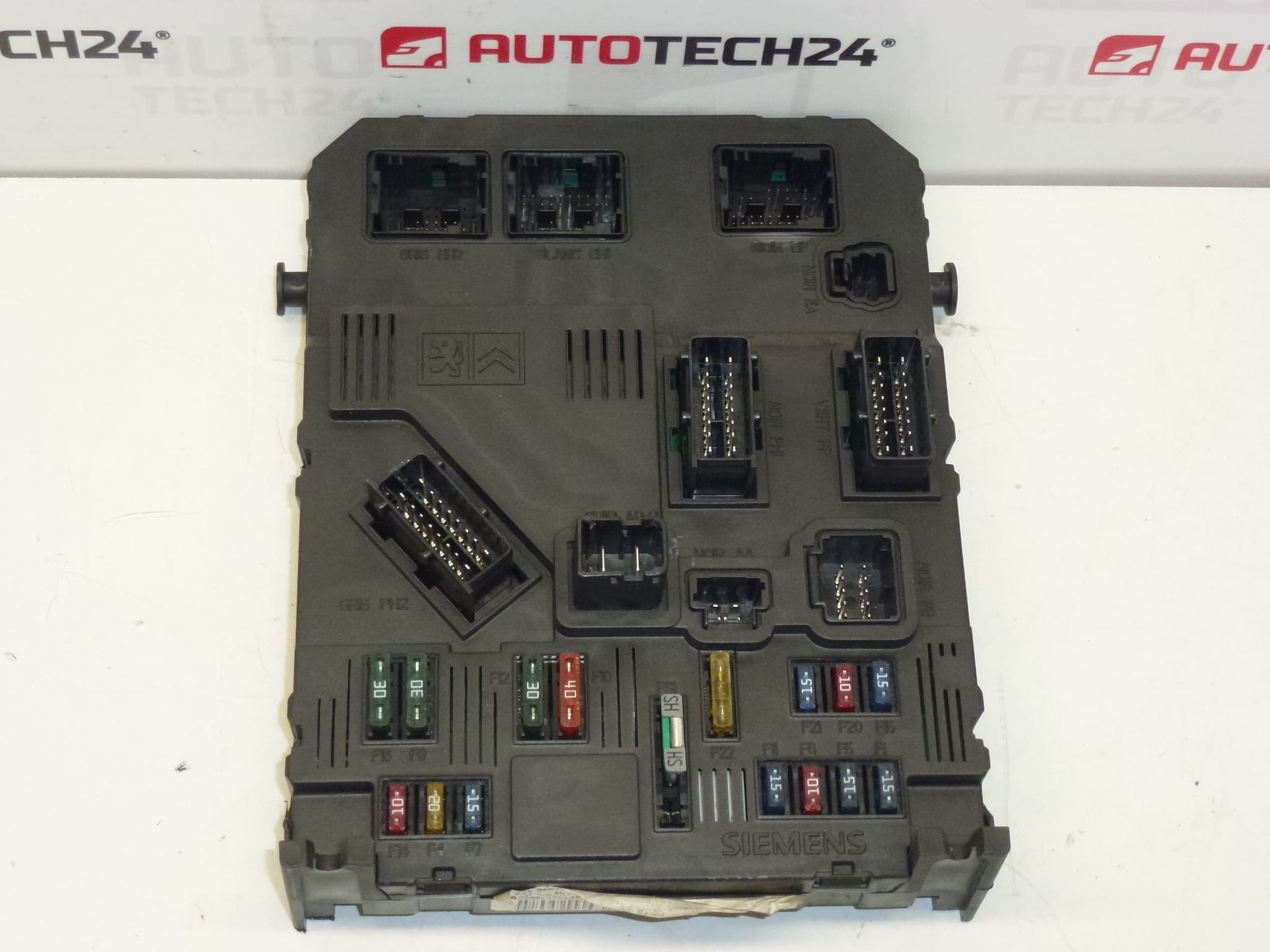

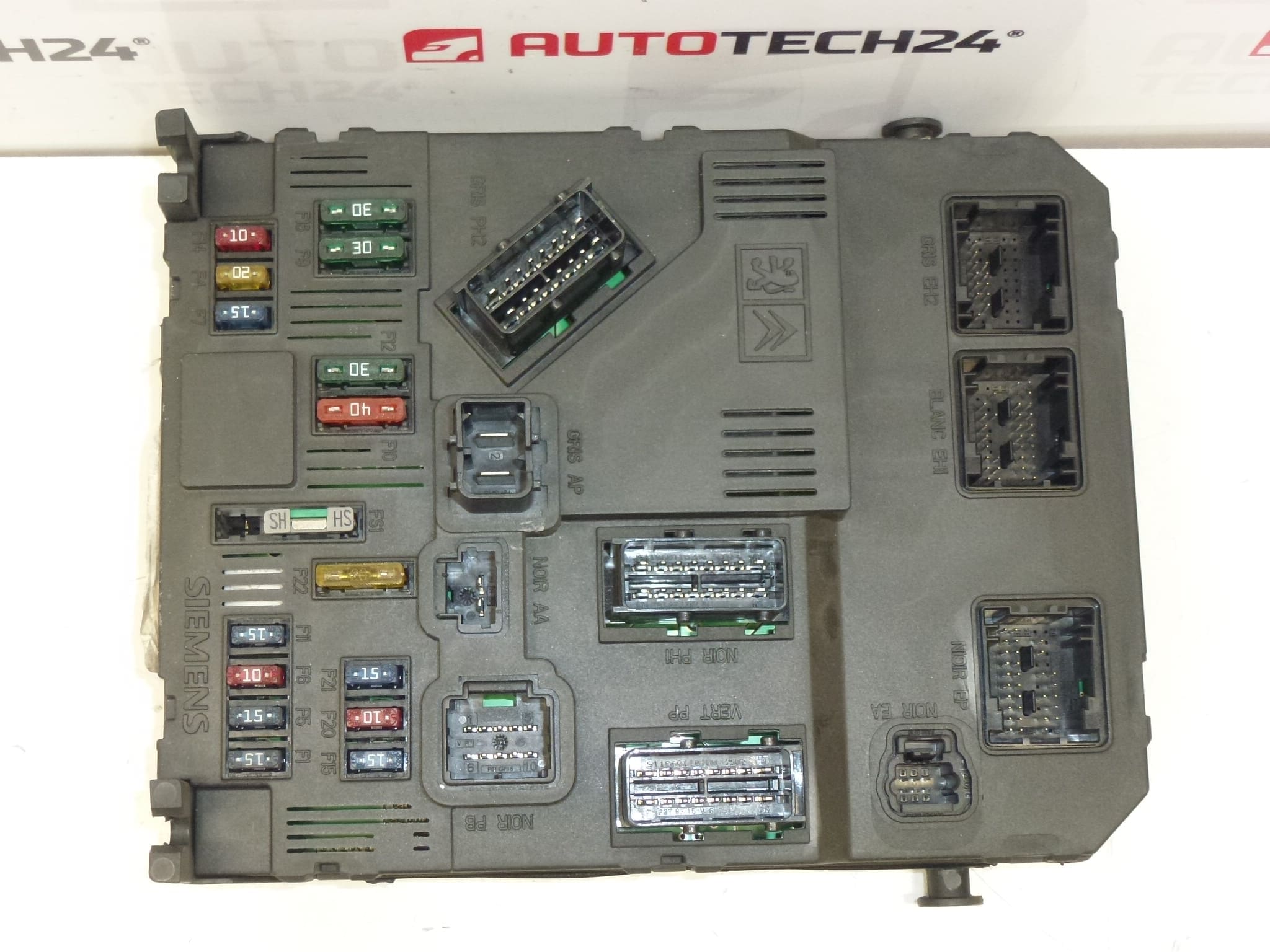

BSI E01-00 Siemens Citroën/Peugeot – 9649627780 6580HE (S118085320A)
Are you looking for a reliable replacement for a faulty BSI comfort unit on PSA cars? We offer a genuine used BSI Siemens E01-00, carefully tested and ready to install. Thanks to the identical codes, it is the ideal choice for quick and professional repair of the electrical network and comfort functions of Citroën and Peugeot.
Key OE/Ref codes to search
– PSA/OE: 9649627780 (96 496 277 80)
– PSA/OE: 6580HE (65 80 HE)
– PSA/OE: 1650882680 (16 508 826 80)
– Siemens: S118085320A
– Type: BSI Siemens E01-00 (HG variant)
Compatibility (approximate according to equipment and year of manufacture)
– Citroën Berlingo M59 (approx. 2002–2008)
– Peugeot Partner M59 (approx. 2002–2008)
– Peugeot 206 (approx. 1999–2007)
– Citroën Xsara Picasso (approx. 2000–2010)
Note: Always verify with BSI that codes and variants match the original part. Different equipment (fog lights, central unit, electric windows, etc.) may require exactly the same version.
What does a BSI unit do?
– Controls comfort and body functions: central locking, wipers, lighting, turn signals, immobilizer, on-board network.
– Communicates via the VAN/CAN bus with other control units.
– Stores car configuration and immo data (required when swapping/cloning).
Technical information
– Manufacturer: Siemens (PSA module BSI)
– Type/Index: E01-00 (HG variant)
– Power supply: 12 V
– Communication: VAN/CAN (PSA platforms)
– Location in the car: interior under the dashboard (at the fuse box)
– Data storage: EEPROM (typically 95160) – contains configuration and immobilizer
Part condition
– Used original, fully functional, dismantled from an operable car.
– Visually inspected, connectors undamaged, unit dry.
– Base tested before shipping; warranty to try.
Assembly and programming – important
– The unit is not plug & play without data transfer. For the proper functioning of the engine and comfort systems, it is necessary:
1) Clone/transfer EEPROM from original BSI (recommended – will retain VIN, PIN, configuration), or
2) Virginization and subsequent programming with diagnostics (Lexia/PP2000/DiagBox) with the car’s PIN code.
– For problem-free assembly, we recommend keeping the same codes: 9649627780 / 6580HE / E01-00 (HG).
– Installation and coding should be performed by an experienced car electrician/mechanic.
Typical symptoms of a faulty BSI that this replacement addresses
– Unable to start (immobilizer), communication failures, angry central locking, wipers, direction indicators or interior lighting, spontaneous behavior of electrical appliances.
Package contents
– 1× BSI unit Siemens E01-00 (HG) – without keys and transponders.
Why choose this piece?
– Original Siemens PSA part with verified codes 9649627780 / 6580HE / 1650882680 / S118085320A.
– Quick repair solution with the possibility of cloning – minimal intervention in the car’s configuration.
Tip before buying
– Compare the numbers on your old BSI label with the codes above.
– In case of confusion, write us the VIN and code of your unit – this will help to verify the suitability of the part for your particular car.
Catalog listing
– Category: BSI – comfort unit / Electrical components / Control units
– Tags: Citroën Berlingo, Citroën Xsara Picasso, Peugeot 206, Peugeot Partner
Keywords (for easier search)
– BSI Siemens E01-00 HG, comfort unit, body control module BCM PSA, body control unit, 9649627780, 6580HE, 1650882680, S118085320A.
