Description
Digital heating control and Peugeot 308

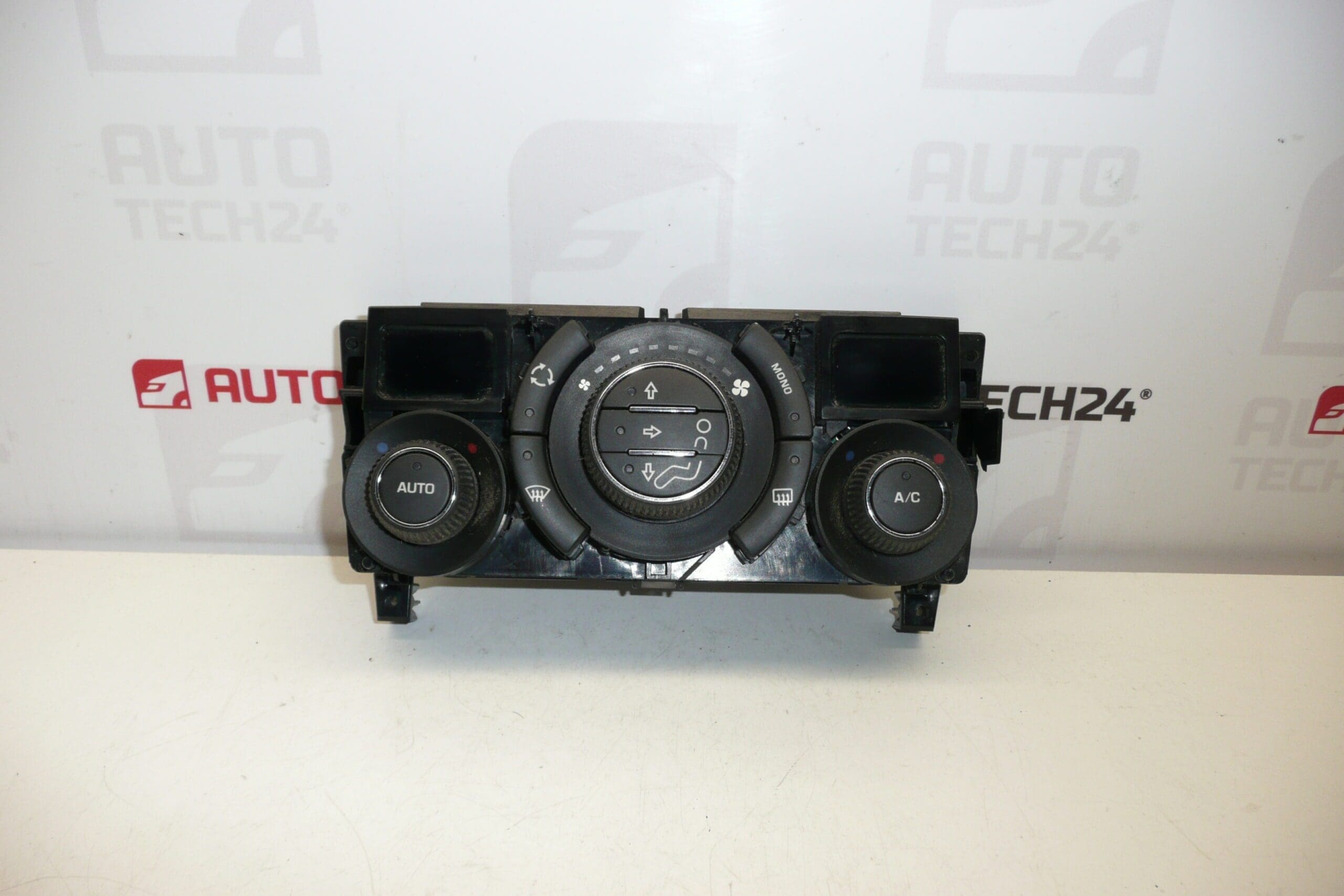

Digital control panel heating and air conditioning for Peugeot 308. This is the original part of the PSA concern with the designation 96850724XT / 6452J4. The ideal replacement when the original panel shows errors, does not respond to the press of buttons, the fan control or the underflies does not work.
The panel is used to control the temperature, air distribution, fan intensity and other HVAC functions. Thanks to the same connectors, the assembly is usually plug & play – just replace the original unit for this with the same code. We always recommend comparing the part numbers (96850724XT, 6452J4) with a label of your original part for 100% compatibility.
when the panel to change
- Unact or “dead” buttons, non -functional roller/driver
- Incorrect or fluctuating temperature and fan control
- shutting down or non -functional backlight, unreadable display
- Air conditioning error messages without demonstrable compressor/fan defects
mounting tips for car mechanics
- Before dismantling, disconnect the minus pole of the battery for BSI.
- Remove the center console frame, release the brackets and pull out the panel (usually Torx screws).
- disconnect the connectors, put the new unit with the same code and check the HVAC features.
- After assembly, it is advisable to delete any error codes with diagnostics and perform a functional test of flaps/fan.
Compatibility
Designed for Peugeot 308 first generation (T7). Suitable for hatchback, SW and CC within the 308 T7 model series. Usually coding is not required; The decisive factor is to match the part number given on the label of the original unit.
Technical information
Manufacturer: PSA / Peugeot (OE)
Model: Peugeot 308 (T7, approx. 2007–2013), incl. SW and CC

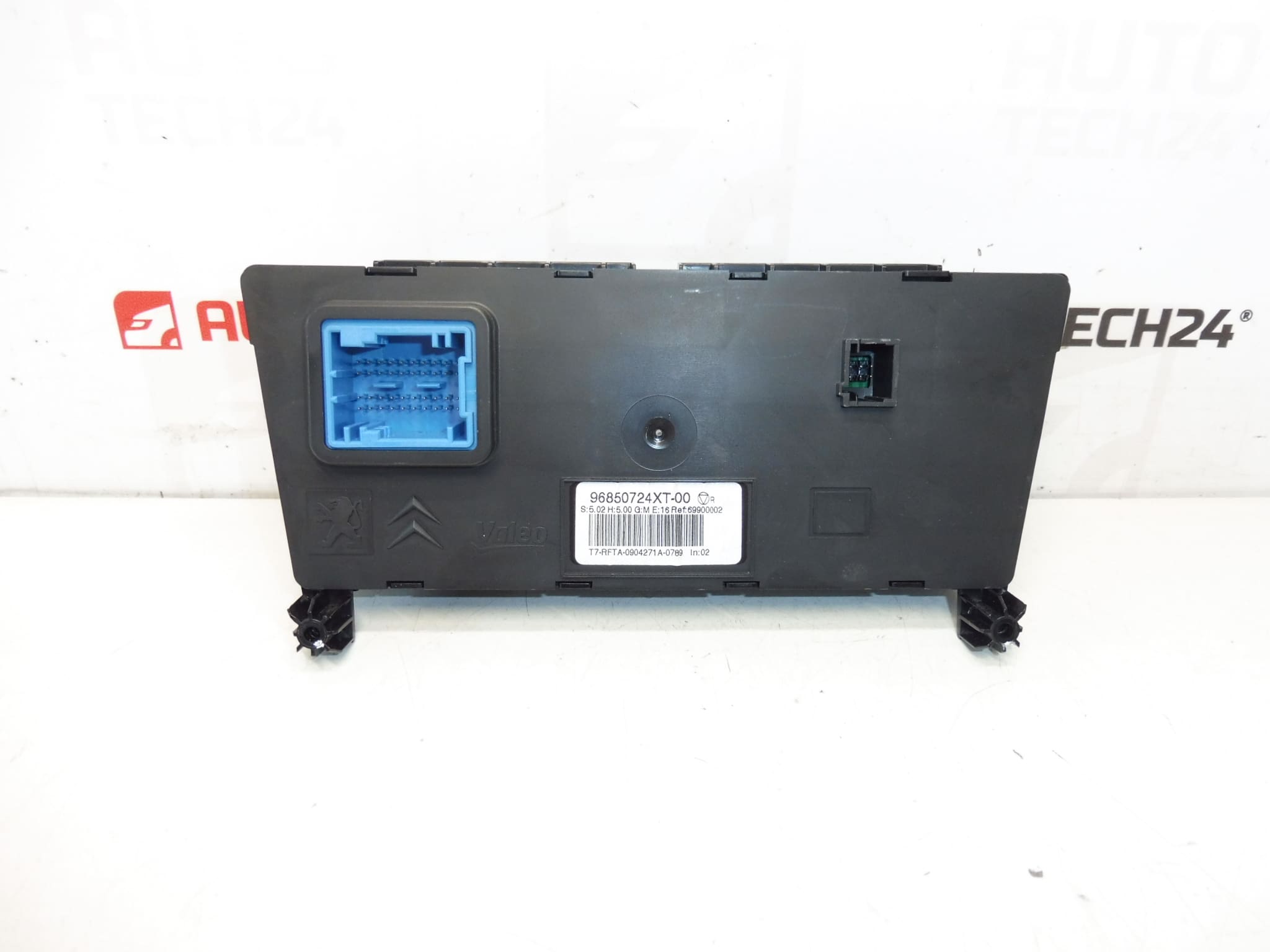

product codes: 96850724XT; 96850724XT-00; 6452J4; 6452.J4
additional numbers: 96 850 724 XT; 96850724XT00; 6452 J4
This is the original part used. The condition corresponds to normal wear wear. Always compare the numbers and photos with your original panel for the correct selection.
