Description
Primary Auxiliary Wiring Harness For Battery Positive Terminal For Citroën And Peugeot Vehicles

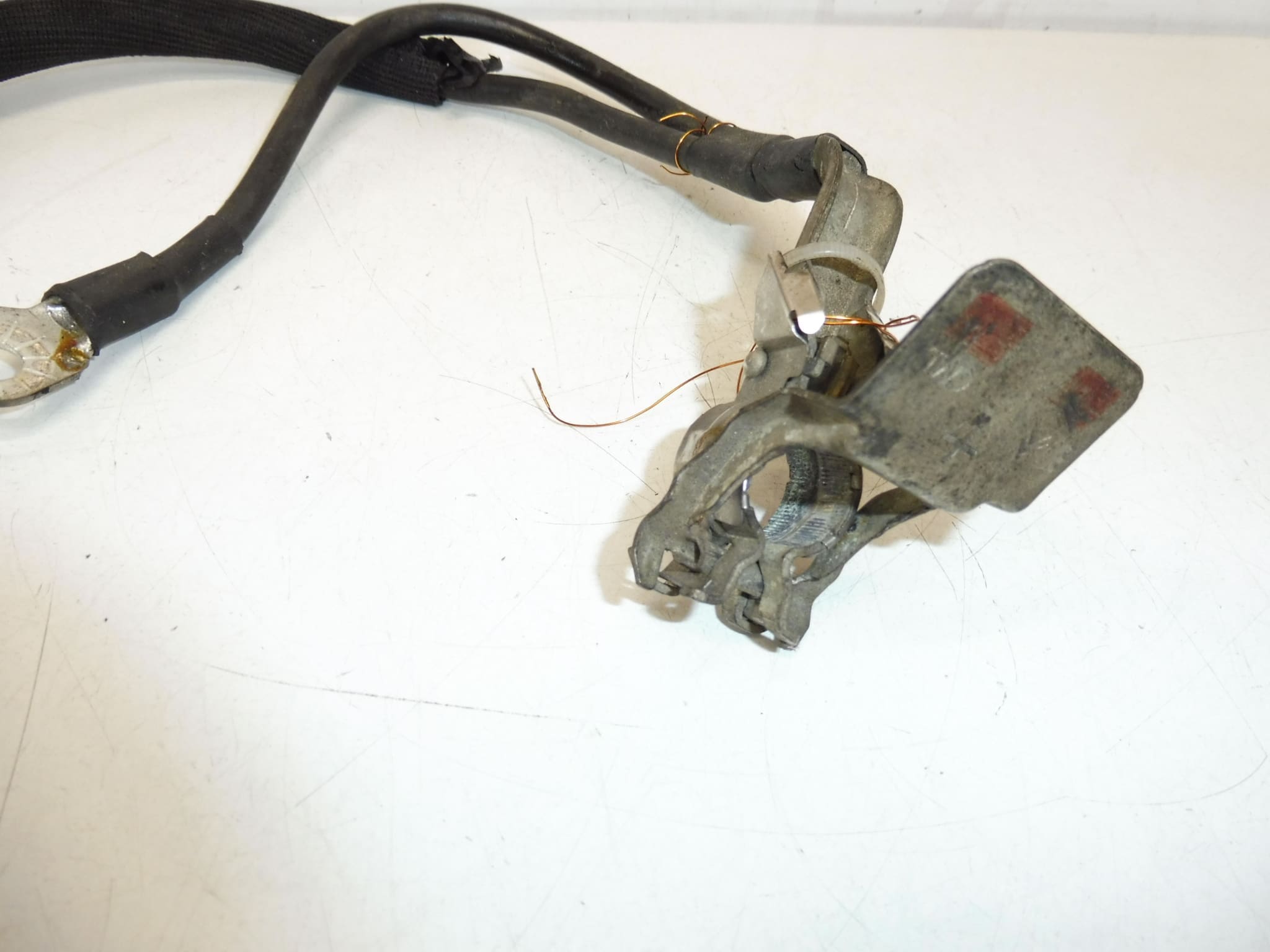

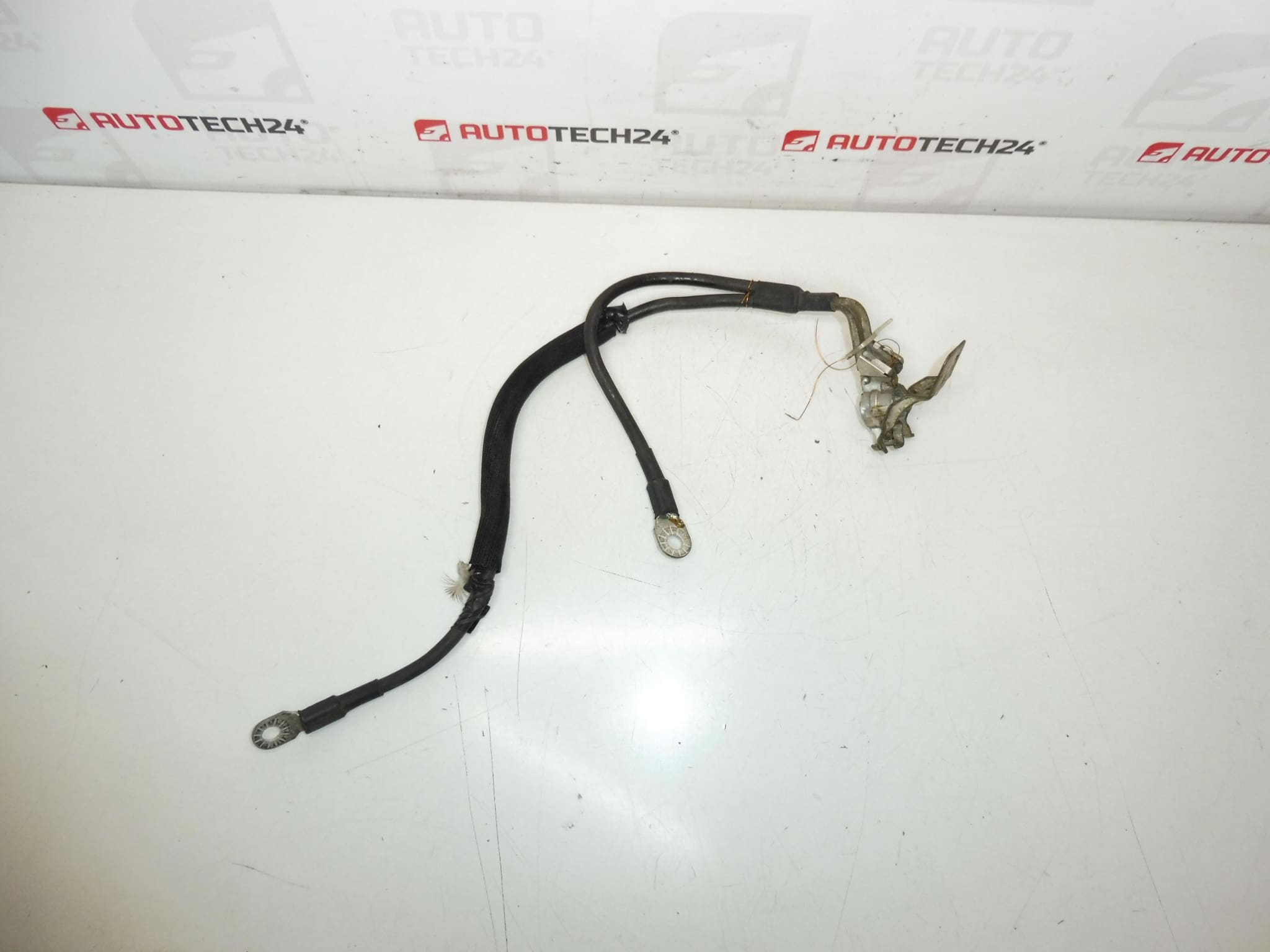

This Main Positive Battery Pole Wiring Harness (OEM Codes 9675107780 / 5642ZV) is a direct-fit electrical feed designed for Citroën and Peugeot models with 1.6 HDi engine layouts. Built to route and protect the main positive supply from the battery to starter, alternator and power distribution points, this harness is a common replacement part for workshops and DIY enthusiasts tackling charging or starting system faults.
Features
- Direct Fit For Specified Citroën And Peugeot Models
- Supplies Main Positive Feed To Starter, Alternator And Fuse/Relay Box
- Robust Insulation And Factory Connectors For Reliable Electrical Contact
- Simplifies Replacement Of Aged, Corroded Or Mechanically Damaged Wiring
- Recommended For Vehicles With 1.6 HDi Engine Configuration
Technical Information
- Manufacturer: Stellantis / Citroën / Peugeot
- Model: Citroën C4, Citroën C4 II, Citroën C4 Picasso, Peugeot 3008 I, Peugeot 308, Peugeot 5008 I
- Product Codes: 9675107780, 5642ZV
- Additional Numbers: Not Provided
Application And Compatibility
Fits Many Citroën And Peugeot Vehicles Equipped With 1.6 HDi Engines Including Models Listed Above. Depending On Model Year And Equipment Level, The Harness Routes Under The Battery Tray Or Along The Engine Bay Bulkhead To Deliver Positive Power To The Starter Motor, Alternator And Power Distribution Modules. Always Match The OEM Product Codes When Searching For A Direct Replacement.
Function And Typical Symptoms Of Failure
This Harness Carries The Main Positive Voltage From The Battery To Key Electrical Consumers. When The Harness Or Its Connectors Degrade, Common Symptoms Include Difficult Or No Crank, Intermittent Loss Of Electrical Power, Slow Cranking, Charging System Warnings, Blown Fusible Links, Or Visible Heat Damage At Terminals. Visual Inspection Often Reveals Corroded Terminals, Melted Insulation Or Damaged Connectors.
Most Common Causes Of Failure
- Corrosion At Battery Terminals And Connector Pins Causing High Resistance.
- Heat And Vibration Leading To Insulation Cracking Or Conductor Fatigue.
- Mechanical Damage During Previous Repairs Or From Poor Routing And Chafing.
- Battery Acid Exposure Accelerating Corrosion.
- Rodent Or Environmental Damage To Insulation And Wiring.
Installation Recommendations
- Always Disconnect The Battery Before Starting Work And Follow Manufacturer Procedures To Prevent Short Circuits And Component Damage.
- Remove Battery And Battery Tray If Necessary To Access The Harness Routing And Fastening Points.
- Compare New Harness To The Old Unit For Connector Types, Clip Locations And Lengths Before Installation.
- Clean All Mating Terminals And Apply Appropriate Corrosion Protection Where Recommended. Use Correct Torque Values For Battery Clamps And Bolts As Specified By The Manufacturer.
- Secure Harness With Factory Clips Or Cable Ties To Prevent Chafing; Avoid Proximity To Hot Exhaust Components.
- After Installation, Check Charging System Voltage At Idle And During Cranking To Confirm Proper Function. Verify That All Fuses And Fusible Links Are Intact.
- Recommended Tools: Metric Socket Set, Torque Wrench, Multimeter, Terminal Cleaner, Cable Ties.
Why Replace This Part
Replacing A Degraded Positive Battery Harness Restores Reliable Power Delivery, Eliminates High-Resistance Joints That Cause Heat And Voltage Drop, And Prevents Repeat Failures Affecting Starter And Charging Performance. For Professional Repair Shops And Experienced DIYers, Installing A New OEM-Equivalent Harness Is A Cost-Effective Way To Resolve Intermittent Electrical Faults Related To The Main Positive Feed.
