Description
Heater servo motor for Citroën C4 Picasso, Citroën Berlingo and Peugeot Partner (second generation). HVAC motor reducer.
Product Overview

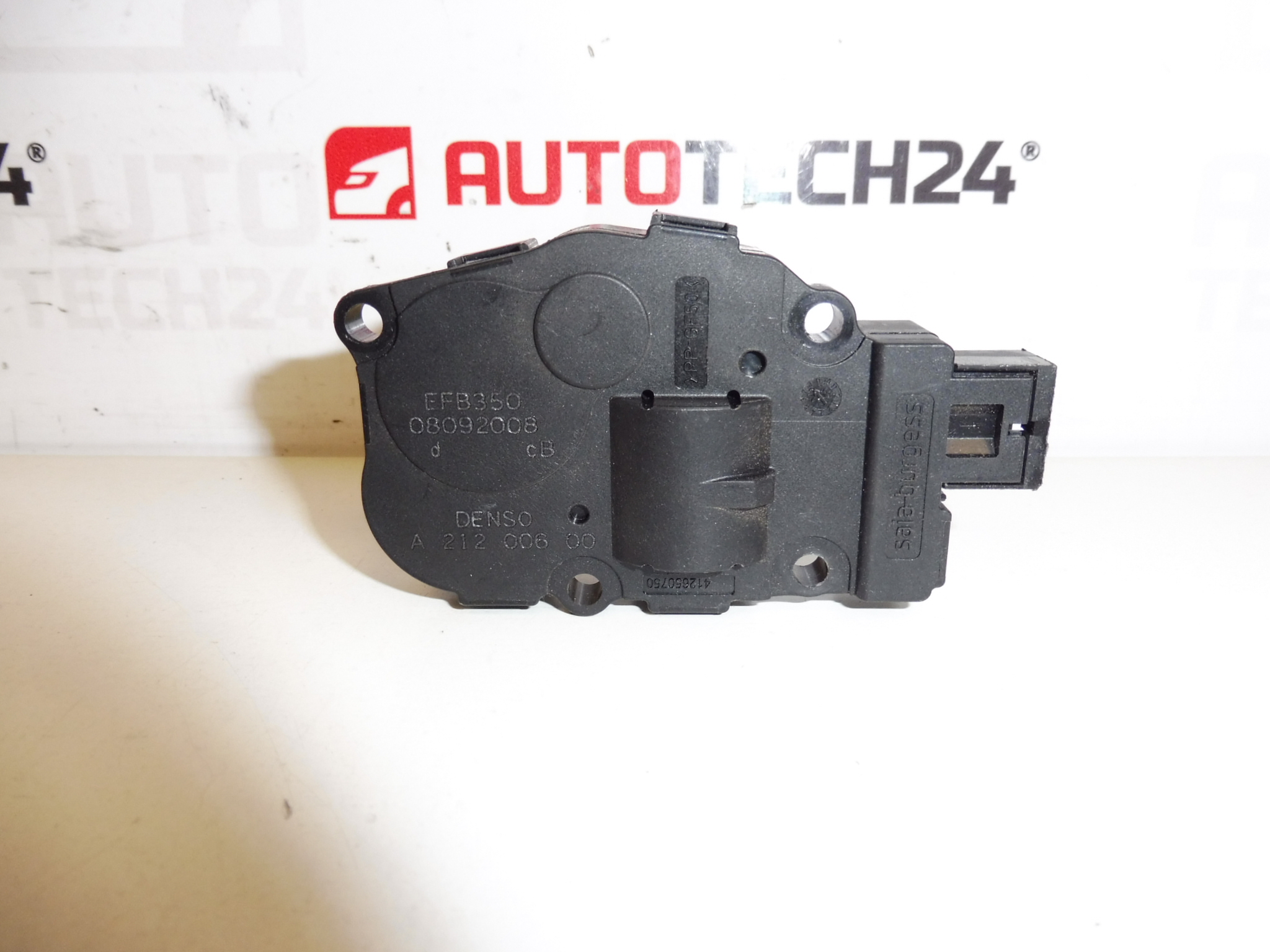

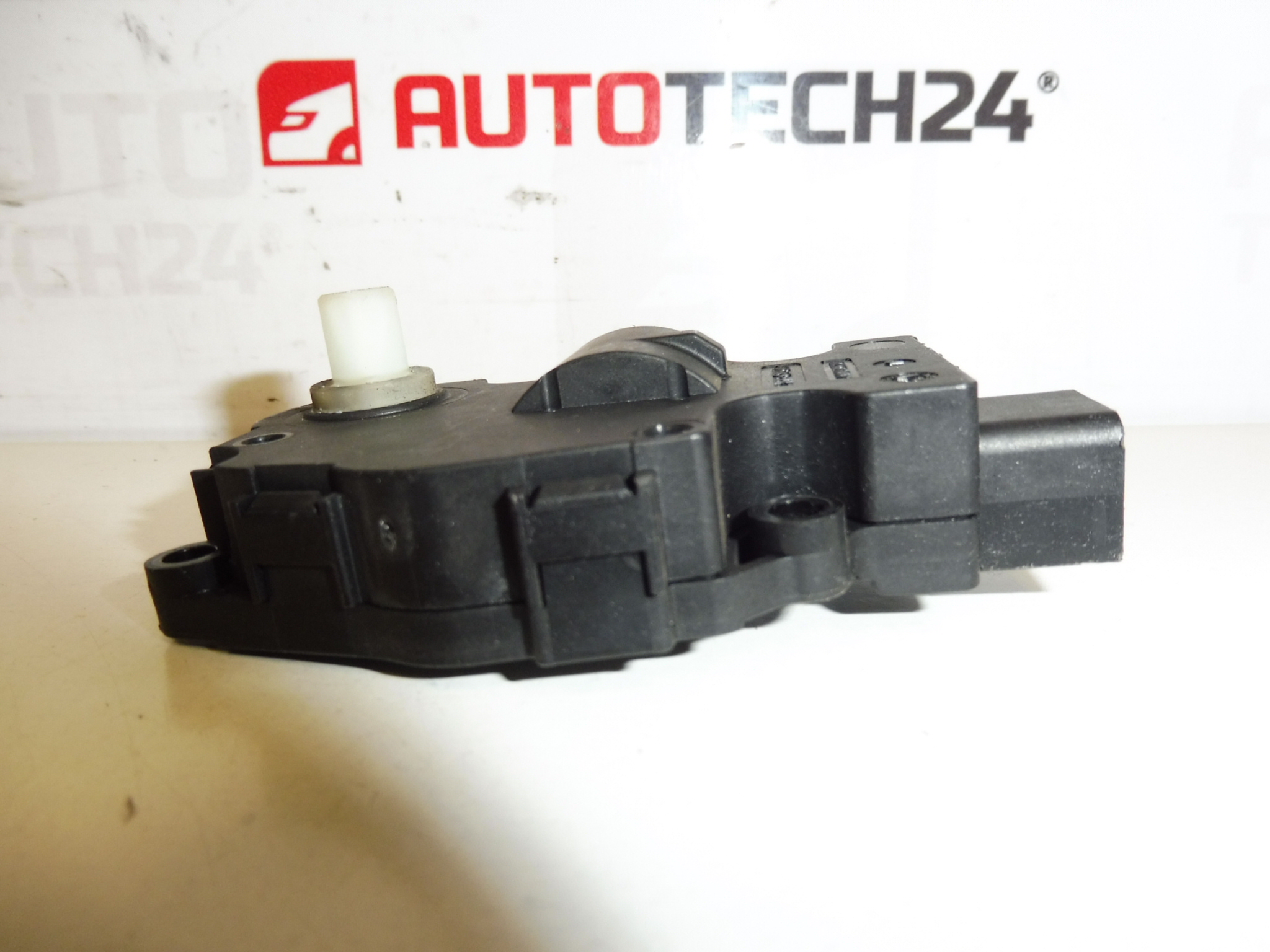

This used Denso heater servo motor (HVAC actuator) is an economical replacement part for steering airflow and blend doors in heating and ventilation systems of selected Citroën and Peugeot models. Frequently searched by product codes A21200680, A21200600, EFB350 and 6447XA, the unit controls flap movement inside the heater box to direct airflow and regulate cabin temperature. Ideal for professional workshops and competent DIY mechanics who need a direct-fit solution to restore proper climate control operation.
Function And Symptoms Of Failure
The servo motor drives the small gears and linkage that move mode and blend flaps inside the HVAC housing. Typical symptoms of a failing servo include: stuck or incorrect airflow direction, inability to switch between hot and cold air, continuous noise from the dashboard area (grinding or clicking), and intermittent operation or total loss of flap movement. These symptoms often appear gradually as gear teeth degrade or the motor weakens.
Common Causes And Expected Lifetime
Failures are most often caused by worn or stripped plastic gears, contaminated or corroded internal components, seized shafts, or electrical motor burnout. Moisture intrusion and age-related wear are frequent contributors. Under normal conditions many units last several years, but in vehicles exposed to heavy use, high humidity or debris in the HVAC system the service life can be considerably shorter.
Installation Recommendations
Installation requires basic automotive electrical and interior trim skills. Typical replacement steps:
- Disconnect the negative battery terminal before starting work.
- Access the heater box—this usually involves removing the glovebox or lower dashboard panels to reach the actuator mounting location.
- Unplug the electrical connector and remove the retaining screws.
- Swap the old unit for the replacement, secure with screws and reconnect the plug.
- Reconnect the battery and cycle the HVAC controls to verify correct operation and silence of mechanical noise.
Use appropriate trim tools to avoid damaging panels. After installation, run the HVAC through all modes and temperature settings to confirm smooth flap movement. If unusual resistance or noise persists, re-check linkage alignment and connector seating.
Why This Part Is Often Replaced
HVAC servo motors are wear items because they operate frequently and often under dusty or humid conditions. Plastic gearing is cost-effective but prone to wear and stripping over time. Electrical overloads, intermittent short circuits or connector corrosion can also cause motor failure. Regular inspection of the HVAC system and filter replacements help reduce debris entry and prolong actuator life.
Technical Information
- Manufacturer: Denso
- Model: Citroën C4 Picasso; Citroën Berlingo; Peugeot Partner (2nd generation)
- Product Codes: A 21200680, A 21200600, EFB350, 6447XA
- Other Numbers: Stellantis / OEM cross-references may use the above codes
Notes For Mechanics
This part is commonly searched by its product code—include the code in your parts search to speed identification. Ensure the actuator orientation and linkage attachment match the original when fitting. If multiple actuators are fitted to the same vehicle (mode, recirculation, blend), verify which flap is malfunctioning before replacing parts.
