Description

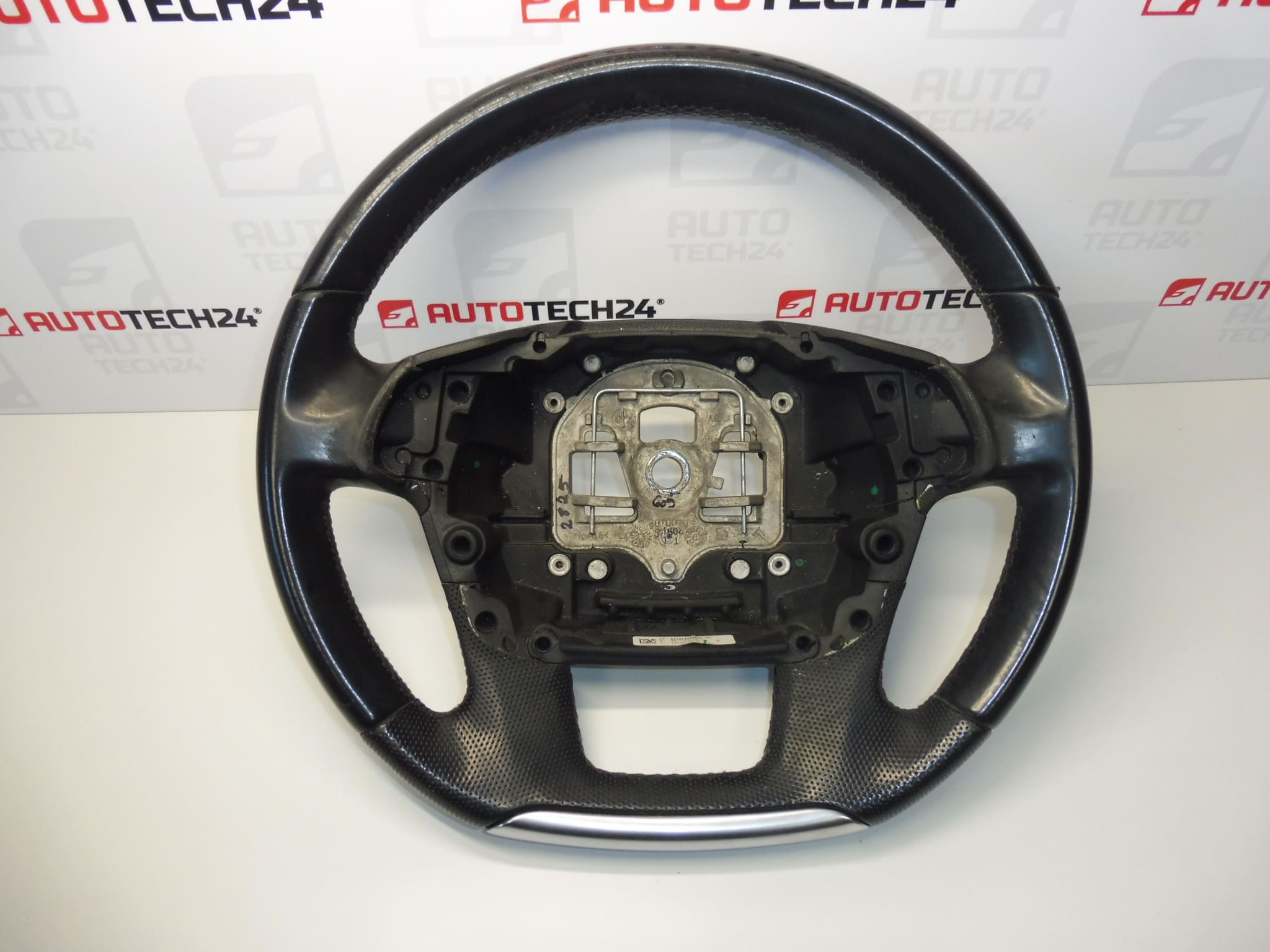

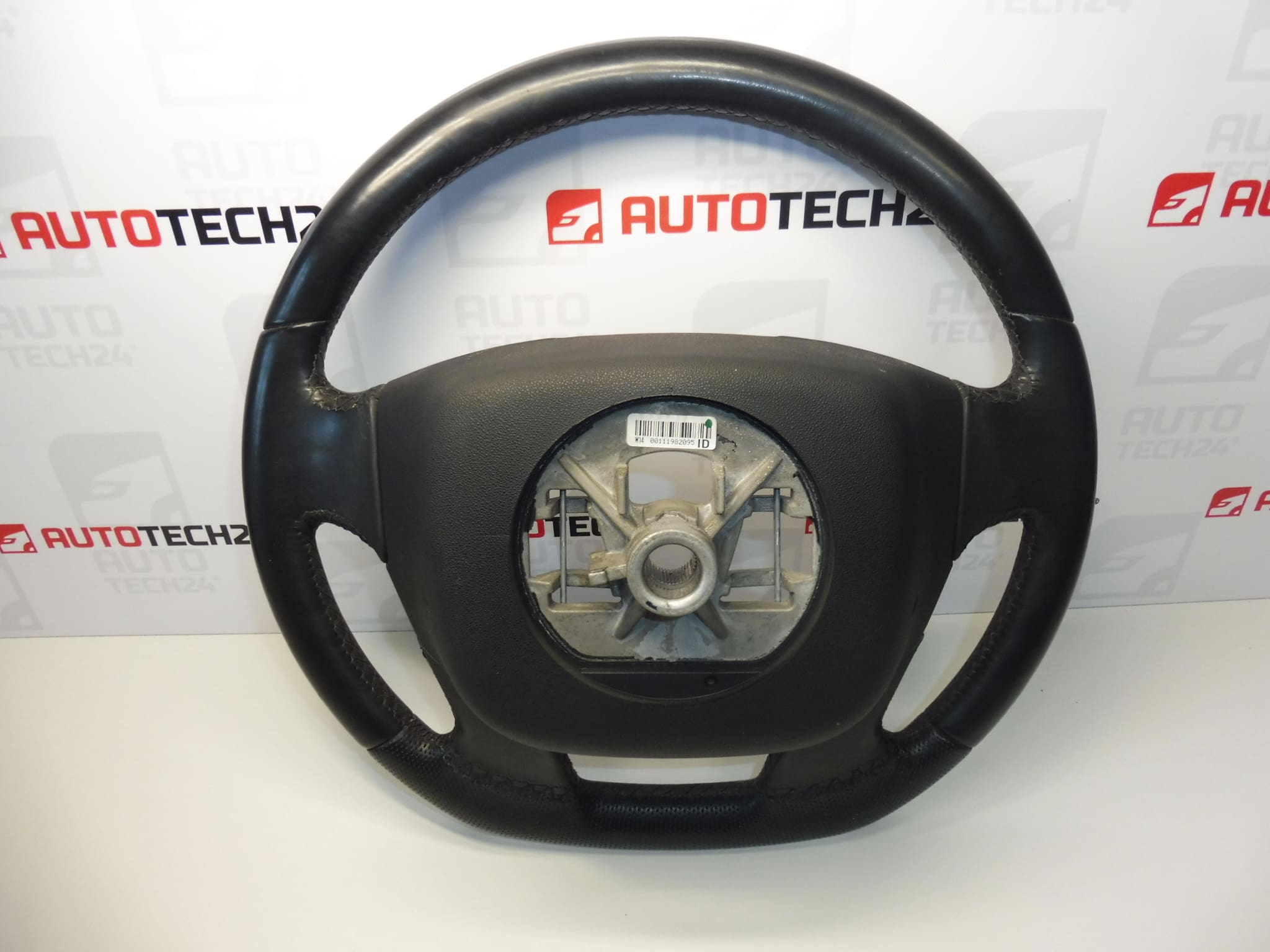

Steering wheel for Citroën C4 II and DS4 without integrated VMF control unit – this can be purchased separately. Lower part of the steering wheel is made of non-perforated leather. Split Leather – L037. HZD – Black Mistral.
This OE-style steering wheel is designed for technicians and experienced DIYers who need a direct-fit interior replacement for Citroën C4 II and DS4 models. The wheel features a high-contact lower rim in non-perforated split leather (L037) finished in Black Mistral, providing a durable and OEM-correct feel. The product is commonly searched by part numbers listed below, so use those codes when locating the exact match.
Technical Information
- Manufacturer: Stellantis (Citroën / Peugeot)
- Model: Citroën C4 II, DS4
- Product Codes: 96754515ZD, 98039712ZD, 96700162ZD, 4109QT
- Other Numbers: Leather Type L037; Color Code HZD – Black Mistral
Fitment And Function
The steering wheel provides the mechanical interface between driver and steering system and serves as the mounting point for controls, trim, and the airbag module (where applicable). This listing does not include an integrated VMF (multifunction interface) controller; that component can be sourced separately if you need steering wheel-mounted switch functionality. The wheel is intended to match interior trim and restore a factory look and feel.
Replacement Procedure
- Disconnect the battery and wait at least 10 minutes before touching airbag-related components to allow residual charge to dissipate.
- Center the front wheels and mark the steering column spline position relative to the wheel to ensure correct alignment on reinstallation.
- Carefully remove the airbag module following manufacturer guidelines; handle and store it with the cover facing upward.
- Remove the central retaining nut and use a proper steering wheel puller to remove the wheel from the column without damage.
- Transfer any required switches or trim pieces if not included, fit the replacement wheel, tighten to the manufacturer’s torque specification, and reconnect connectors.
- After fitting, verify steering angle alignment and reset electronic aids if required using appropriate diagnostic equipment.
Installation Recommendation
Due to the presence of airbag components and possible steering angle sensor calibration, installation is recommended for experienced technicians or competent DIYers who have the correct tools. Always follow the vehicle manufacturer’s disassembly/reassembly steps and torque specifications. If the vehicle requires recalibration of safety or driver assistance systems after replacement, use a compatible diagnostic tool.
Why This Part Fails Most Often
Visible wear on steering wheels typically results from constant hand contact: oils, dirt, abrasion, and UV exposure gradually degrade leather and stitching. The lower rim area often shows the first signs of wear from repeated gripping. Additional causes of failure include deterioration of glued seams, delamination of leather over time, and damage during improper removal or forced installation. Electronic faults (for multifunction variants) usually stem from worn contacts or damaged ribbon cables, though this listing does not include the VMF controller.
Order by using the product codes for fast matching: 96754515ZD, 98039712ZD, 96700162ZD, 4109QT. Suitable for Citroën C4 II and DS4 interior restorations where original look and tactile quality are required.
