Description
Right front passenger seat belt
For PEUGEOT 206 206+
cars
Color FXX – BLACK

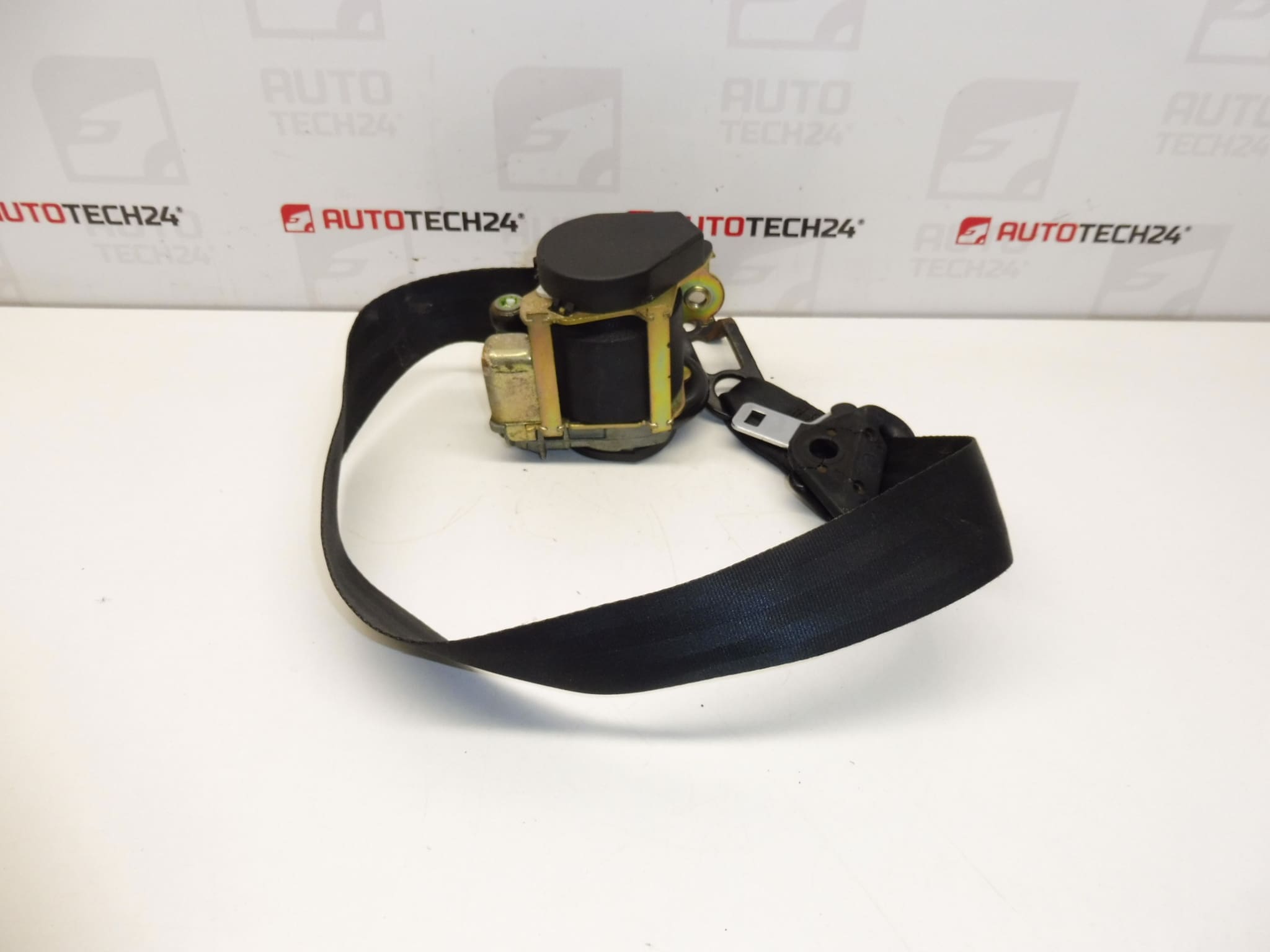

Original right front safety belt with pyro pretensioner (pyro belt) – Peugeot 206 / 206+, color FXX (black). Used, original PSA part – fits exactly, saves repair time and restores full passive safety functionality to the car.
Key benefits
– Original PSA part: correct belt length, grips and winder angle for the right front side
– Complete right front passenger belt with pyrotechnic pre-tensioner (tensioner)
– FXX interior color – black
– Suitable for quick replacement after an accident or in the event of a winding failure
Compatibility
– Peugeot 206 (approx. 1998–2009) – right front side
– Peugeot 206+ (approx. 2009–2013) – right front side
Note: For 3D vs. 5D body may vary belt length. Always match the part number, mounts and belt guides against your VIN and the product photo.
OEM/PSA part numbers (alternatives, replacements)
– 96361048XX
– 8973SG / 8973.SG / 8973-SG
– 8973WL / 8973.WL / 8973-WL
– 8973WJ / 8973.WJ / 8973-WJ
– 8974GV / 8974.GV / 8974-GV
If you are searching by code, compare the exact designation on the label of your original part.
Technical information
– Location: right front belt (passenger on left-hand drive cars)
– Type: automatic winder with pyrotechnic tensioner (pyro cartridge)
– Color: FXX – black

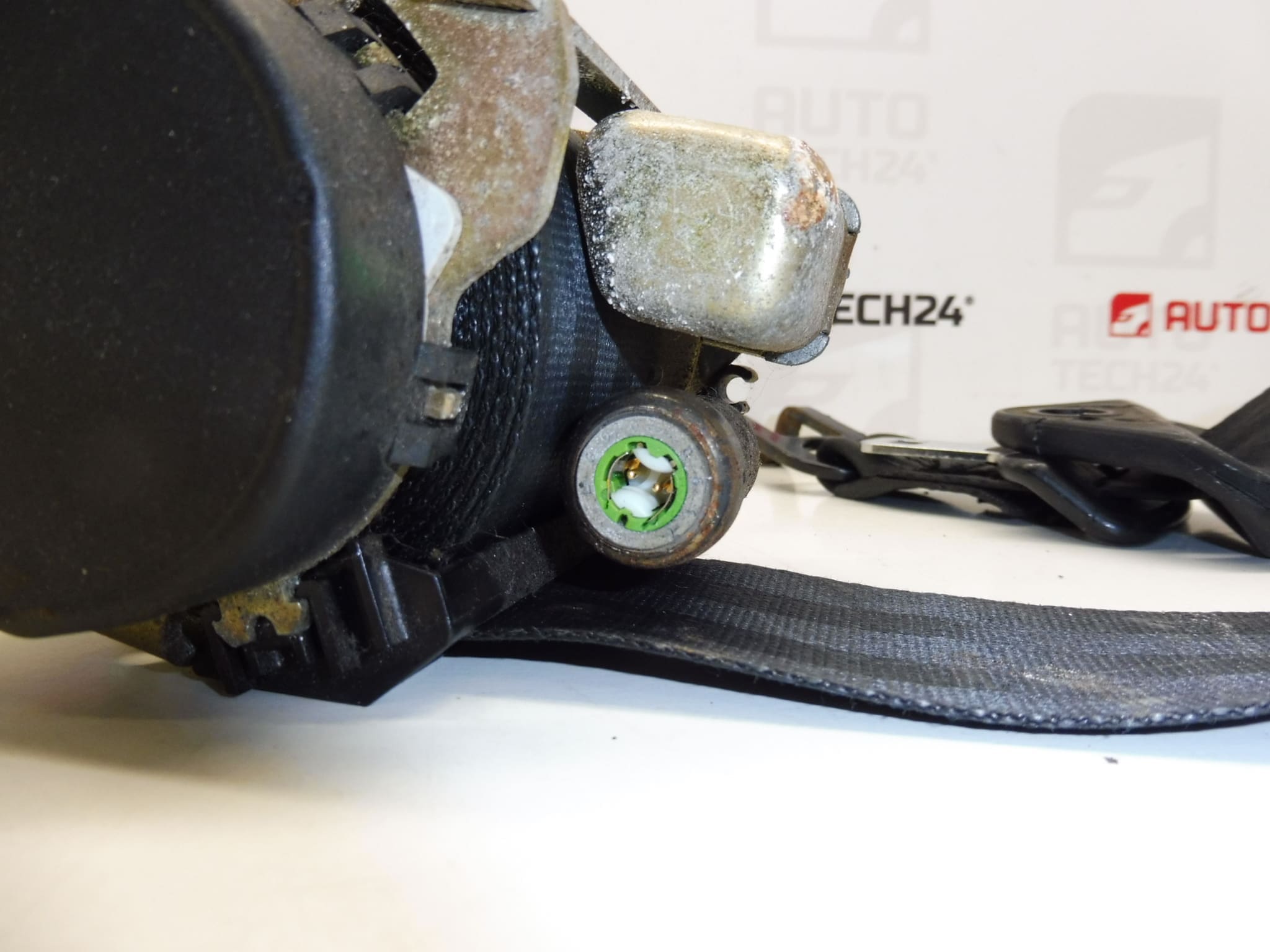

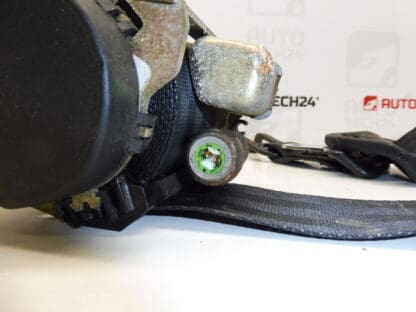

– Pre-tensioner connector: yellow 2pin (PSA SRS type)
– Belt width: approx. 47-49 mm (standard)
– Fastening: B‑pillar + lower point at the door sill; upper guide depending on the car’s equipment
– Condition: used original part; normal wear and tear. See product photos for completeness and cosmetic condition.
Important installation information
– Disconnect the battery and wait min. 10-15 minutes.
– Do not connect measuring devices to the pyro cartridge. After installation, it is usually necessary to delete SRS errors via diagnostics (Diagbox/Lexia/PP2000).
– Observe the belt screw tightening torques according to the PSA service manual.
– If the airbag/pretensioner has been activated in the car, check other related SRS components as well.
Who is the piece ideal for?
– Auto mechanics and home repairers who need to quickly and safely replace a malfunctioning or activated right front seat belt on the 206/206+.
Tip for the right choice
– Verify interior color (FXX), part orientation (right front), connector type and OEM code match with your original part. For 3/5 door versions, compare belt length and guide.
