Description
Heater and air conditioning control for Citroën Berlingo K9, Peugeot RIFTER and Opel COMBO vehicles
The display’s protective glass has a small crack; fully functional
Part description

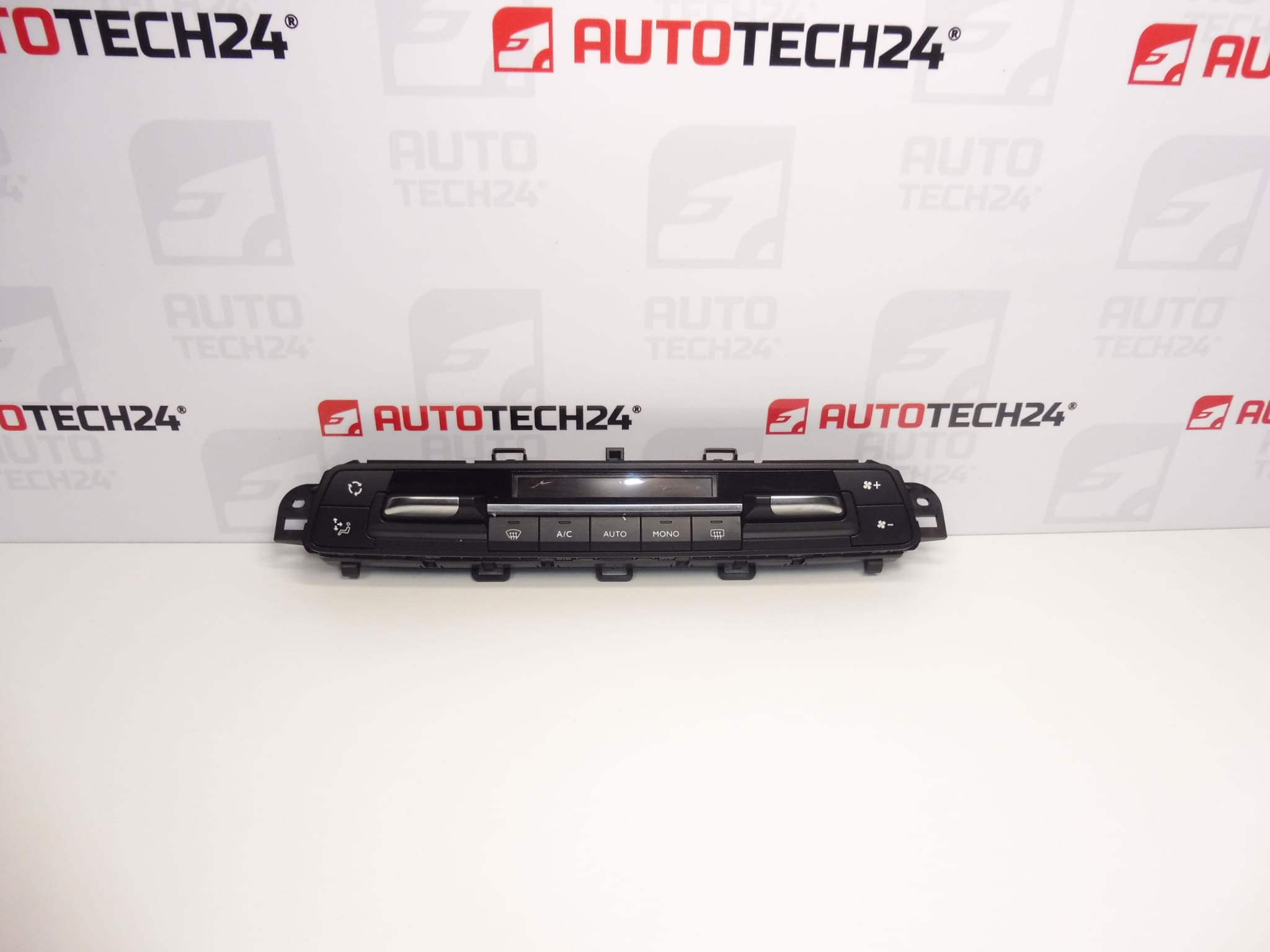

Used heater and air conditioning control unit 98075402ZD is used to operate the vehicle’s heating and air conditioning. It is intended for the vehicles listed in the documentation: Citroën Berlingo K9, Peugeot RIFTER and Opel COMBO. When selecting a replacement, compare in particular the product number, control panel design and connections with the original part.
According to the description, the part is fully functional, but the display’s protective glass has a small crack. This is an option for replacing a faulty control unit for customers who prioritise functionality over flawless appearance. Take the crack into account when selecting, handling and installing the part.
Technical information
- Manufacturer: not specified; the documentation lists the designation Stellantis CITROEN PEUGEOT.
- Model: Citroën Berlingo K9 | OPEL COMBO E K9 | PEUGEOT RIFTER.
- Part type: heater and air conditioning control unit.
- Condition: used, fully functional according to the description provided.
- Visual damage: small crack in the display’s protective glass.
- Additional numbers: not specified.
Product codes
- Product codes: 98075402ZD.
- Models according to labels: Citroën Berlingo K9 | OPEL COMBO E K9 | PEUGEOT RIFTER.

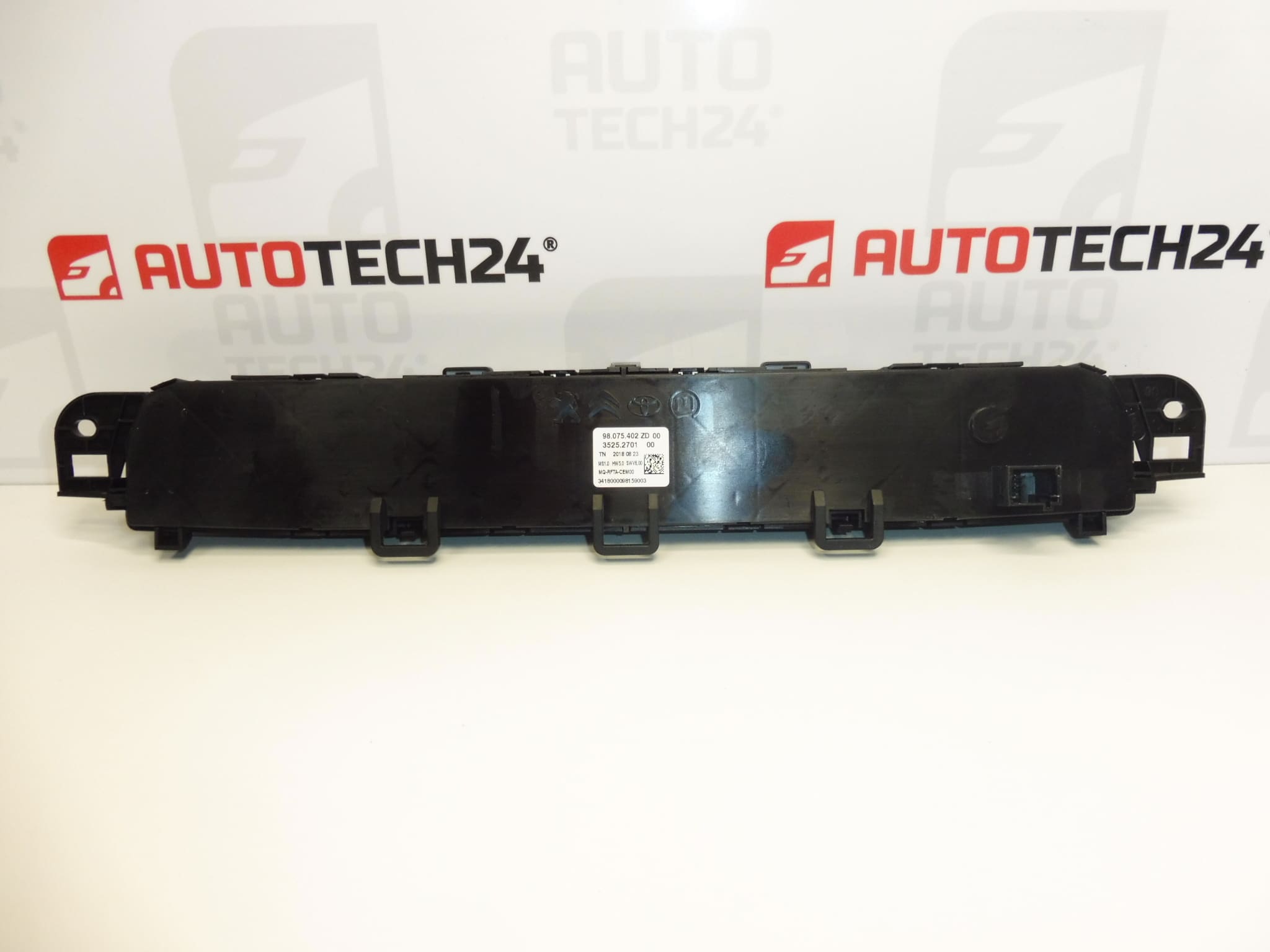

The number 98075402ZD is the primary reference for finding this control unit. When comparing it with the original part, also take into account the connectors, mounting points and arrangement of the controls.
Installation recommendations
The following procedure is general and typical for replacing an electric heater and air conditioning control unit. The exact steps for removing trim, disconnecting the power supply and any required setup depend on the specific model and vehicle configuration. Follow the manufacturer’s service documentation.
1) Before installation
- Compare the product number, panel shape, control layout, connectors and mounting points with the old part.
- Inspect the housing, mounting points and connector contacts. Look for loose parts, deformation, corrosion or signs of moisture.
- For this part, check the condition of the crack in the protective glass. Do not press on the glass or use it as a support point when sliding the panel into place.
- Before replacement, check whether the fault is caused by the power supply, wiring or another part of the system. Replacing the control unit may not resolve such a cause.
2) Tools and materials required
- Plastic tools for careful trim removal.
- Screwdrivers or suitable bits for the fasteners actually used.
- A flashlight, a soft pad for placing removed parts on, and a container for small fasteners.
- If needed, a suitable measuring instrument and diagnostic equipment to check for electrical faults.
3) Step-by-step installation procedure
- Park the vehicle safely, secure it against movement, and switch off the ignition and electrical accessories.
- Following the manufacturer’s instructions, allow the electronic systems to enter their inactive state and disconnect the battery using the specified procedure.
- Protect surrounding surfaces from scratches and check how the trim is attached in the service documentation.
- Carefully release the necessary covers. Do not force the plastic clips or use the display as a point to brace a tool against.
- Release the original control unit’s fasteners and slide it out only far enough to access the electrical connections.
- Note the wiring route and connector positions. Release their locks and disconnect them by pulling on the connector body, not the wires.
- Compare the two parts side by side and inspect the vehicle connectors. Resolve any damaged connections or wiring before connecting the replacement control unit.
- Connect the replacement part’s connectors without using force and check that the locks are properly secured.
- Position the control unit so that the wiring is not pinched or stretched. Secure it as specified without applying pressure to the cracked protective glass.
- Refit the trim, reconnect the battery according to the manufacturer’s procedure, and carry out any actions required by the service documentation after restoring power.
4) Post-installation checks and function verification
- Check that the panel is securely fitted, inspect the glass and ensure that no control is mechanically obstructed.
- Check the display and the response of all available buttons and rotary controls, according to the vehicle’s actual equipment.
- Test changes to the heating, ventilation and air conditioning settings under conditions that allow them to operate. Monitor the system’s response, not just the changes shown on the display.
- If a short test drive is necessary, operate the controls safely without taking your attention away from driving. If the system fails intermittently, recheck the connections and continue with diagnostics.
5) Common installation errors and how to avoid them
- Choosing based on appearance alone: also compare the product number, connectors and control configuration.
- Pulling on the wires: release the connector lock first and handle only the connector body.
- Damaging the glass while pressing the panel into place: apply force to the solid parts of the housing, not the display.
- Pinched wiring or an unsecured connector: check the wire routing and ensure the locks click into place before final fastening.
- Replacing the part without identifying the cause of the fault: first rule out a problem with the power supply, wiring or other system components.
Reasons why the part may be damaged
The following causes of damage can generally occur with heater and air conditioning control units. The cause of the crack on this specific part is not stated in the documentation.
- Impact or pressure on the display can damage the protective glass or housing.
- Careless removal can break mounting points, damage connectors or put strain on the panel.
- Ingress of moisture or cleaning products can cause contact corrosion and electronic faults.
- Prolonged use can wear out buttons, rotary controls and their contacts.
- Electrical system faults or improper handling while the power is connected can damage electronic components.
