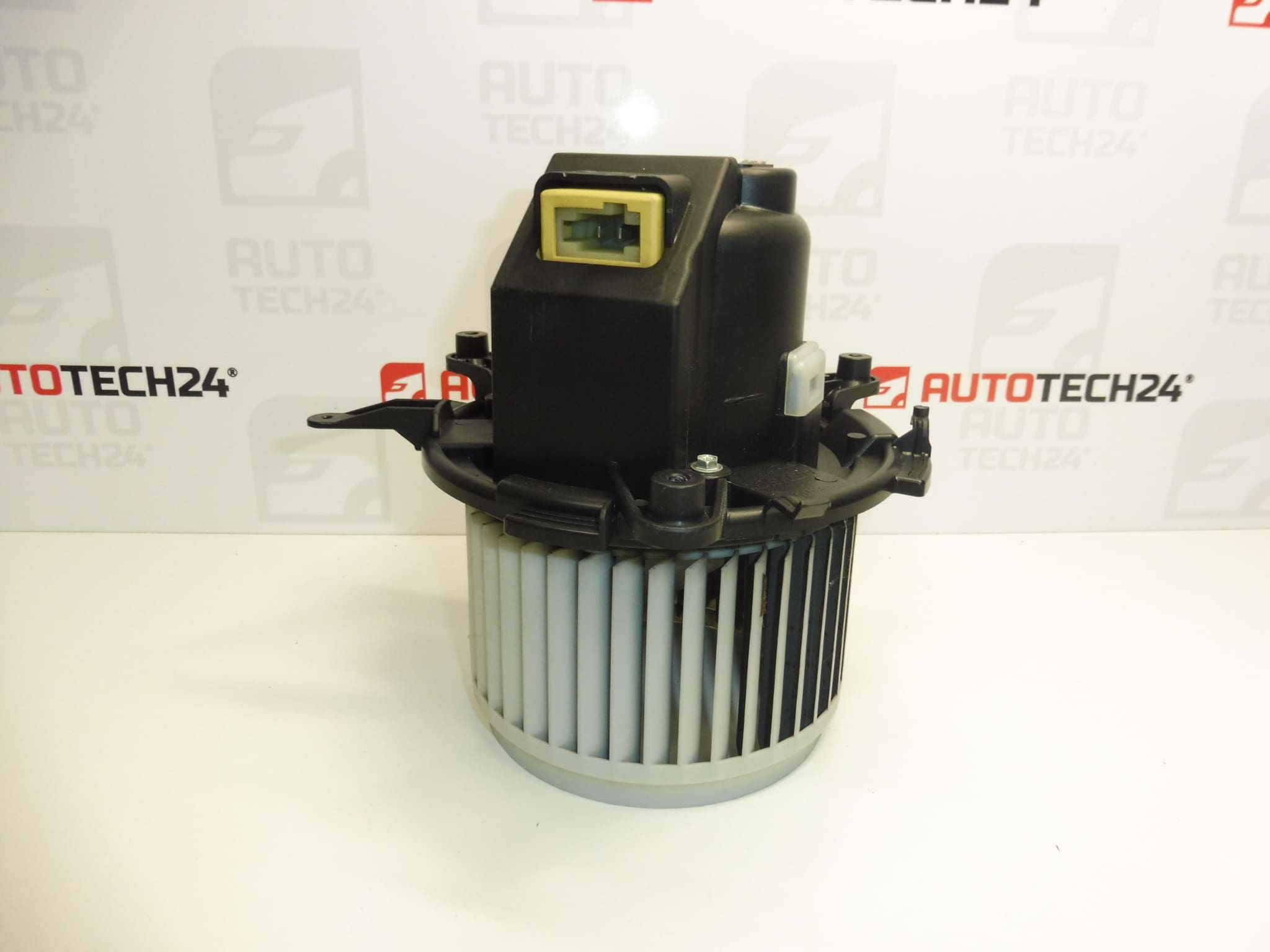

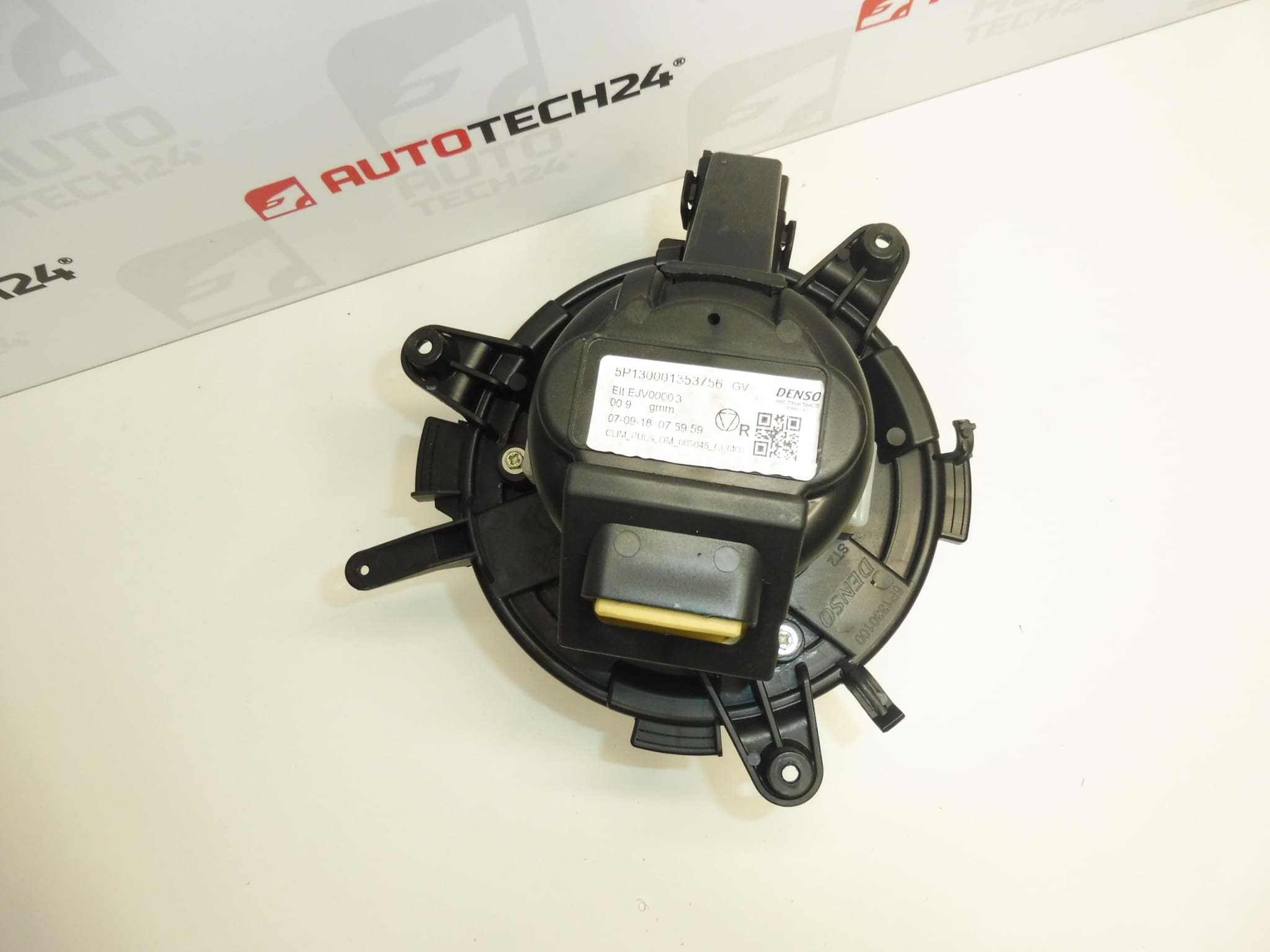

Citroën Peugeot heater fan 9821292180 9849717380

Description

Air conditioning fan for vehicles of the Stellantis group CITROEN PEUGEOT OPEL FIAT TOYOTA

Part description

The used Citroën Peugeot heater and air conditioning fan circulates air through the heating and air conditioning system into the cabin. Proper fan operation is important for passenger comfort and effective window demisting. As a replacement part, it may be a solution when the original fan is not working, is noisy, or runs intermittently, provided diagnostics confirm that the fan itself is faulty.

The part is listed under numbers 9821292180 and 9849717380. The available information assigns it to the Citroën Berlingo K9, OPEL COMBO E K9, PEUGEOT PARTNER III and PEUGEOT RIFTER models. When selecting a part, compare the original part number, connector design, housing shape and mounting points; the model name alone is not enough to determine the correct version.

Technical information

• Manufacturer: not specified; the available information lists the designation Stellantis CITROEN PEUGEOT.
• Model: Citroën Berlingo K9, OPEL COMBO E K9, PEUGEOT PARTNER III, PEUGEOT RIFTER.
• Part type: heater and air conditioning fan.
• Condition: used car part.
• Other numbers: not specified.
• Model years, engine options and electrical specifications: not specified.

Product codes

• Product codes: 9821292180, 9849717380.

Both numbers are listed for this product. Before installation, compare the markings and design with the original fan; the available information does not specify whether the different versions are interchangeable.

Installation recommendations

The following general procedure applies to this type of part. The exact access to the fan, how to release it and how to disconnect the electrical system depend on the specific vehicle model and version. Follow the manufacturer’s service procedure.

1) Before installation

• First, verify the cause of the fault. A non-functioning ventilation system may also be caused by the power supply, fuse, wiring, speed control or controls, and not just the fan.
• Compare the product number, connector, number and arrangement of contacts, housing dimensions, impeller and mounting points with the old part.
• Inspect the used part: check for cracks, damaged blades, dirt, signs of moisture and the condition of the contacts.
• With the power disconnected, carefully check that the impeller turns freely without catching or touching the housing. Do not apply force to the blades.

2) Tools and materials required

• Standard hand tools suitable for the fasteners used, and plastic trim tools for carefully releasing trim.
• A flashlight, protective gloves and a container for small fasteners.
• A vacuum cleaner, soft brush and clean cloth for removing dirt from accessible areas.
• A suitable measuring instrument for checking the electrical circuit, if performed by someone familiar with automotive electrical systems.

3) Step-by-step installation procedure

1. Secure the vehicle to prevent movement, switch off the ventilation and ignition, and follow the manufacturer’s instructions for safely disconnecting the battery, including any required waiting periods.
2. Access the fan according to the service procedure. Release covers and trim using suitable tools without forcing them.
3. Before disconnecting anything, note the wiring route, connector position and orientation of the original part.
4. Release the connector lock and disconnect it by pulling on the connector body, not the wires. Check for signs of scorching, corrosion or loose contacts.
5. Support the fan and release its fasteners as specified by the manufacturer. Protect the impeller and surrounding components when removing it.
6. Clean the accessible mounting area and remove leaves or other foreign objects. Also check the cabin filter, if the vehicle is equipped with one, and look for signs of water ingress.
7. Compare the removed part with the replacement again. If the connector or mounting differs, stop the installation; do not modify the wiring or housing to force the part to fit.
8. Position the replacement fan in the correct orientation. If a seal is fitted at the mounting point, check its condition and ensure it is seated correctly.
9. Secure all fasteners according to the manufacturer’s procedure. Avoid overtightening fasteners in plastic components.
10. Connect the connector until it locks into place and route the wiring along its original path, away from moving parts and areas where it could be pinched.
11. Refit the removed covers and trim, remove the tools and restore the power supply according to the vehicle manufacturer’s instructions.

4) Post-installation checks and function verification

• With the vehicle stationary, test the available fan speeds or adjustment range. The fan should respond to the controls without cutting out.
• Listen for scraping, knocking or unusual whistling, and check for vibration.
• Check the airflow from the vents and the demisting function. Fan operation alone does not confirm that the entire heating or air conditioning system is working properly.
• If you smell overheating or the fan runs erratically, switch it off and find the cause. Only carry out a short test drive after successfully checking it while stationary and ensuring visibility is clear.

5) Common installation mistakes and how to avoid them

• Replacing the fan without checking the cause: also check the power supply and controls first to ensure the replacement does not address a different fault.
• Leaving dirt in the mounting area: clean the accessible area before installation; otherwise, the impeller may become noisy or jam.
• Damaging the blades during handling: hold the part by its housing and do not rest its weight on the impeller.
• Incorrectly seated mounting or seal: check that it is seated correctly before tightening to help prevent vibration and air leaks.
• Connecting to a damaged connector: have scorched or loose contacts professionally repaired first; replacing the fan alone will not resolve this issue.

Reasons why the part may become damaged

The following causes of faults may generally occur with heater and air conditioning fans; they do not describe the known condition of this specific part:

• Wear to the motor and its bearings due to prolonged operation, which may result in noise, play or intermittent operation.
• Foreign objects entering the impeller, causing scraping, imbalance or blade damage.
• Moisture and water ingress, which may cause corrosion of the contacts and internal motor components.
• Impeller blockage and subsequent motor overheating.
• Faulty electrical connections, especially loose or oxidized contacts, which may overheat locally.
• Rough handling or incorrect installation, which may crack the housing, deform the impeller or damage the mounting points.
