Description
Product Overview

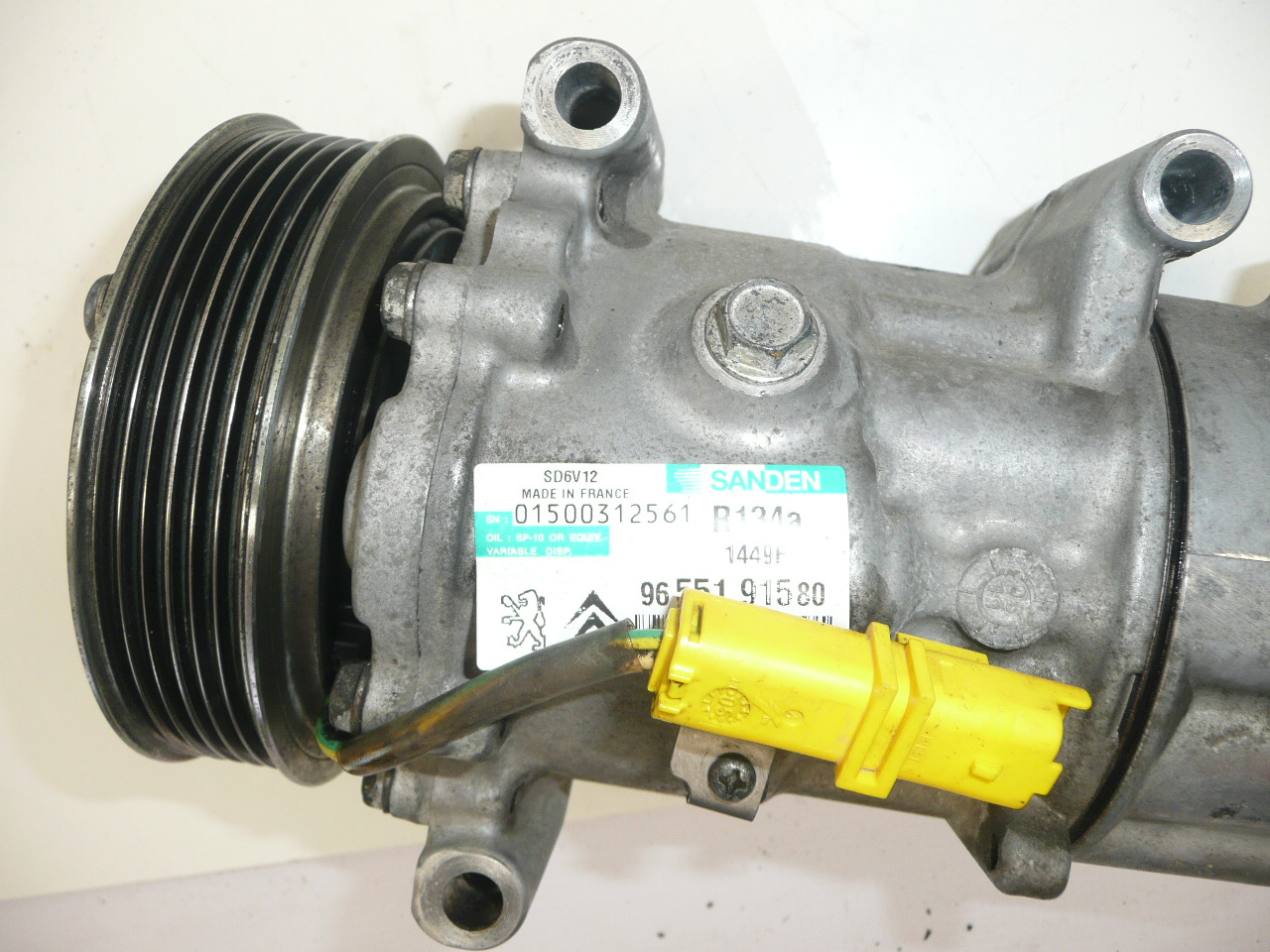

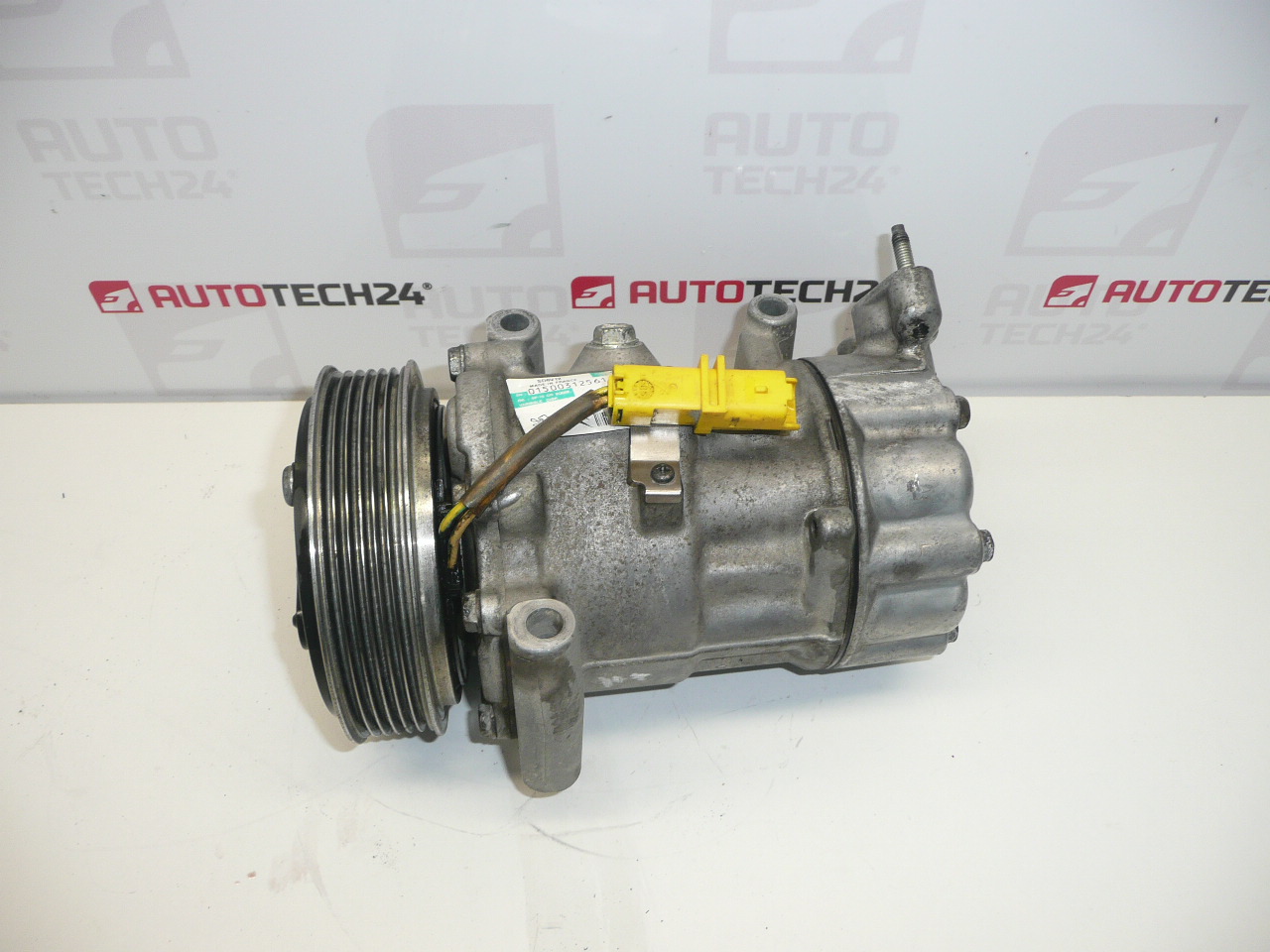

Air Conditioning Compressor designed as a direct-fit replacement for Citroën and Peugeot vehicles. The Sanden SD6V12 1449F (part number 9655191580) delivers reliable cooling performance for professional workshops and experienced DIY technicians. This unit is frequently searched by its product number and fits multiple PSA models.
Features & Function
The compressor compresses refrigerant from low to high pressure to drive heat exchange in the vehicle air conditioning system, enabling effective cabin cooling. It includes the pulley and clutch interface required for belt-driven A/C systems and matches factory mounting points for straightforward installation.
Common Faults And Maintenance
Typical causes of compressor failure include bearing wear, clutch malfunction, contamination within the refrigerant circuit, or oil loss due to leaks. Symptoms are abnormal noise from the compressor, loss of cooling, intermittent clutch engagement, or visible oil at the unit. Proper system maintenance and timely repair of leaks help extend service life.
Installation Notes
- Intended for professional garages and experienced DIYers. General replacement steps: recover refrigerant with appropriate equipment, disconnect the battery, remove the drive belt, unplug electrical connectors, remove compressor mounting bolts and extract the unit, install the replacement, renew O-rings and seals, refill with specified oil and evacuate and recharge the A/C system.
- Use the correct lubricant and volume to ensure longevity: PAG 46 oil, fill volume as specified in the technical data.
- When replacing the compressor, inspect the condenser and receiver/drier for contamination and replace filters or driers if necessary to avoid premature failure of the new unit.
Technical Information
- Manufacturer: Sanden
- Model: SD6V12 1449F
- Product Codes: 9655191580, 9684480180, 9684480480, 9800822280, 9646273380, 9646273880
- Other Numbers: 6453LS, 6453JL, 6453JP, 6453KS, 6453LF, 6453LH, 6453LN, 6453QE, 6453SC, 6453QF, 6453YL
- Oil Type: PAG 46
- Oil Fill Volume (ml): 135
- Pulley Diameter (mm): 119
- Number Of Ribs: 6
- Number Of Mounting Holes: 4
- Typical Fitment: Citroën and Peugeot models including 206, 307, Berlingo, Partner, C2, C3, Xsara, Xsara Picasso
Compatibility And Notes
This Sanden SD6V12 compressor is designed as a direct-fit solution for a range of PSA platforms. Always verify compatibility using the vehicle VIN, original part number or OEM cross-reference before ordering. For safe handling and correct system servicing, refrigerant recovery, evacuation and recharge should be performed with the appropriate equipment by qualified personnel.
