Description

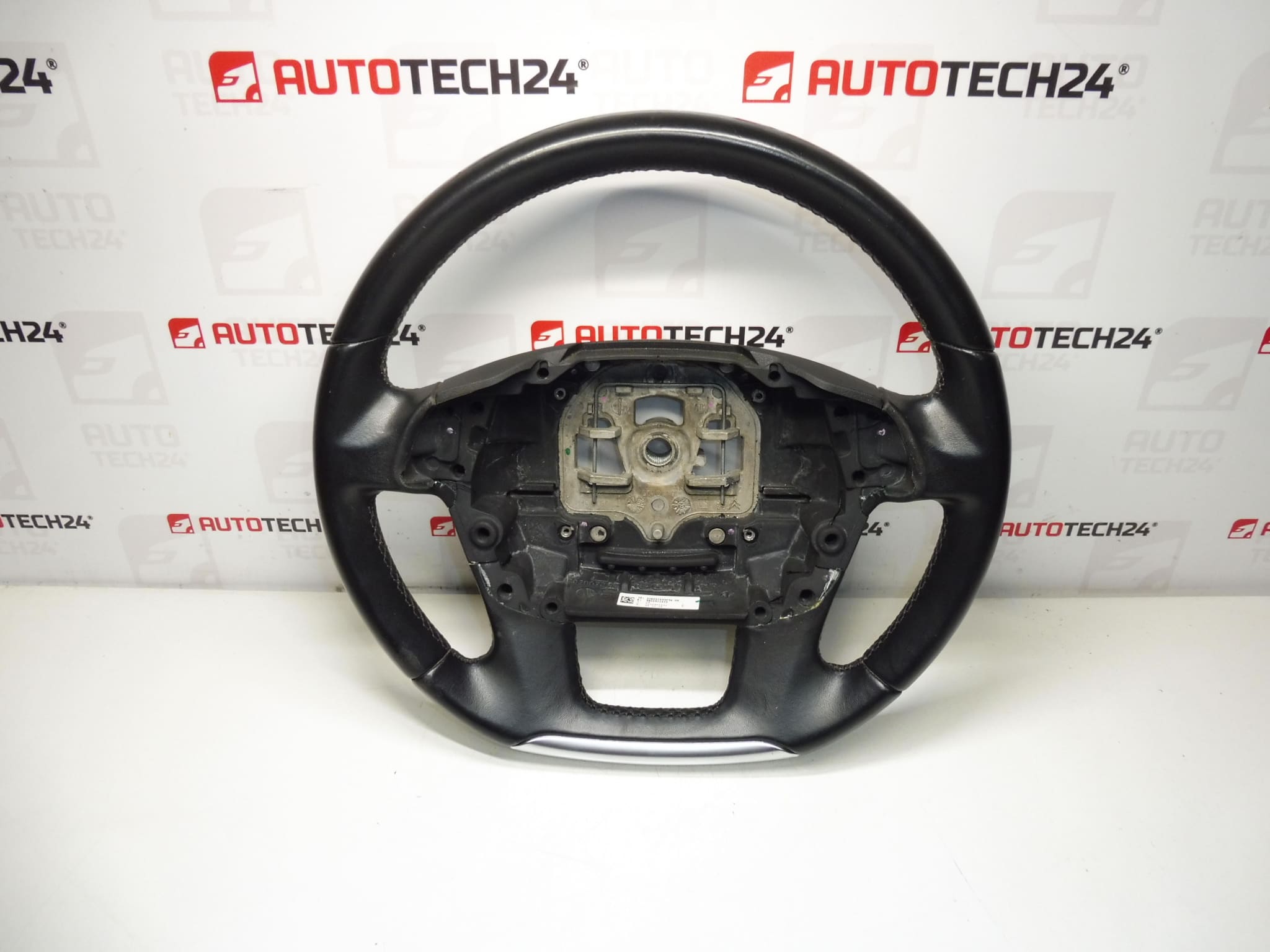

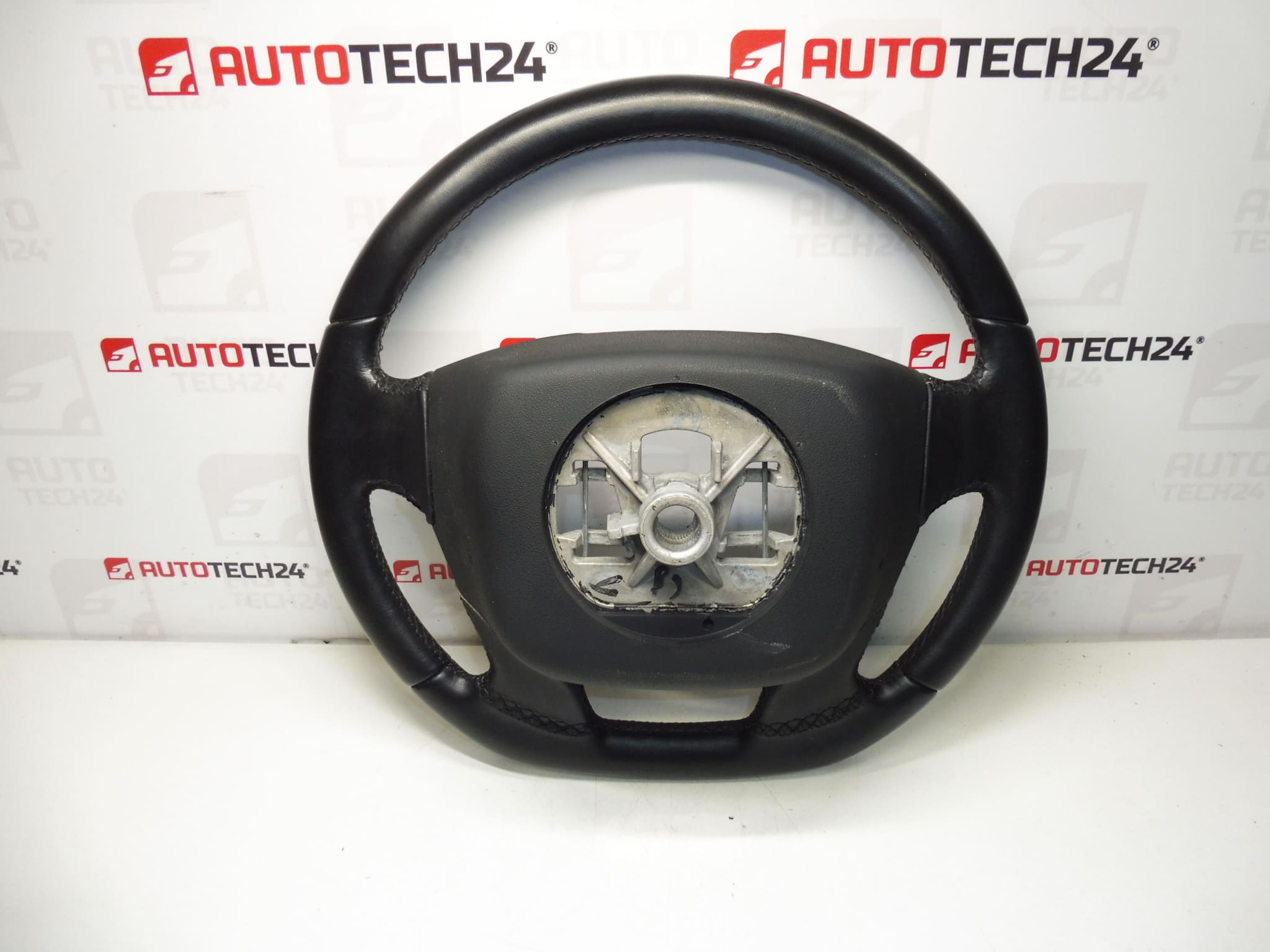

Steering wheel for Citroën C4 II and DS4 without integrated VMF controller – it can be purchased separately. Lower part of the steering wheel in non-perforated leather. Split leather – L037. Trim – Black Mistral.
Overview
OEM steering wheel compatible with Citroën C4 II and DS4 models. The wheel features a non-perforated lower leather section with split leather finish (L037) in Black Mistral. Suitable for technicians and DIY enthusiasts looking for a direct-fit replacement or interior upgrade. Commonly sought by part numbers 98039712ZD / 96700162ZD / 4109QT.
Key Benefits
- Direct OEM fit for Citroën C4 II and DS4 — ensures correct alignment with steering column and airbag mounting.
- High-quality leather finish on the lower section for a factory-like appearance and tactile comfort.
- Compatible with vehicles where the VMF controller is not integrated; VMF module may be purchased separately if required.
- Good option for repair shops and individual mechanics seeking cost-effective replacement with original styling.
Technical Information
- Manufacturer: Stellantis (Citroën / Peugeot)
- Model: Citroën C4 II; DS4
- Product Codes: 98039712ZD, 96700162ZD, 4109QT
- Additional Numbers: Not provided
Function And Fitment
The steering wheel provides the primary driver interface for vehicle direction control and serves as the mounting point for the driver airbag, horn and steering-mounted controls (when present). This unit is supplied without the integrated VMF controller, so vehicles requiring that module will need it fitted separately. Fitment is intended for the specified Citroën models; installation should align the wheel spline marks to preserve steering alignment.
Replacement Procedure (General Guidance)
Only perform the replacement if you are trained and equipped for airbag and steering work. Typical steps:
- Disconnect the battery and wait an appropriate time to ensure airbag circuits are discharged.
- Center the front wheels and steer the column straight ahead; mark the wheel-to-column alignment.
- Remove the airbag module following manufacturer’s access method (fasteners behind the wheel or through spokes) and disconnect electrical connectors carefully.
- Remove the central retaining nut/bolt, slide off the old wheel, noting spline alignment and any position marks.
- Fit the replacement wheel onto the spline, align marks, tighten the retaining nut/bolt to manufacturer torque specification, reconnect airbag and steering controls.
- Re-connect the battery and carry out any required steering angle sensor calibration and system checks using appropriate diagnostic equipment.
Installation Recommendations
- Always disconnect the battery before starting work and follow the vehicle manufacturer’s recommended procedures to avoid damage and ensure safety.
- Handle airbag modules with care; store face up and avoid impact, heat or static discharge near connectors.
- Ensure steering wheel spline alignment to prevent steering geometry and ABS/ESP sensor errors; recalibrate steering angle sensor where required.
- Use proper torque values from the vehicle manual for the steering wheel retaining fastener.
Why This Part Fails Most Often
- Wear And Tear: Leather abrasion, worn stitching and surface degradation from prolonged use, hands, oils and UV exposure.
- Airbag Deployment: After deployment the wheel usually requires replacement due to deformation and safety regulations.
- Mechanical Damage: Impacts, improper removal or forcing during repairs can crack the rim or damage mounting points.
- Electrical/Wiring Issues: Faulty or worn clock spring (spiral cable) or connector damage can cause horn and steering controls to lose function even if the wheel itself appears intact.
Notes For Professionals
This steering wheel is primarily intended for professional fitment environments and experienced DIYers. Verify part codes and visual match with the vehicle’s existing wheel prior to installation. After fitting, confirm full functionality of airbag, horn and any steering-mounted switches, and perform any required recalibrations with appropriate diagnostic tools.
