Description

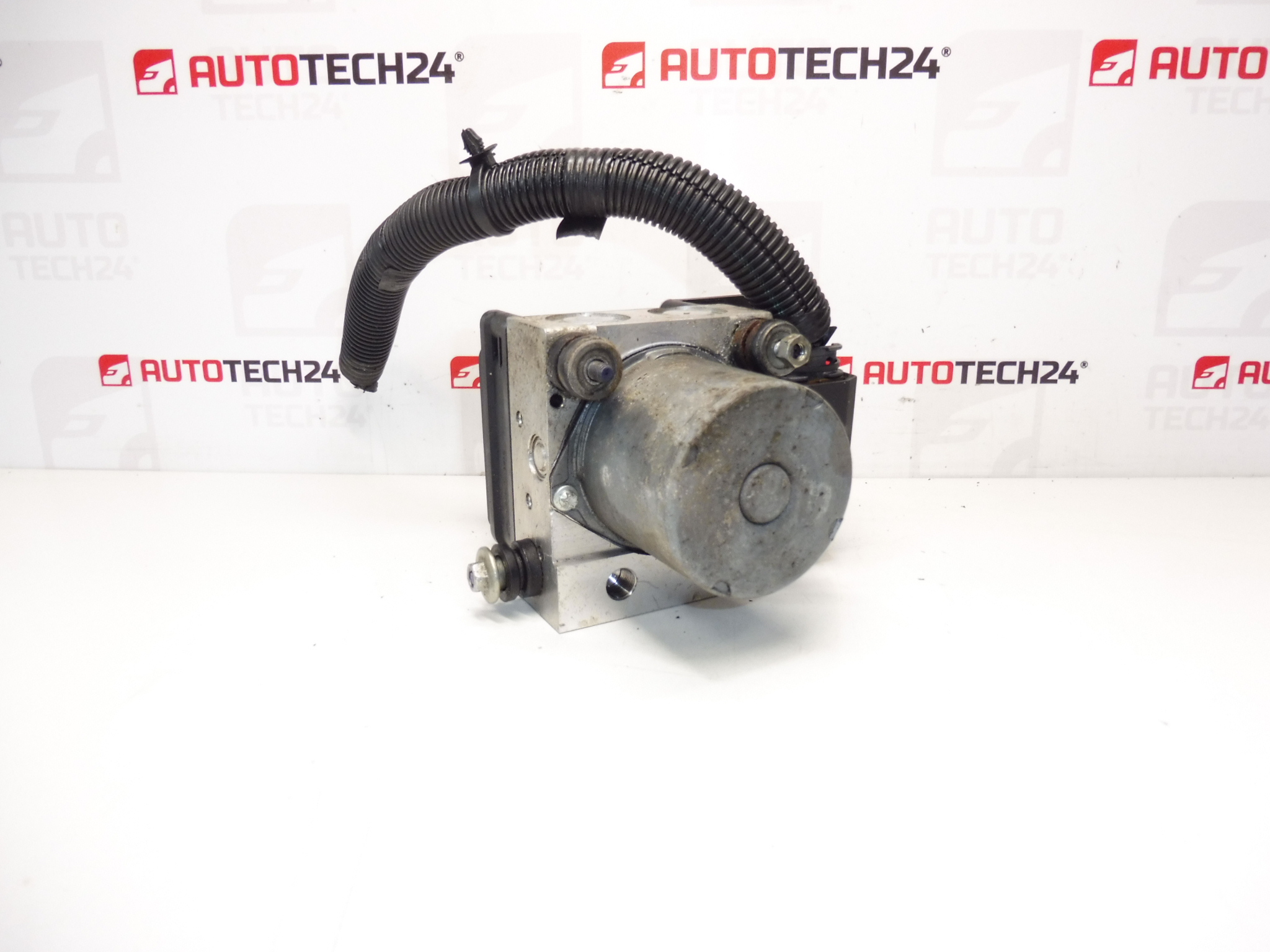

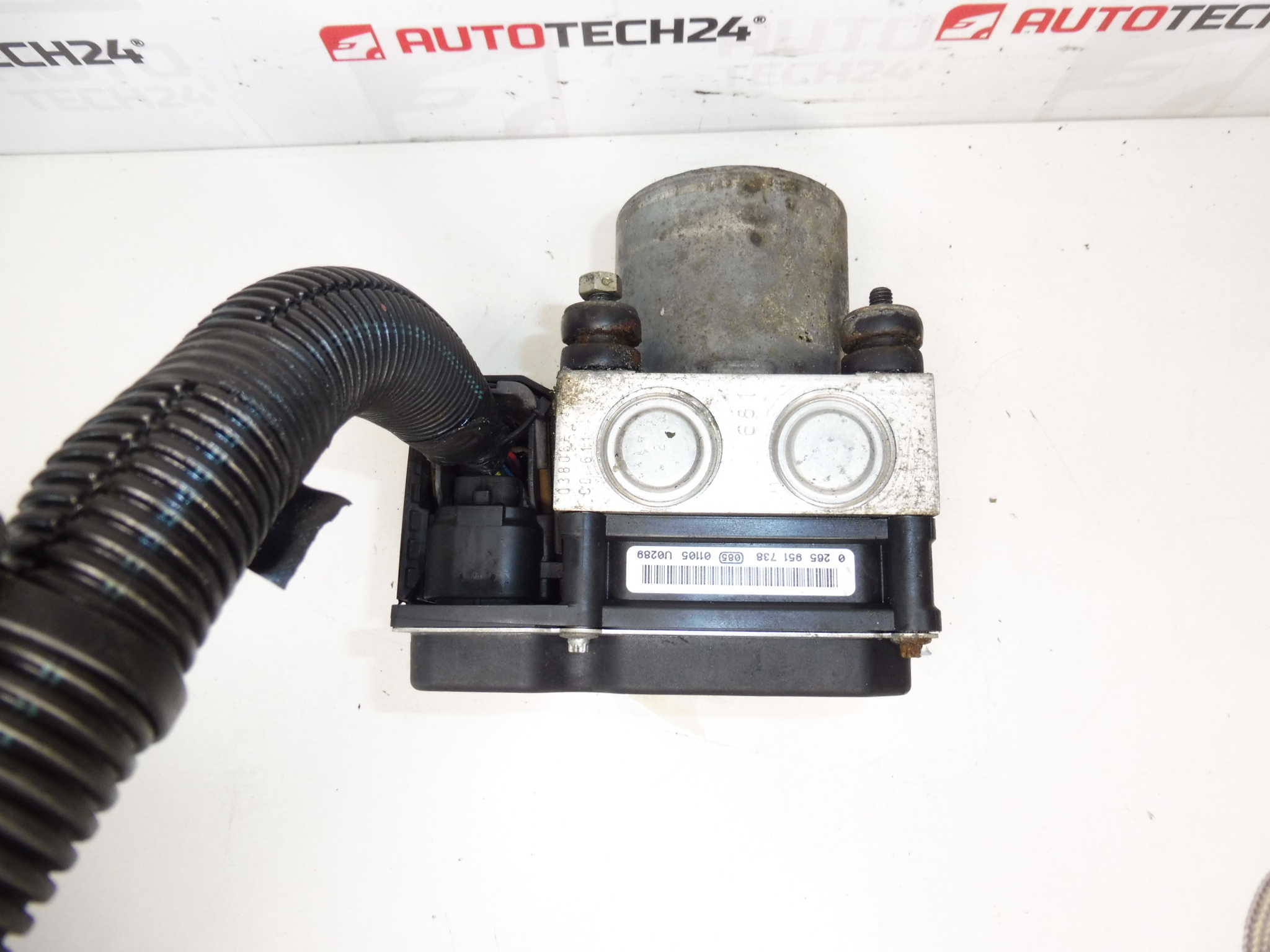

Control module, ABS pump, unit, cube ABS ATE
From 2011 Peugeot 5008 1.6 EHDI 9hr with robotic transmission
Tested fully functional
ECU/control unit and hydraulic block ABS/ESP for Peugeot 3008 I and 5008 I. Complete “ABS cube” including pump – ideal replacement for ABS/ESP errors, pump disorders or unit communication. It comes from the Peugeot 5008 1.6 E-HDI 9hr (2011) with a robotic transmission, the part has been tested and is fully functional.
This unit ensures the control of braking pressure and stabilization functions (ABS/ESP). Usually, ABS/ESP lights light up when failure, and a braking system failure is displayed on the dashboard. Typical manifestations are non -functional pump, internal defect of the control unit or loss of communication. Replacing the complete unit (ECU + Hydraulika) is the fastest way to restore a full function.
Compatibility: primarily for Peugeot 3008 I and 5008 I. The decisive is the match of the part and design of the car (motorization, gearbox, equipment – the presence of ESP, type of sensors). We recommend comparing all numbers listed on the label with your original work. This particular piece comes from version 1.6 E-HDI 9hr with robotized gearbox, but use is also possible for other variants if they agree codes.
Assembly recommendations: disconnect the battery before work, then replace the complete block and perform careful venting of the brake system (ideally with the activation of pumps and valves through diagnosis). For PSA cars, it is necessary to make telekoding/variant settings and any basic calibration (eg steering wheel sensor) in diagnostics diagnostics, especially if the software version or equipment configuration.
Status and origin: used original part removed from the car operated, tested – fully functional. Appropriate as a direct replacement of your non -functional module if they agree with the numbers.
Technical information
- manufacturer: bosch
- Model: ABS/ESP Module (ECU + Hydraulic Block, “Cube ABS”)
- Product codes: 0265951738, 0265230304
- Other numbers: 9674677580, 1607510480, 4541VX, 4541VY
Why choose this episode: Original solutions with certainty of proper functions and precise buildings, verified compatibility in valid codes and real operating piece from the PSA platform. If you have doubts, send us VIN or photos of your module label – you will check the match before assembly.
