Description
Right wing mirror CITROEN C5 from 2005, can also be used on models up to 2005
Electrically controlled, electrically foldable to the car, heated, temperature sensor
EYL color – ICELAND GRAY LACQUER
Passenger side

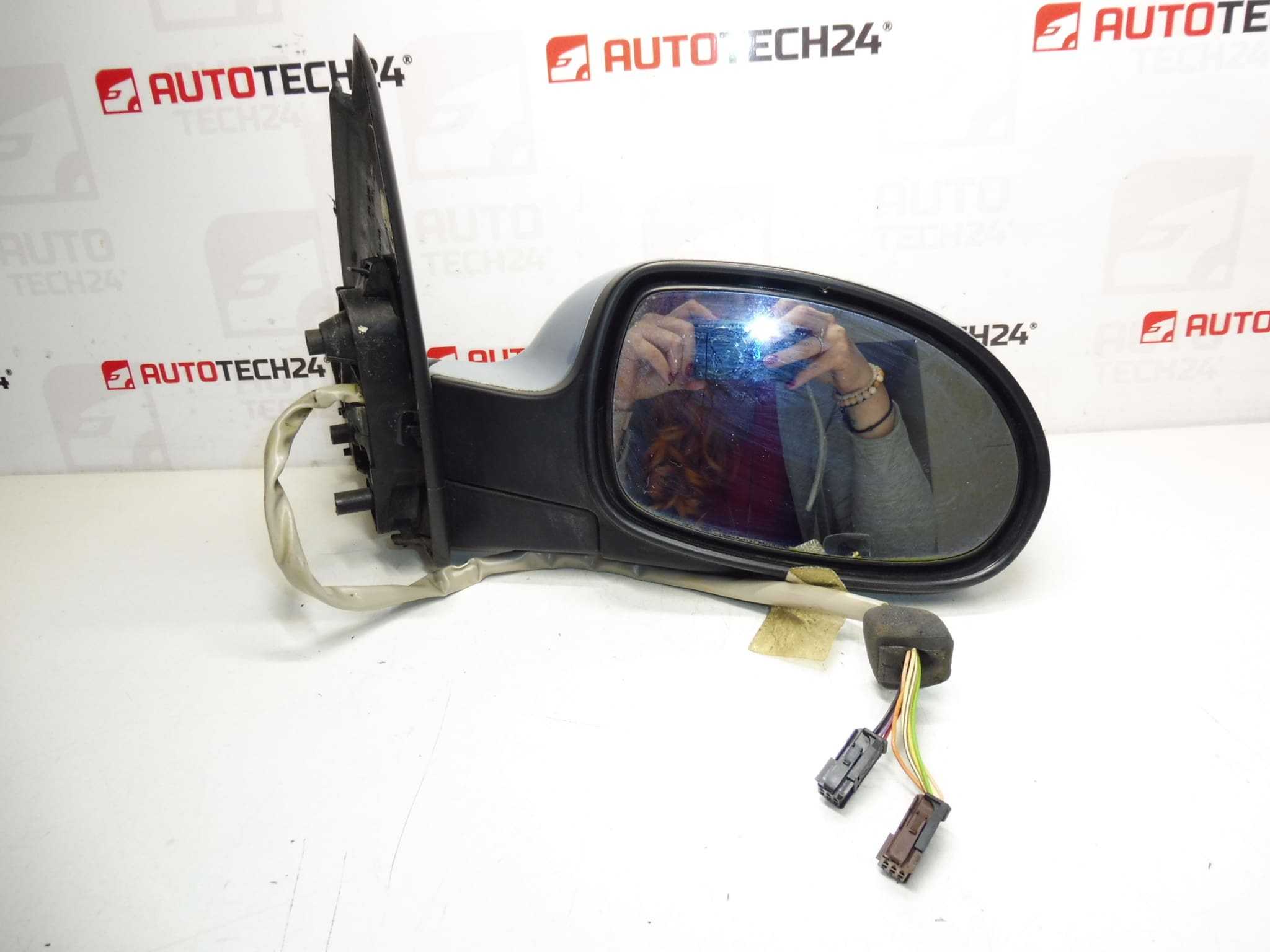

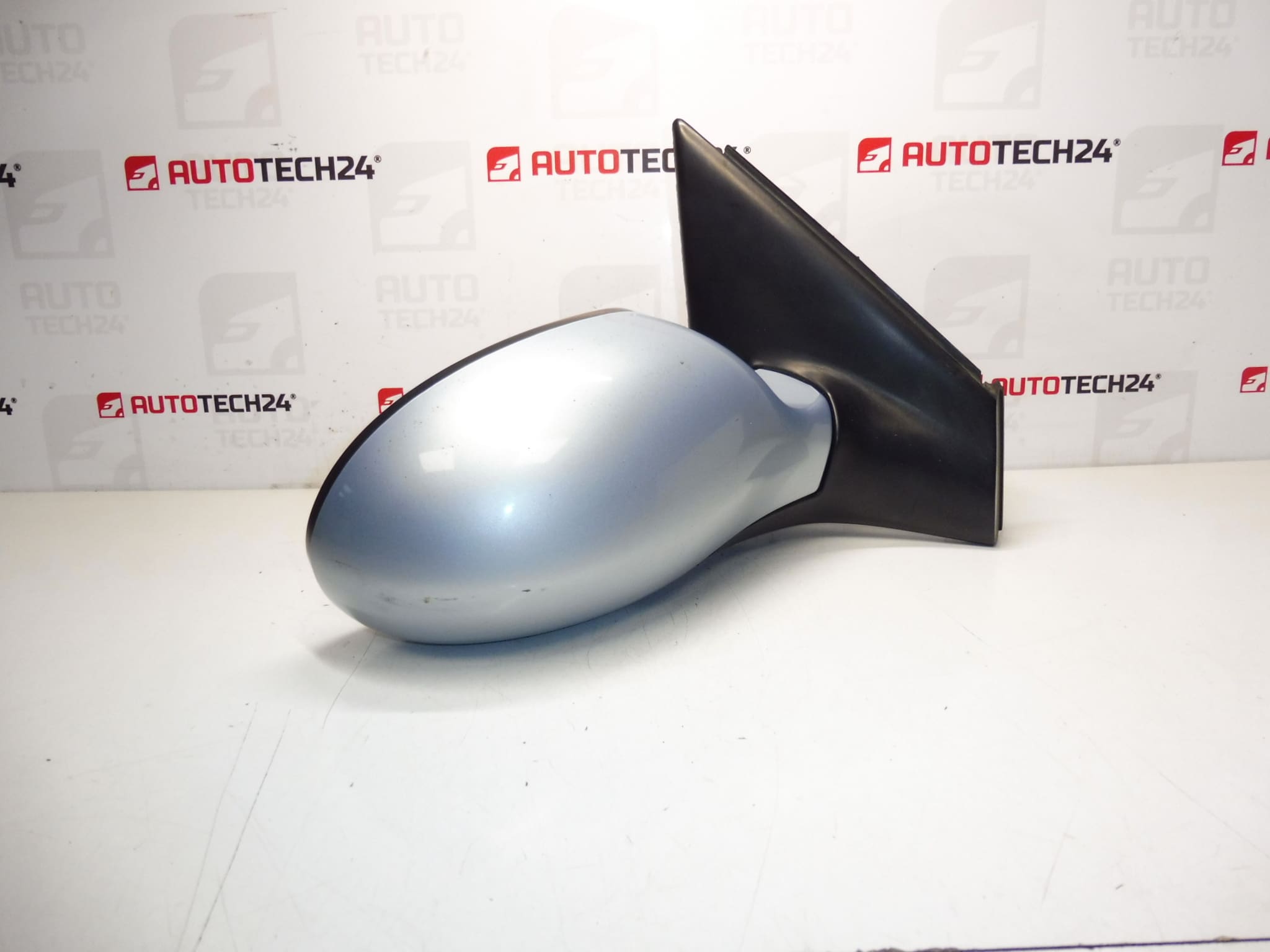

The right rearview mirror Citroën C5 is a complete original part suitable for Citroën C5 cars from 2005, with the possibility of use on older models up to 2005 (C5 I and C5 II). This is the right-hand, i.e. the passenger’s, rear-view mirror, which is electrically controlled and can be electrically folded towards the body. Thanks to heating and an integrated temperature sensor, it is ideal for daily operation even in more demanding weather conditions.
The mirror is in the original EYL color – Iceland gray (painted cover), which facilitates quick installation without the need for painting, if you have a car in the same color. It is suitable for replacing a damaged mirror if you need to keep electric folding, heating and outside temperature sensor function.
Technical information:
Manufacturer: PSA / Citroën – Peugeot
Model: Citroën C5 I, Citroën C5 II (from 2005, with the possibility of installation also for earlier years of production)
Side: right – passenger
Features:
– electric window control
– electric folding to the car
– heated mirror
– outdoor temperature sensor
Cover color: EYL – Iceland gray (lacquer)
Product codes:
– 96532993XT
– 532993XT
– 8149WH
– EYLC
Other numbers and designations:
– EYL (Paint Code – Iceland Grey)
Suitable use:
– replacement of the complete right mirror with the same equipment (electric folding, heating, temperature sensor)
– repair after an accident or mechanical damage
– maintaining the original appearance and functions of the Citroën C5
Installation recommendations:
– before removing the original mirror, disconnect the vehicle battery to avoid a short circuit when handling the wiring
– remove the inner plastic cover at the right front door pillar, gain access to the mirror fixing screws and to the wiring connector
– carefully disconnect the electrical connector, check that the number of pins and the shape of the connector match, and only then remove the old mirror
– when installing a new part, first only lightly tighten the screws, align the mirror to the body and then tighten the screws to the prescribed torque (do not overtighten to avoid cracking the plastic holder)
– after connecting the connector, reconnect the battery and test all functions: electric window adjustment, electric folding, heating and the correct display of the outside temperature on the on-board computer
– during assembly, make sure not to damage the painted mirror cover and the seal between the mirror and the door, so that water does not flow into the door
This part is suitable for auto mechanics and DIYers looking for a fully functional Citroën C5 right wing mirror with electric folding, heating and temperature sensor according to original codes 96532993XT, 532993XT, 8149WH and EYLC.
