Description

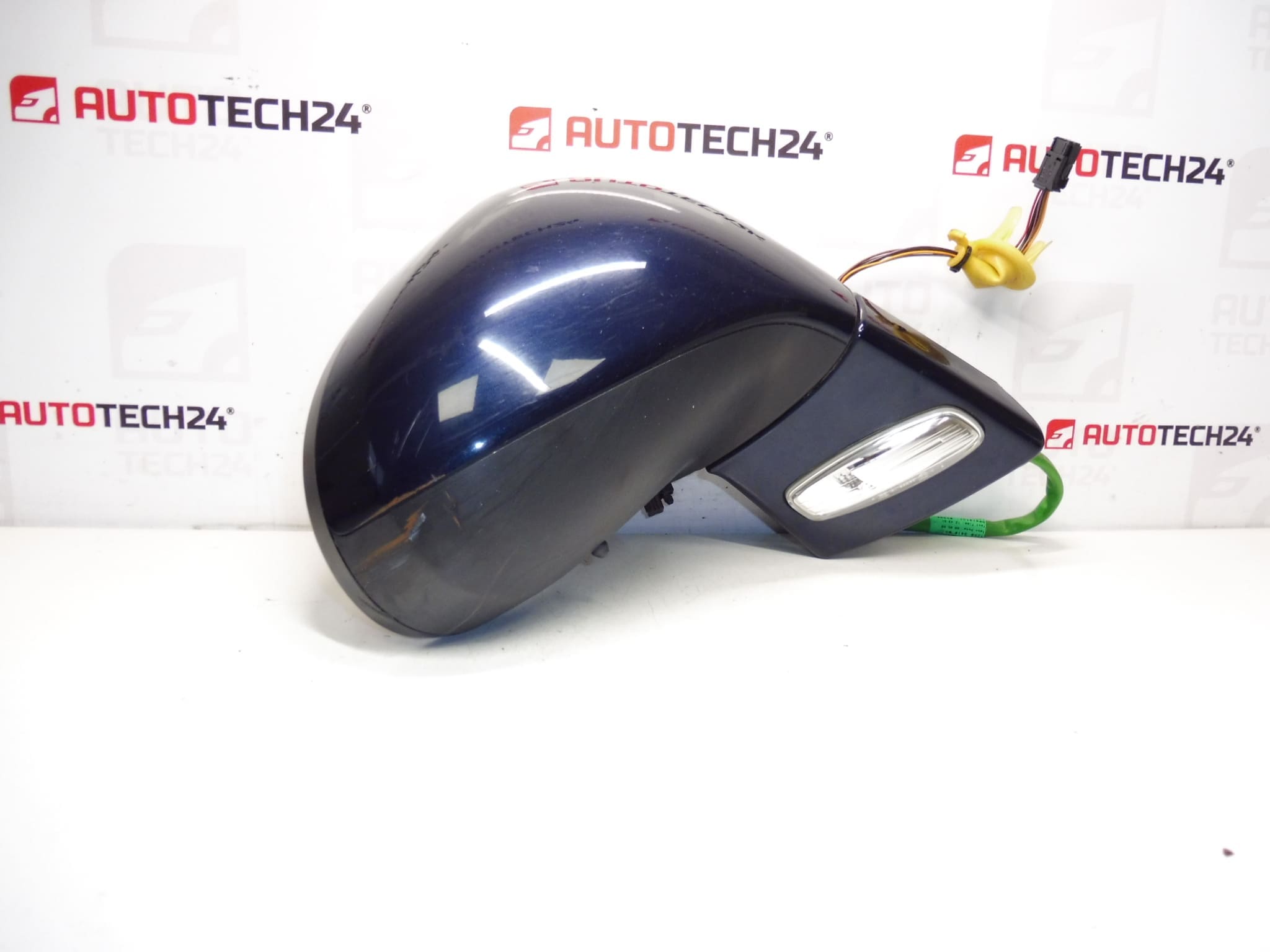

The right rear view mirror Peugeot 308
Electrically operated, temperature sensor
8 PIN (6+2)
KPS color – blue paint to make
A slightly scared color part
Right external rear -view mirror for 308 series. Electrically operated with integrated temperature sensor and 8 -pin connection (arrangement 6+2). The cover is in KPS (blue bleu to Abyss) and carries light cosmetic abrasions corresponding to normal use. Suitable as a substitute after mechanical damage, or as a quick replacement without painting, if you have the same color code.
Electric control ensures accurate adjustment from the driver’s location, the temperature sensor in the mirror is used to properly function automatic air conditioning and outdoor thermometer. 8 -pin connection (6+2) is typical for versions with a temperature sensor – before ordering, we recommend verifying the connector and equipment compliance so that all functions work correctly.
Fastening and shape correspond to the original part of the dog, so the mirror fits well into the original assembly points. The color cover in the KPS shade can be left, polished or painted; In the case of a different color of the car, the cover can be easily switched to your original.
The assembly is usually straightforward: on the inside of the door, the “triangle” cover is removed from the inside, the electrical connector is disconnected and three mounting screws/mirrors are loosen. Subsequently, the new part is deployed in the opposite order. Before the final tightening, we recommend that you try the electric control and function of the temperature sensor. For some versions, it may be necessary to slide the door filling over to access the connector.
The condition of the part: used part of disassembly, fully functional, with small abrasions on the painted cover (see description). Mechanics and attachment in order.
technical information
- Manufacturer: PSA Peugeot
- Model: 308 (selected version according to Part and Equipment code)
- product codes: 8153nc, 8153.NC
- additional numbers: kps (Bleu color code); 8 pin (6+2); right side (passenger)
Compatibility tip: Before ordering, compare the part number (OE code), number of pins in the connector, the presence of the temperature sensor and the shape of the fastening base. In case of uncertainty, we recommend verifying the conformity according to the VIN.
