Description
Overview

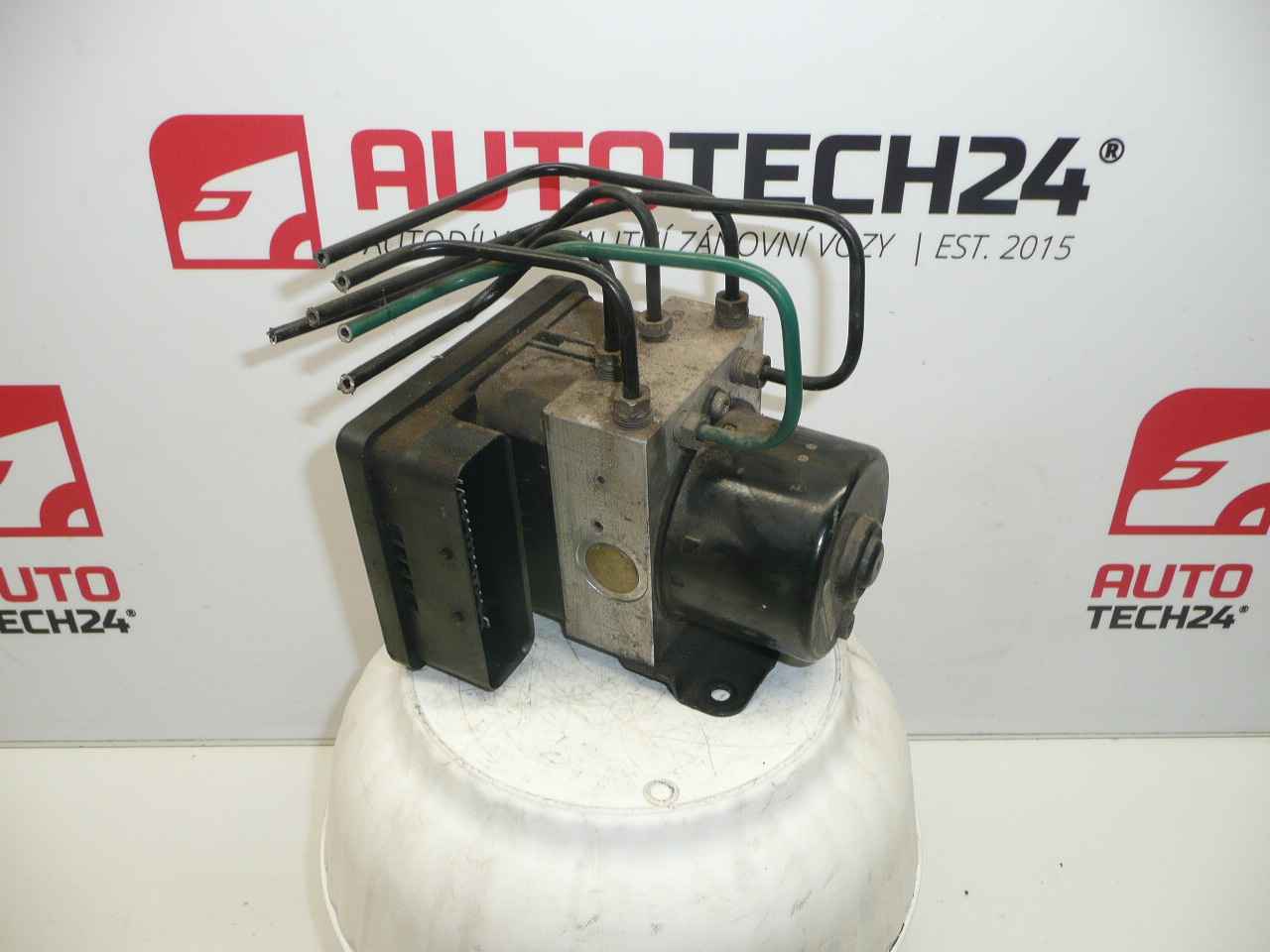

The ATE ABS Pump and Control Module for Citroën C5 I is a complete ABS/ASR hydraulic unit and electronic controller designed for PSA vehicles. This unit replaces the original equipment hydraulic block and electronic module to restore proper anti-lock braking and traction control operation on compatible Citroën and Peugeot models.
Key Features
- Direct fit for Citroën C5 I with OE number 9641767380 and cross-references 10.0960-1110.3 and 10.0206-0003.4.
- Complete assembly including hydraulic pump, valve block and electronic control module for ABS/ASR functionality.
- Designed for use in PSA Citroën and Peugeot braking systems where the listed OEM numbers are specified.
Symptoms Of Failure
Typical signs that the ABS pump or control module is failing include illumination of the ABS warning lamp, loss of ABS or ASR functionality, an irregular or soft brake pedal, and fault codes stored in the vehicle diagnostic system referencing the hydraulic unit. Failures commonly stem from electrical connector corrosion, internal motor wear, valve seizure or contamination in the brake fluid.
Replacement And Installation
Replacement should be carried out by professional technicians or experienced DIYers familiar with brake systems. Basic procedure: disconnect the negative battery terminal; depressurize and remove brake fluid from the master cylinder reservoir; disconnect electrical connectors and hydraulic lines; remove mounting fasteners and replace the unit. Reinstall lines and connectors, refill the brake fluid to specification and perform a full bleeding procedure. Use a compatible diagnostic tool to cycle the ABS pump during bleeding and to clear fault codes. Verify system operation before road testing.
Service Life And Causes Of Failure
Service life varies with usage and maintenance. Units commonly experience faults after extended mileage due to corrosion, contaminated brake fluid, electrical issues or internal wear of the pump motor and valves. Regular brake fluid changes and corrosion protection of connectors can help extend service life.
Technical Information
- Manufacturer: ATE
- Model: Citroën C5 I ABS Pump
- Product Codes: 9641767380

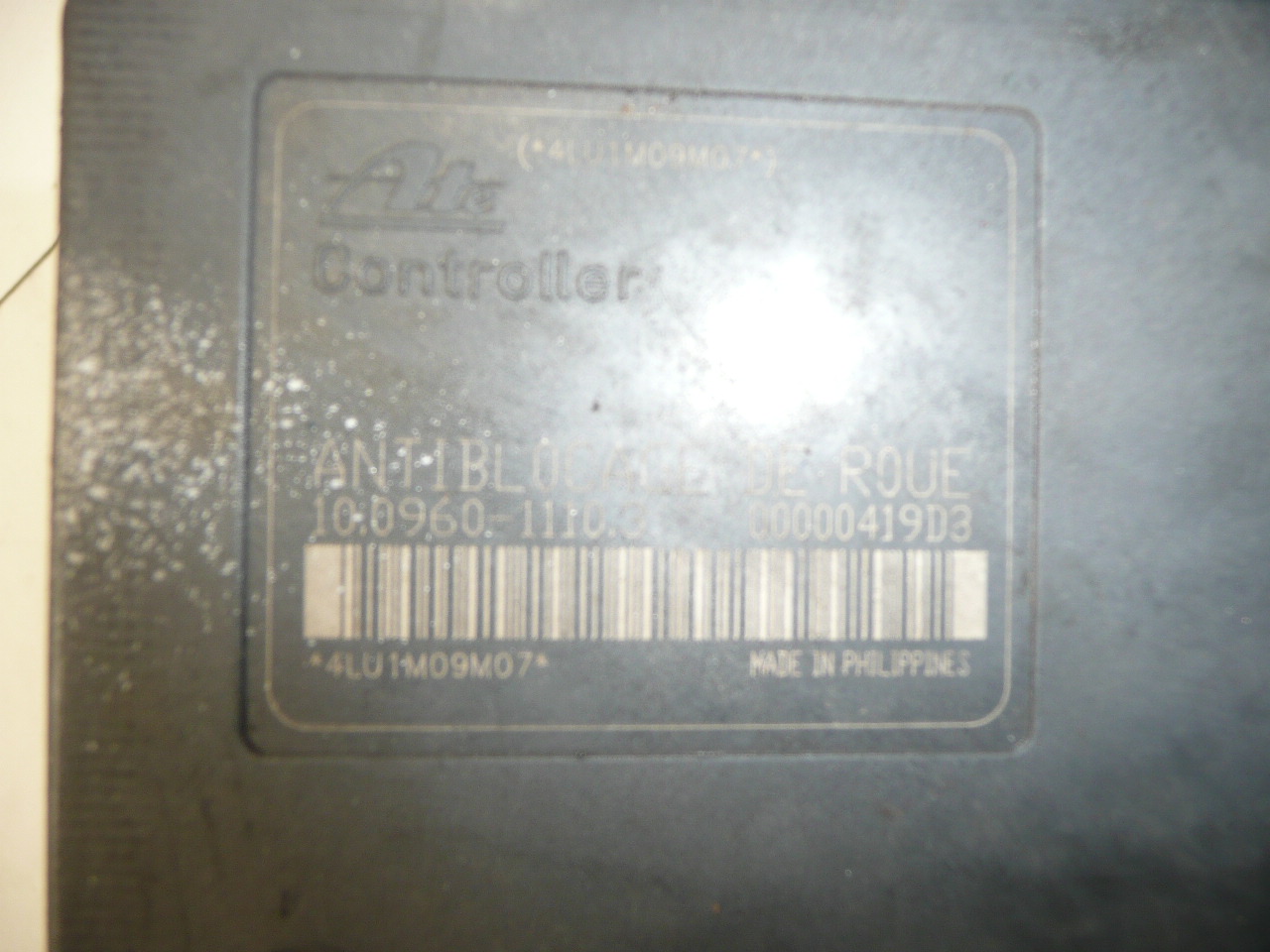

- Other Numbers: 10.0960-1110.3, 10.0206-0003.4
