Description

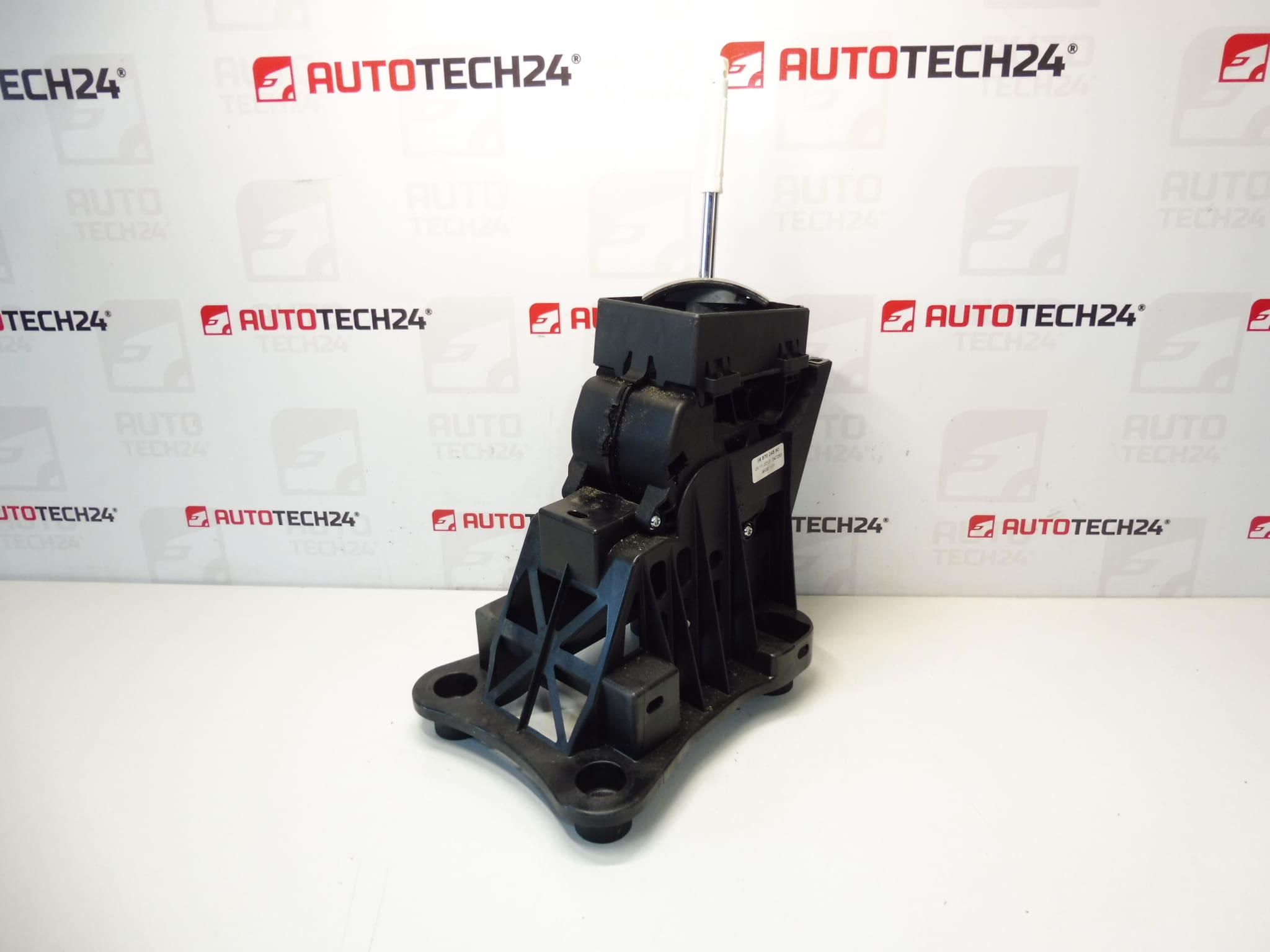

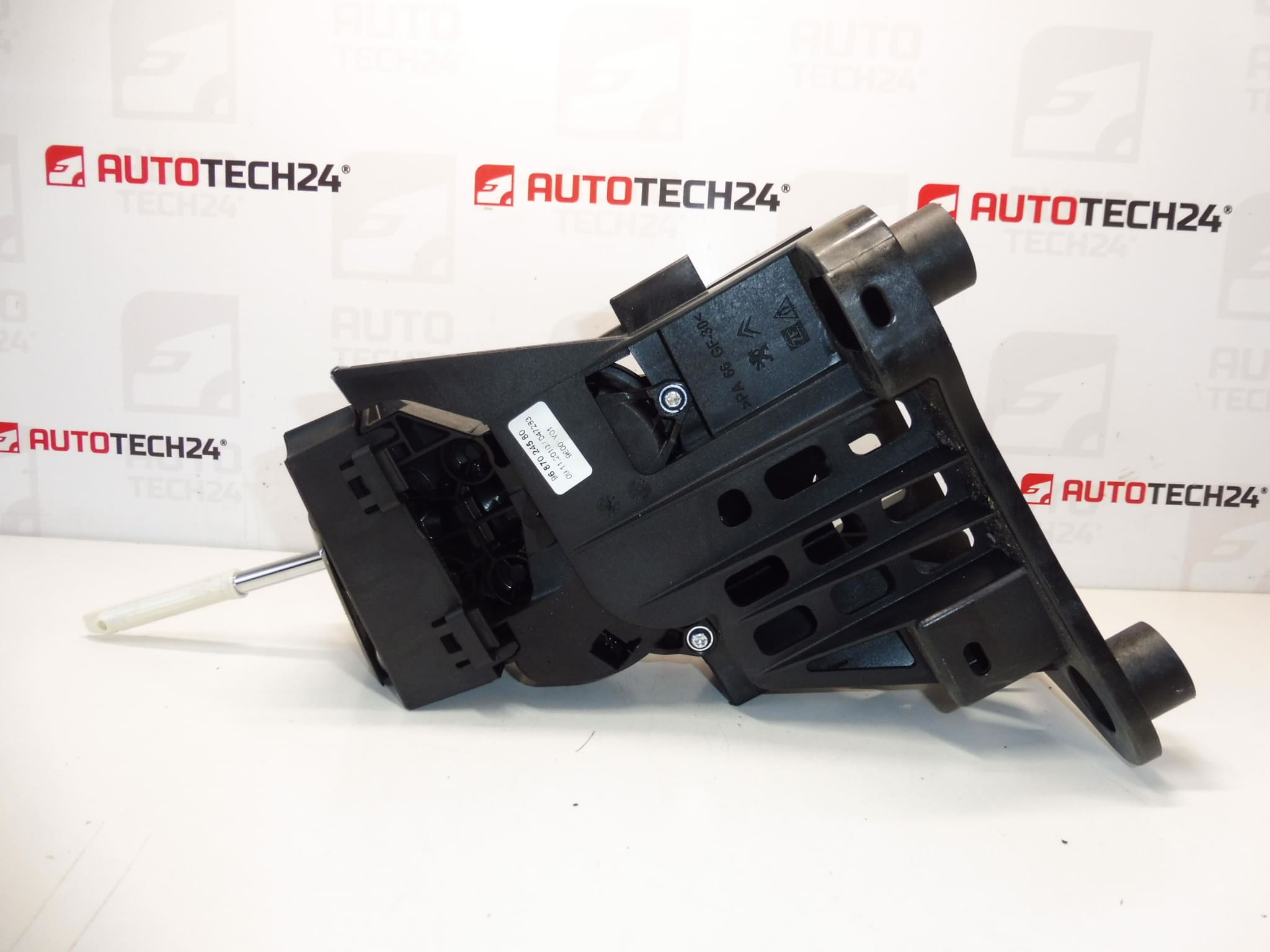

Shift lever, robotic gearbox selector for PEUGEOT 3008 and 5008 first generation cars
Robotic transmission controller/selector for Peugeot 3008 I and 5008 I. This is a complete shift module located in the central tunnel, which transmits the selection of driving modes (A/M, N, R) to the robotic transmission control unit. Thanks to the original PSA design, exact compatibility and correct function is ensured with the BMP6/ETG6 transmissions used in the first generation 3008 and 5008.
Typical symptoms of a defect in the original selector are impaired or irregular recognition of lever positions, the inability to engage A/M or R mode, a transmission error message or the need to move the lever more strongly due to worn microswitches. With these modules, mechanical wear of the latches and switches may show over time, or dirt or liquids may enter the body of the selector.
The replacement is usually straightforward: after dismantling the plastics of the central tunnel, the module is released from its fastening (usually Torx screws) and the multi-pole connector is disconnected. Subsequently, the spare part is installed and everything is reassembled. We recommend comparing part numbers and connector positions before assembly to ensure a full match.
For easy tracking and compatibility verification, we present the original PSA codes. When ordering, compare part number 9687024580 or catalog number 2400JR with your original part and verify that the car is equipped with a robotic 6-speed. BMP6/ETG6 gearbox.
Technical information
- Manufacturer: PSA Peugeot Citroën
- Model: Peugeot 3008 I (approx. 2009-2016), Peugeot 5008 I (approx. 2009-2016) – version with BMP6/ETG6 robotic transmission
- Product codes: 9687024580, 2400JR
- Other numbers: 2400.JR (alternative entry)
The original selector module is designed for long life and accurate sensing of lever positions. A properly functioning selector is essential for smooth starts, reliable shifting and safe shifting between A/M, N and R modes. If you are dealing with erratic transmission behavior, replacing the selector is usually a quick and effective step in addition to checking the actuators and calibrating the transmission.
